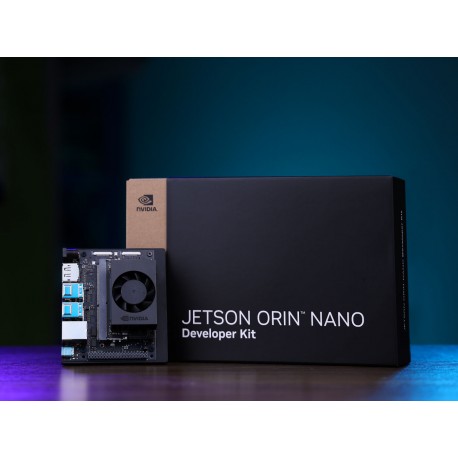

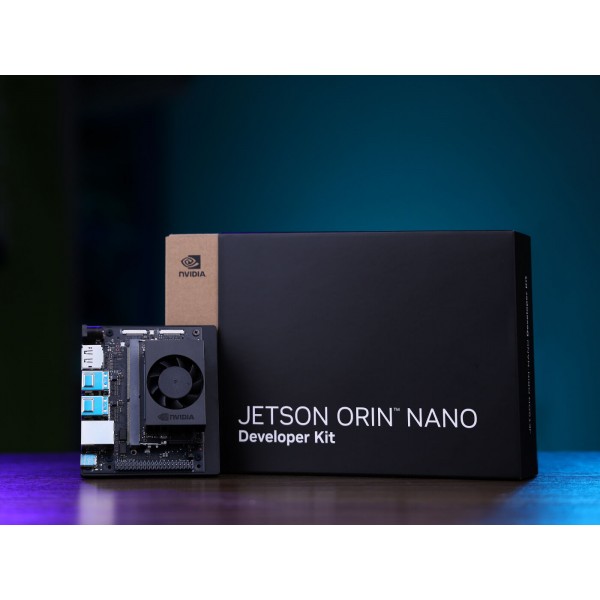

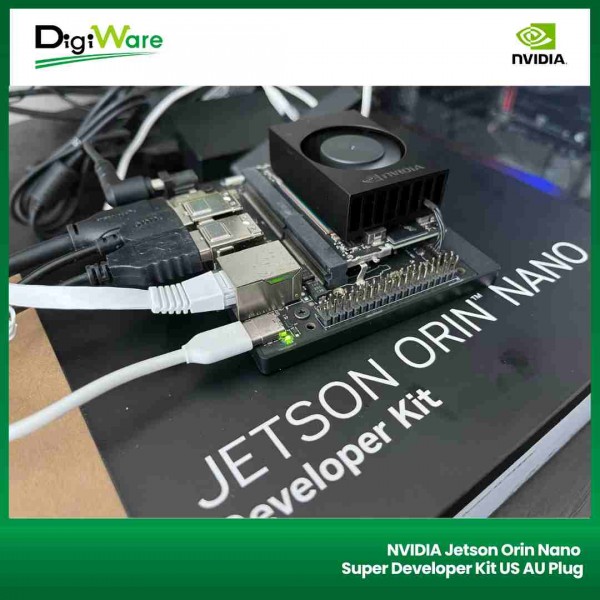

NVIDIA Jetson Orin Nano Super Developer Kit US AU Plug

The NVIDIA Jetson Orin™ Nano Super Developer Kit sets a new standard for creating entry-level AI-powered robots, smart drones, and intelligent cameras. It also simplifies the process of starting with Jetson Orin Nano Super series modules. Compact design, lots of connectors, and up to 67 TOPS of AI performance make this the perfect developer kit to bring your AI concepts to life. With up to 80X the performance of Jetson Nano, it can run all modern AI models, including transformer and advanced robotics models.

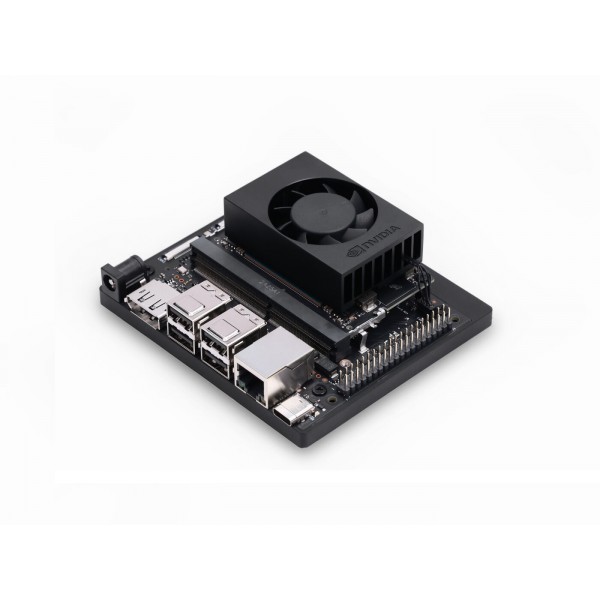

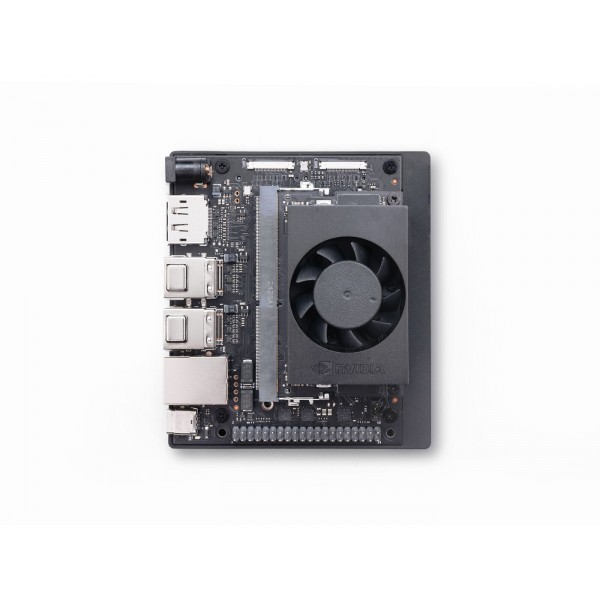

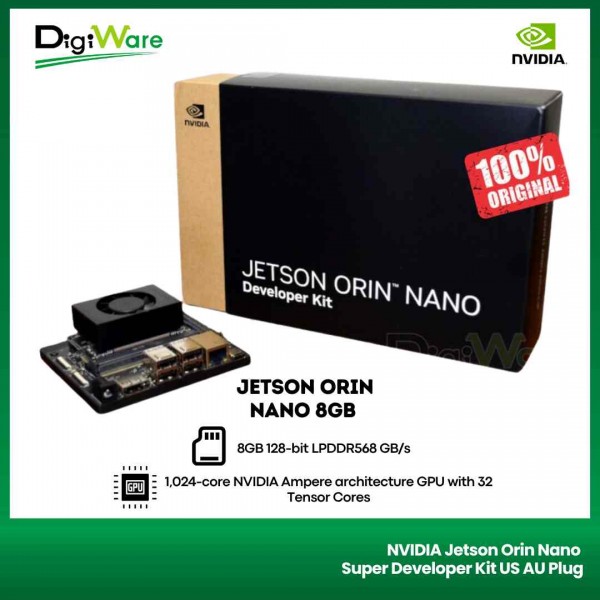

The developer kit comprises a Jetson Orin™ Nano Super 8GB module and a reference carrier board that can accommodate all Orin Nano and Orin NX modules. This provides the ideal platform for prototyping your next-gen edge-AI product. The Jetson Orin™ Nano Super 8GB module features an Ampere architecture GPU and a 6-core ARM CPU, enabling multiple concurrent AI application pipelines and high-performance inference. The carrier board boasts a wide array of connectors, including two camera connectors that can handle 2-lane and 4-lane cameras. For a full system which comes with a production module, 128GB SSD, and pre-installed Jetpack 5.1, check reComputer J3011

Features :

• Excellent AI Performance for production: on-device processing with up to 67 TOPS AI performance with low power and low latency

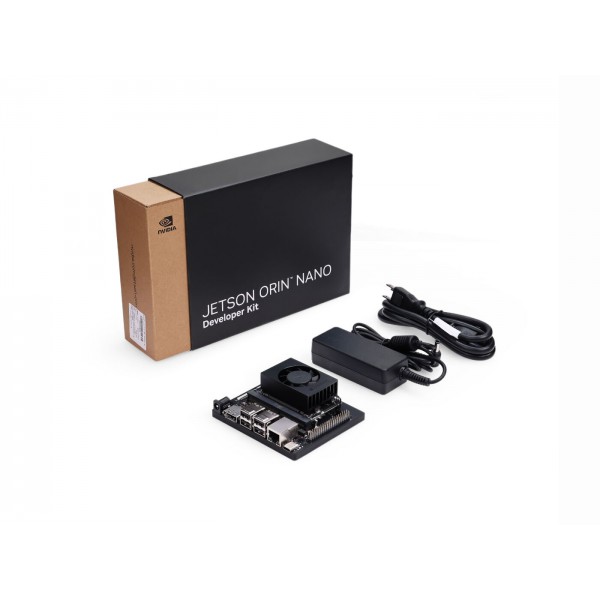

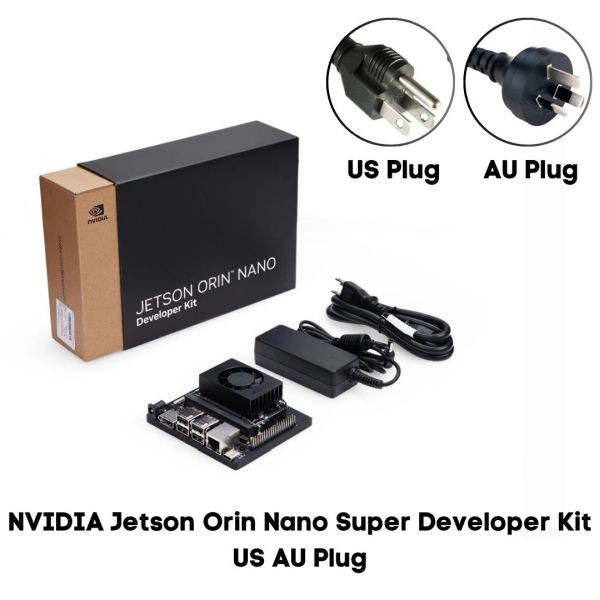

• Hand-size edge AI device: compact size at 100mm x79mm x 21mm, includes Jetson Orin™ Nano Super 8GB module, a heatsink with a fan and a power adapter.
• Expandable with rich I/Os: USB 3.2 Gen 2 ports(4x), DP 1.2, M.2 key E with pre-installed Wi-Fi module, 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2 connectors, Gigabit Ethernet, 40-pin GPIO

Developers Tools
NVIDIA JetPack for fast development and edge AI integration
Jetson software stack begins with NVIDIA JetPack™ SDK which provides a full development environment and includes CUDA-X accelerated libraries and other NVIDIA technologies to kickstart your development. JetPack includes the Jetson Linux Driver package which provides the Linux kernel, bootloader, NVIDIA drivers, flashing utilities, sample filesystem, and toolchains for the Jetson platform. It also includes security features, over-the-air update capabilities, and much more.

Computer Vision and embedded machine learning

• NVIDIA DeepStream SDK delivers a complete streaming analytics toolkit for AI-based multi-sensor processing and video and image understanding on Jetson.
• NVIDIA TAO tool kit, built on TensorFlow and PyTorch, is a low-code version of the NVIDIA TAO framework that accelerates the model training.

Speech AI

• NVIDIA® Riva is a GPU-accelerated SDK for building Speech AI applications that are customized for your use case and deliver real-time performance.

Robot and ROS Development

• NVIDIA Isaac ROS GEMs are hardware-accelerated packages that make it easier for ROS developers to build high-performance solutions on NVIDIA hardware. Learn more about NVIDIA Developer Tools

General Spesifications :

• AI Performance: Jetson Orin Nano 8GB with SD Card Slot on Module - 67 TOPS
• GPU: NVIDIA Ampere Architecture with 1024 NVIDIA CUDA Cores and 32 Tensor Cores

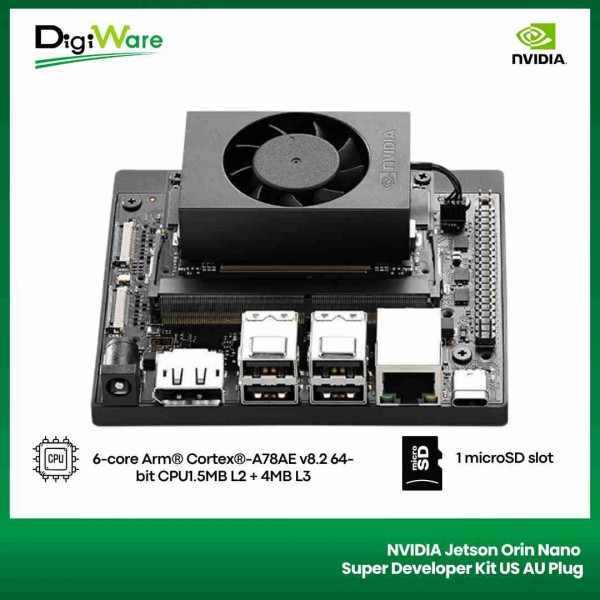

• CPU: 6-core ARM Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
• Memory: 8GB 128-bit LPDDR5 102 GB/s
• Video Encoder: 1080p30 Supported by 1-2 CPU Cores
• Video Decoder: 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x1080p30 (H.265)
• Power: 7W ~ 25W

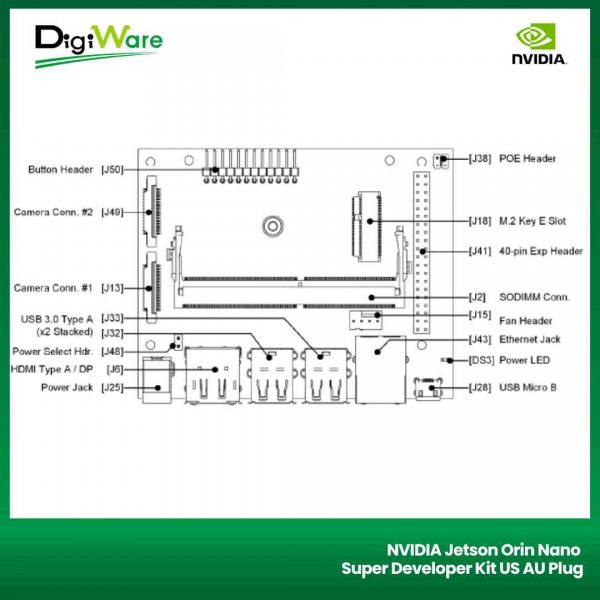

Carrier Board Specifications :

• Power Supply: 9V ~ 19VDC
• Storage: 1x MicroSD Slot (UHS-1 Cards up to SDR104 Model)
• Networking: 1x Gigabit Ethernet (10/100/1000M)

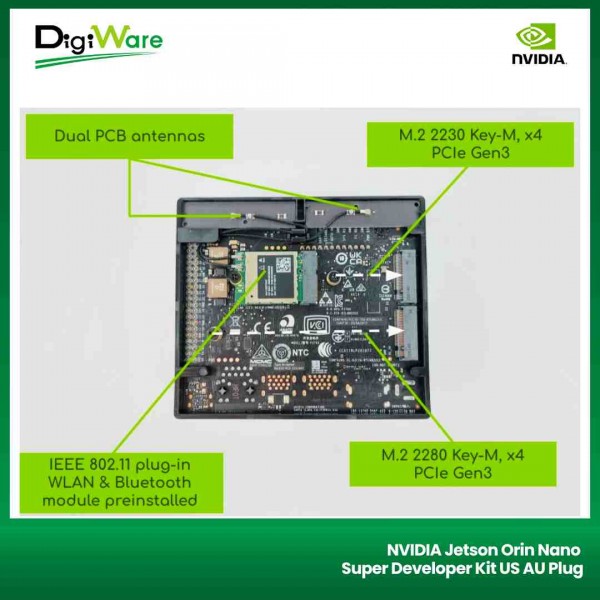

• PCIe: 4x-PCIe Gen3 2x-PCIe Gen3 (M.2 Key M), 1x-M.2 Key E (Pre-installed 1x WiFi/Bluetooth Combo Module), 1x PCIe, USB 2.0, UART, I2S, dan I2C (M.2 Key E)
• USB: 4x Type-A USB 3.2 Gen2, 1x Type-C for UFP
• CSI Camera: 2x MIPI CSI-2 (22pin)
• Display: 1x DP1.2 (+MST) Connector
• Fan: 1x 4 Pin Fan Connector (5V PWM)
• CAN: 1x CAN
• Multifunctional Port: 1x 40-Pin Expansion Header, 1x 12-Pin Control and UART Header
• RTC: RTC-2 Pin, supports CR1220 but not included
• Dimensi: 100 x 79 x 21mm

Comparison NVIDIA Jetson Orin Nano Developer Kit with NVIDIA Jetson Orin Nano Super Developer Kit
