Arducam High Quality Camera for Raspberry Pi 12.3MP 1/2.3 Inch HQ Camera Module with 6mm CS Lens for Pi 4B 3B+ 2B 3A+ Pi Zero

Arducam High Quality Camera for Raspberry Pi 12.3MP 1/2.3 Inch HQ Camera Module with 6mm CS Lens for Pi 4B 3B+ 2B 3A+ Pi Zero and more.

Perhatian: Kamera ini membutuhkan UVC adapter board B0278 yang belum termasuk dalam paket pembelian.

Aplikasi:

• DSLR Camera Control
• Remote Viewing Camera
• Time-lapse Machine
• Security System
• Smart Video Doorbell
• Face Recognition
• Instant (Polaroid-Style) Camera, etc

Spesifikasi (Camera):

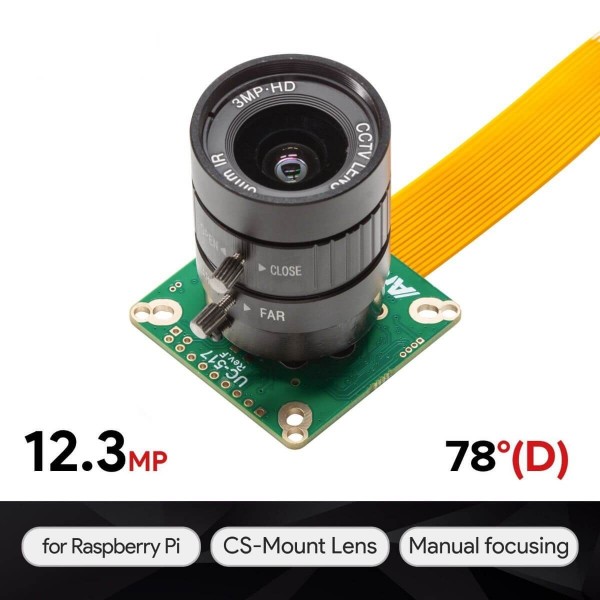

• Resolusi: 12.3 Megapixels
• Video Modes: 2028 x 1080p50, 2028 x 1520p40 and 1332 x 990p120
• Sensor Resolution: 4056 x 3040 Pixels
• Sensor Image Area: 6.287mm x 4.712mm (7.9mm diagonal)
• Pixel Size: 1.55um x 1.55um
• Optical Size: 1/2.3"
• IR Sensitivity: Integral IR-cut Filter, Visible Light Only

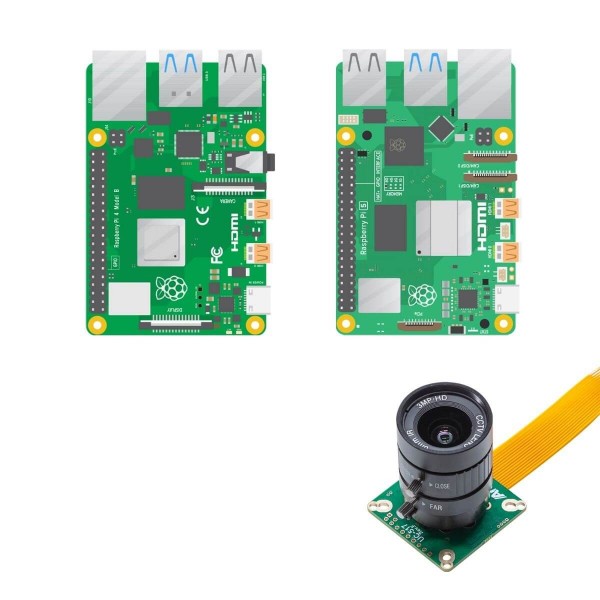

• Supported Platform: Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/CM5/Zero W/Zero 2 W

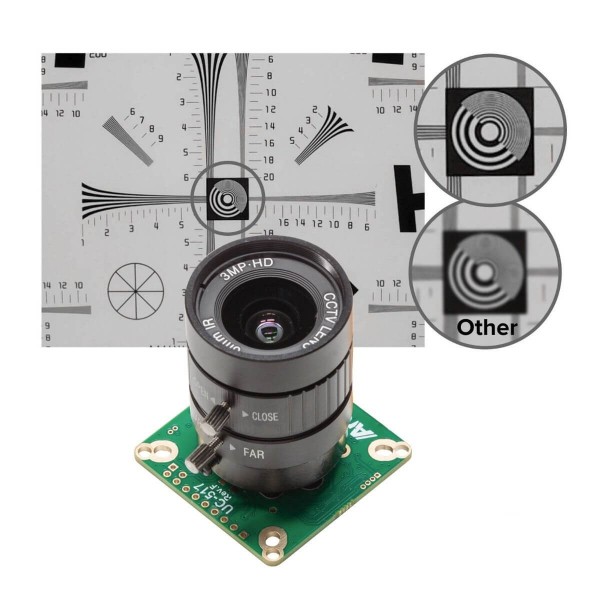

Spesifikasi (Lens):

• Focus Type: Manual Focus
• Focal Length: 6mm
• F.NO: F1.2
• Field of View (FOV): 65°(H)
• Lens Mount: CS-Mount
• MOD: 0.2mm
• Back Focal Length: 7.53mm
• Lens Dimension: 30x31mm

Spesifikasi (Electrical & Mechanical):

• Camera Board Size: 38 x 38mm
• Hole Pitch: Compatible with 29mm, 30mm, 34mm
• Peaking Current: 300mA

Paket Penjualan:

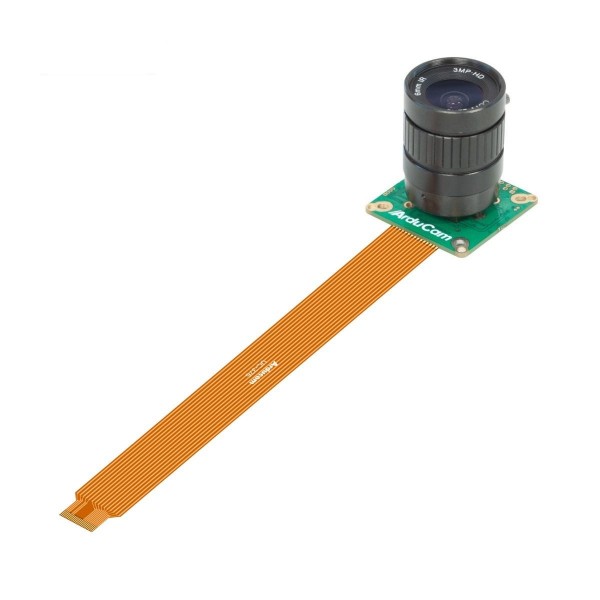

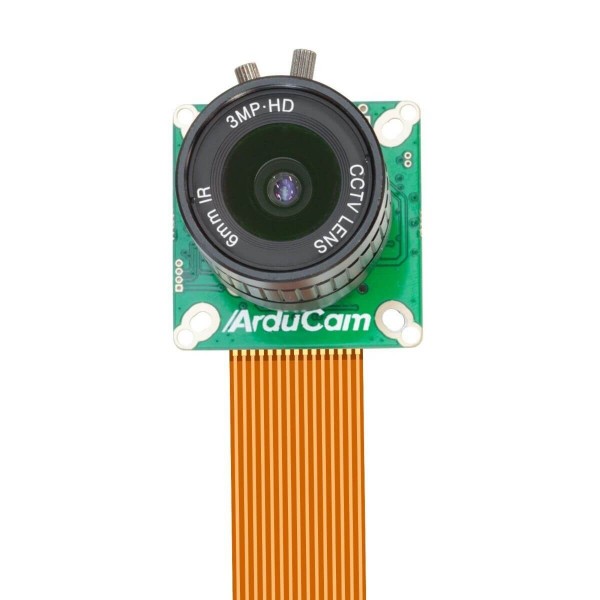

1x 12.3MP Color Camera Module
1x 6mm Focal Length CS-Mount Camera Lens

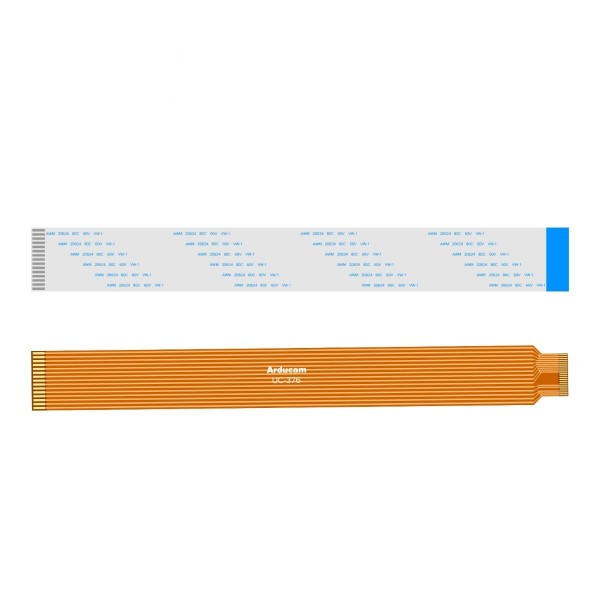

1x 300mm/11.8 inch 15 Pin to 15 Pin Camera Cable
1x 300mm/11.8 inch 15 Pin to 22 Pin Camera Cable

Dokumen:

1. 3D Drawing-Arducam High Quality Camera Module (Link)
2. Documentation-Arducam High Quality Camera Module (Link)
3. 3D Drawing Case (Link)
