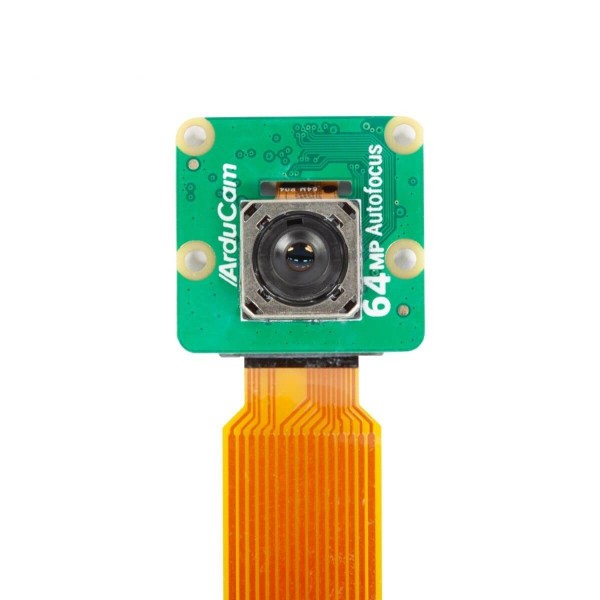

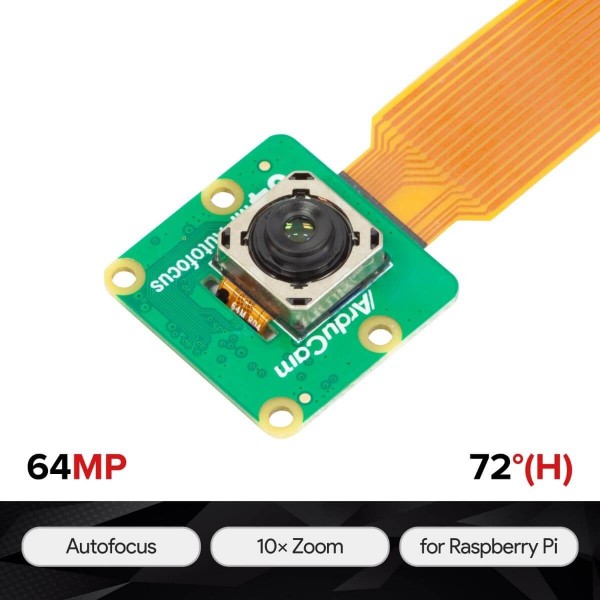

Arducam 64MP PDAF and CDAF Autofocus Camera for Raspberry Pi

Arducam 64MP PDAF and CDAF Autofocus Camera for Raspberry Pi.

Spesifikasi:

• Optical Size: 1/1.7" 9.25mm Diagonal (7.4 x 5.55mm)
• Focus Type: Manual/Auto
• Sensor Resolution: 9152 x 6944
• Color Filter: Quad Bayer Coding (QBC)
• Focus: 8cm~INF
• Focal Length: 5.1mm
• View Angle: 84 Degrees (Diagonal)
• Shutter Type: Rolling
• Sensor Output Formats: RAW10
• Video Modes (Camera Module)*: 9152x6944@2.7fps, 8000x6000@3fps, 4624x3472@10fps, 3840x2160@20fps, 2312x1736@30fps, 1920x1080@60fps, 1280x720@120fps
• Platform Output Formats: JPEG/YUV/RGB/RAW10
• Video Modes (on Raspberry Pi): 1080p30, 720p60 dan 640x480p60/90

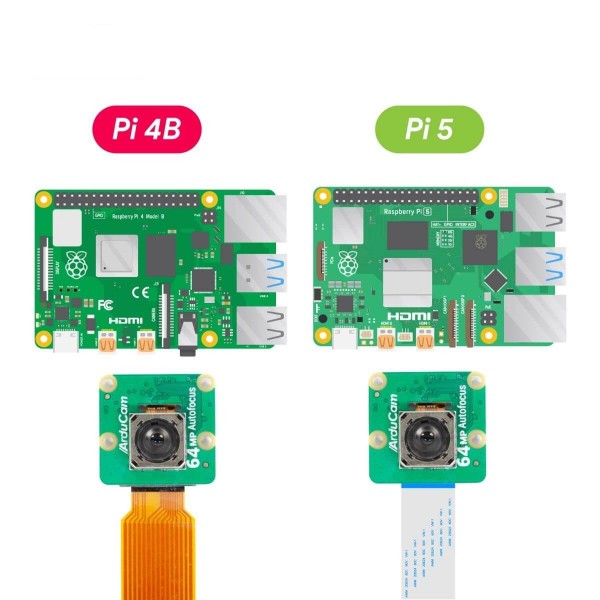

• Supported Platforms: Raspberry Pi 5/4B/Pi 2/3/CM3/CM4/CM5/Zero W/Zero 2 W
• Raspberry Pi OS: Bookworm/Bullseye (32-bit/64-bit) 01/28/22 or Later Releases
• Dimensions: 25 x 24mm

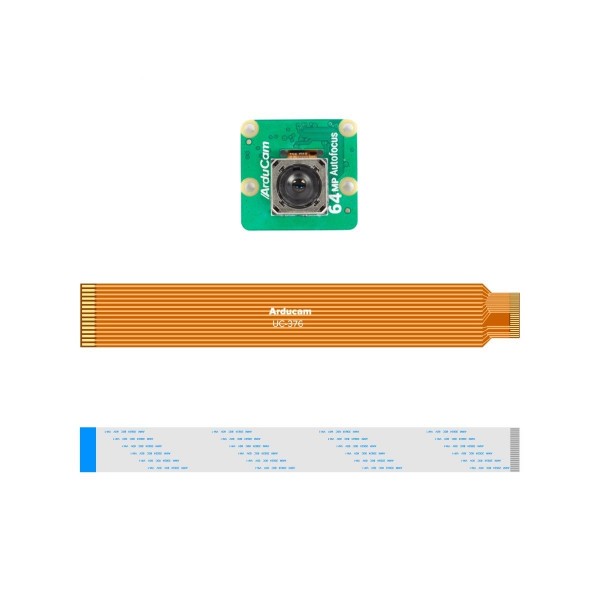

Paket Penjualan:

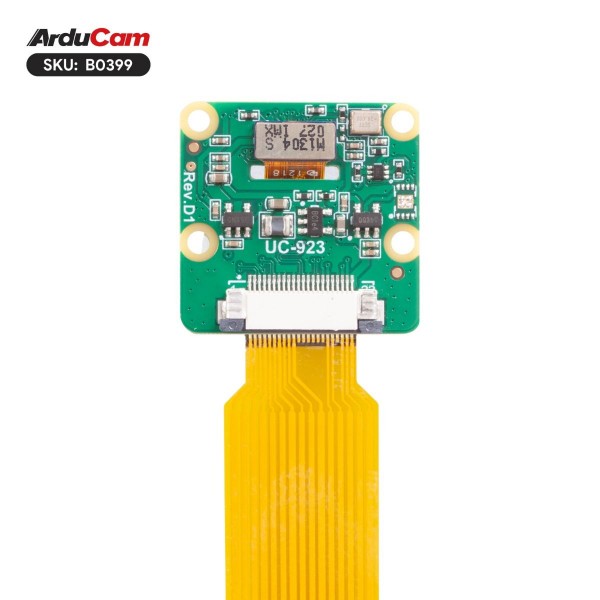

1x 64MP-AF Camera Board

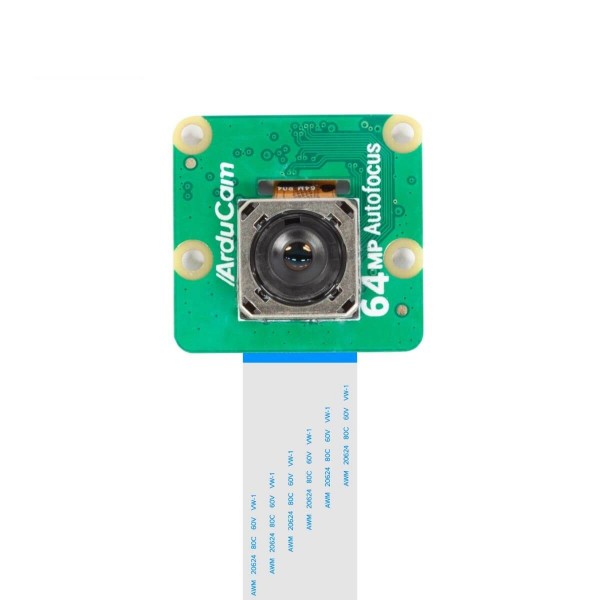

1x 22 Pin to 22 Pin FPC Cable (15cm) for Pi 5, Pi Zero
1x 15 Pin to 22 Pin FPC Cable (15cm) for Pi 4B, 3B+

Dokumen:

1. 64MP-AF Camera Getting Started Guide (Link)
2. Using Raspberry Pi Camera with Your Smartphone (Link)
3. How to Use Arducam 64MP Autofocus Camera on Octopi (Link)
4. How to Use Arducam 64MP Camera on Raspberry Pi (Link)
