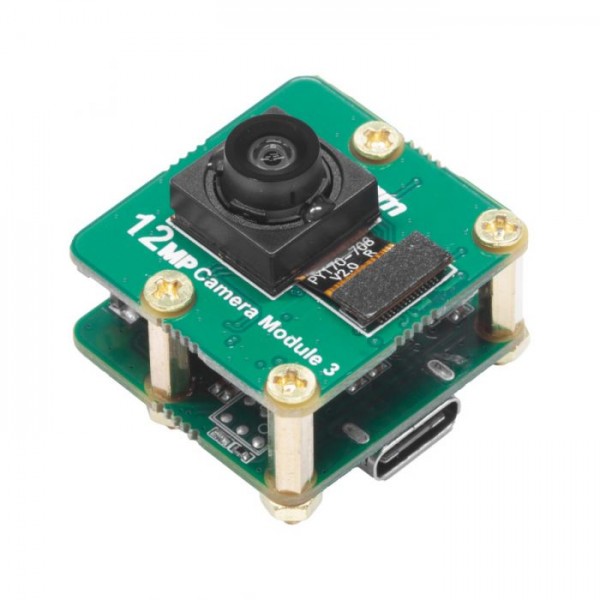

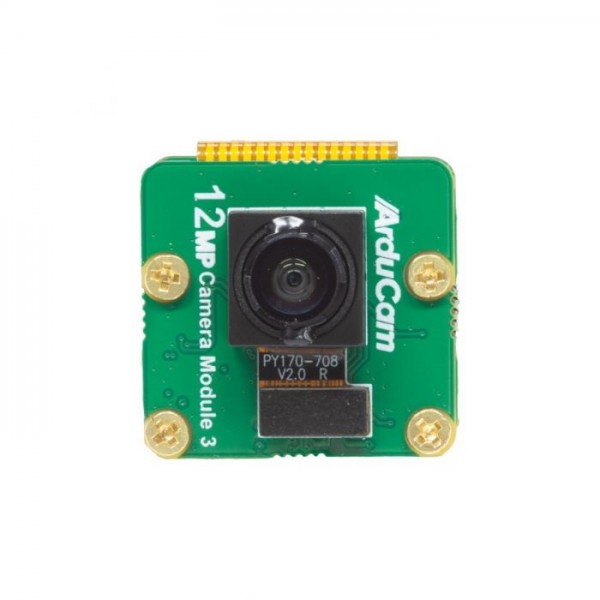

Arducam 12MP IMX708 USB UVC 102 Degree Wide Angle Fixed Focus Camera Module 3

296-074

Stok Produk
Surabaya2 pcs

Close

Rp 1.350.000

Arducam 12MP IMX708 USB UVC 102 Degree Wide Angle Fixed Focus Camera Module 3.

Aplikasi:

    • Webcam
    • Home Surveillance System
    • Wildlife Photography
    • DSLR Camera Control
    • Instant (Polaroid-Style) Camera, etc

Spesifikasi:

    • Sensor: IMX708
    • Resolution: 12MP
    • Color Filter Type: Color
    • Shutter Type: Rolling Shutter
    • Optical Size: 1/2.43"
    • Output Format: MJPG
    • Pixel Size: 1.4um x 1.4um
    • Sensor Active Area: 4608 x 2592
    • Frame Rate: 4608x2592@10fps, 2304x1296 / 1920x1080 / 1600x1200 / 1280x720@30fps
    • Focus Type: Fixed Focus

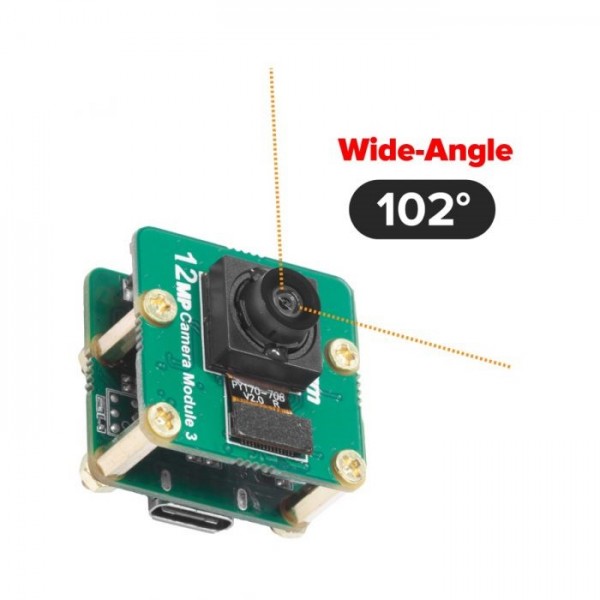

    • FOV: 120°(D)x102°(H)x67°(V)
    • Lens Mount: Stock Lens
    • Focal Length: 2.75mm
    • IR Sensitivity: Integral IR-Cut Filter, Visible Light Only
    • Interface: USB2.0 Device

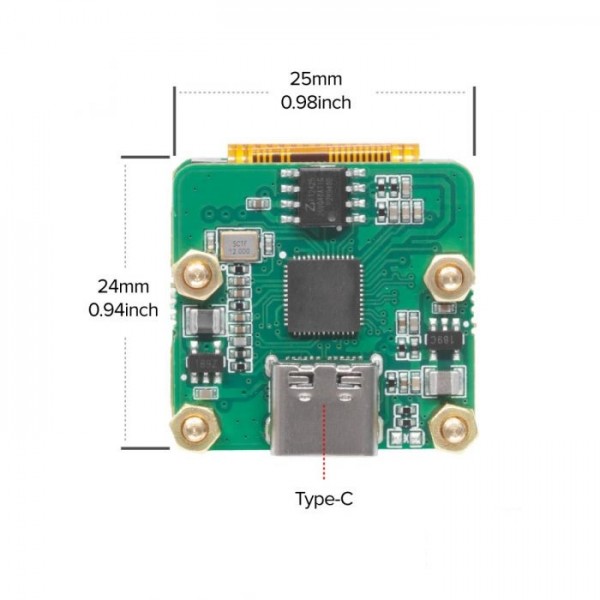

    • Adapter Board Size: 24mm x 25mm
    • Operating Voltage: DC 5V +- 5%
    • Working Current: Max 300mA
    • Operating Temp: -20°C to +70°C
    • Camera Board Size: 24mm x 25mm
    • Audio Single: Microphone

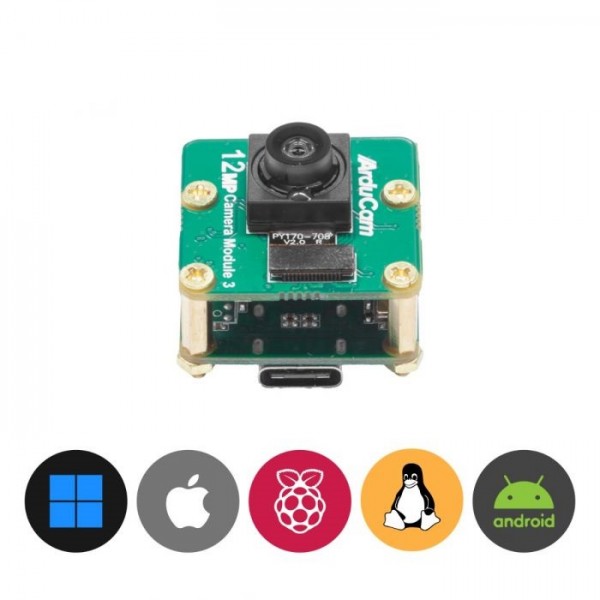

    • Supported OS: Windows, Linux, Android and MAC

Paket Penjualan:

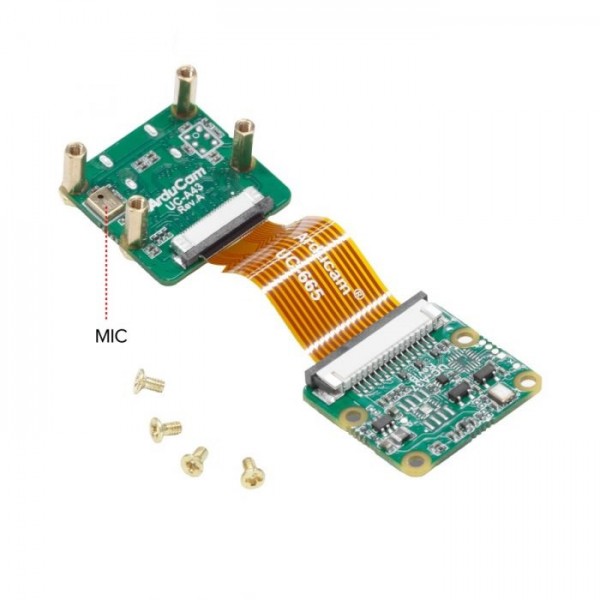

1 x Arducam IMX708 Wide-Angle Fixed Focus Camera Module with UVC adapter board
1 x USB2.0 Cable (1m/3.3ft)

Dokumen:

1. How to Use UVC Camera on Linux (Link)
2. How to Use UVC Camera on Windows (Link)
3. Modify Serial Number for UVC Cameras (Link)
4. Raspberry Pi V3 IMX708 Camera Variants & Peripherals (Link)

Produk Terkait:

1. Arducam 2.3MP AR0234 Color Global Shutter USB 3.0 Camera Module
2. Arducam Autofocus Camera Module 64MP for Raspberry Pi
