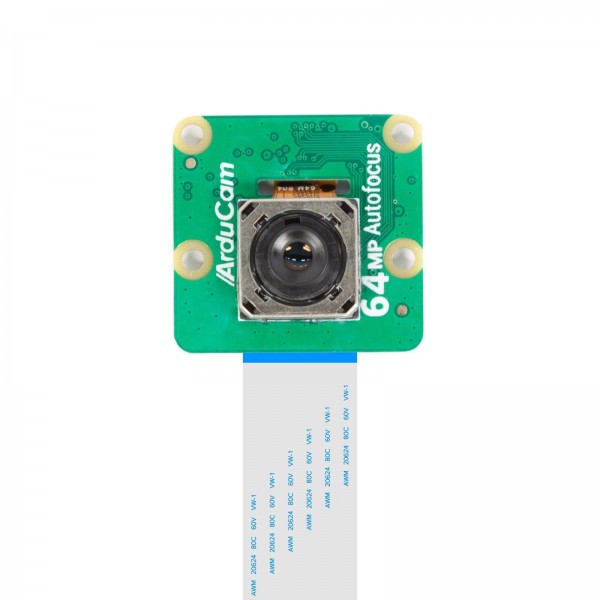

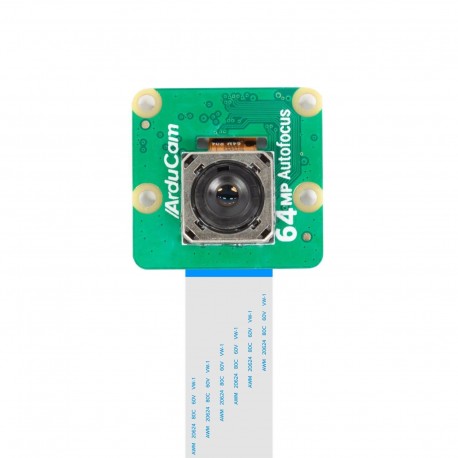

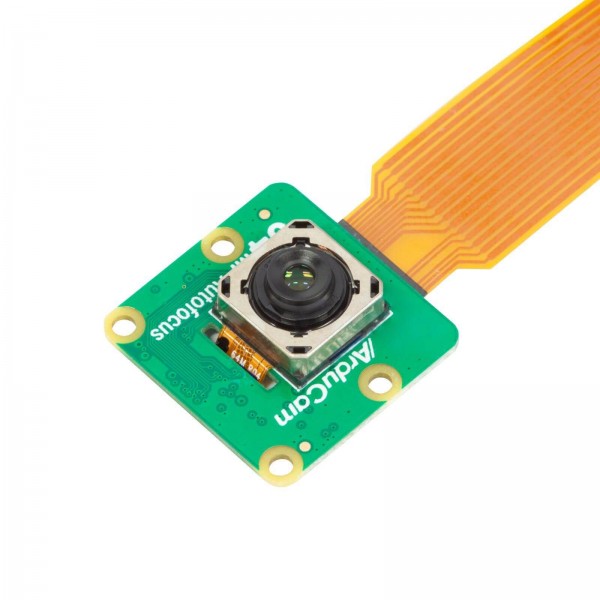

ArduCAM Autofocus Camera Module 64MP for Raspberry Pi

ArduCAM Autofocus Camera Module 64MP for Raspberry Pi.

Spesifikasi:

• Optical Size: 1/1.7" 9.25mm Diagonal (7.4 x 5.55mm)
• Focus Type: Manual / Auto
• Sensor Resolution: 9152 x 6944
• Color Filter: Quad Bayer Coding (QBC)
• Focus: 8cm ~ INF
• Focus Length: 5.1mm
• View Angle: 84 Degrees (Diagonal)
• Shutter Type: Rolling
• Sensor Output Formats: RAW10
• Video Modes (Camera Module): 9152×6944@2.7fps, 8000×6000@3fps, 4624×3472@10fps, 3840×2160@20fps, 2312×1736@30fps, 1920×1080@60fps, 1280×720@120fps

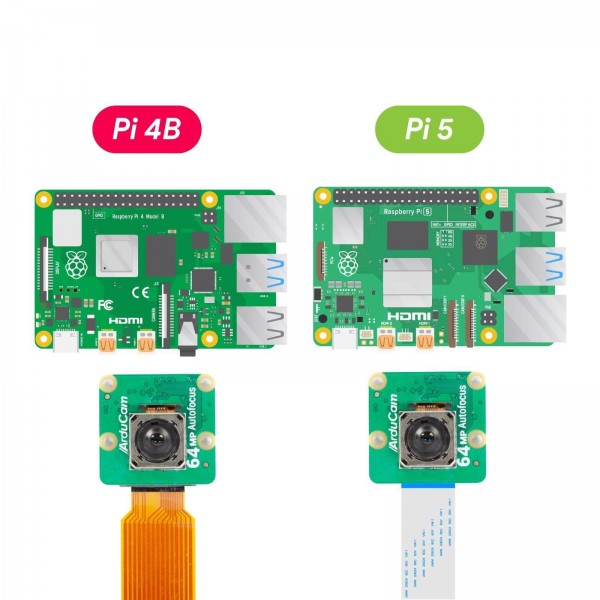

• Supported Platforms: Raspberry Pi 5/4B/Pi 2/3/CM3/CM4/CM5/Zero W/Zero 2 W
• Raspberry Pi OS: Bookworm/Bullseye (32-bit/64-bit) 01/28/22 or Later Releases
• Dimensions: 25 x 24mm

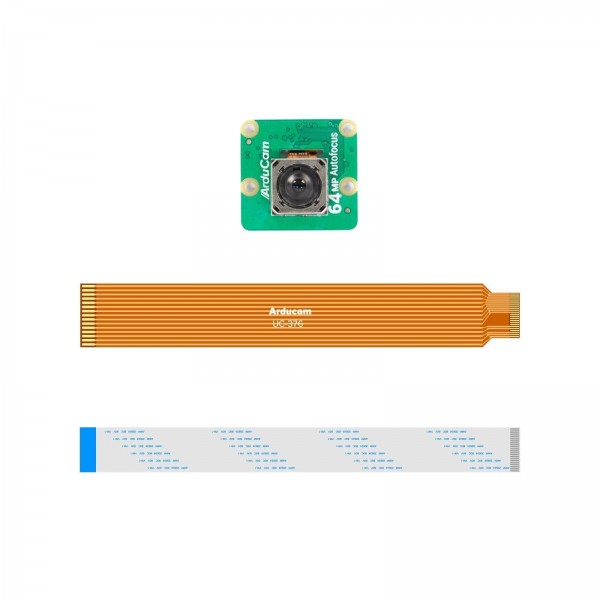

Paket Penjualan:

1x 64MP-AF Camera Board
1x 15cm 22-22pin FPC Cable
1x 15cm 15-22pin FPC Cable

Dokumen:

1. 64MP-AF Camera Getting Started Guide (Link)
2. 64MP Product Brief (Link)
3. Using Raspberry Pi Camera with Your Smartphone (Link)
4. How to use Arducam 64MP Camera on Raspberry Pi (Link)
5. 3D Drawing (Link)
