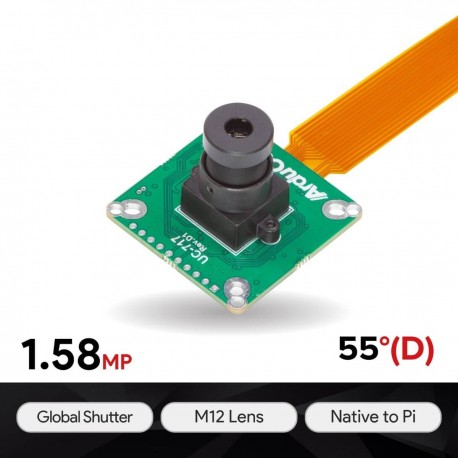

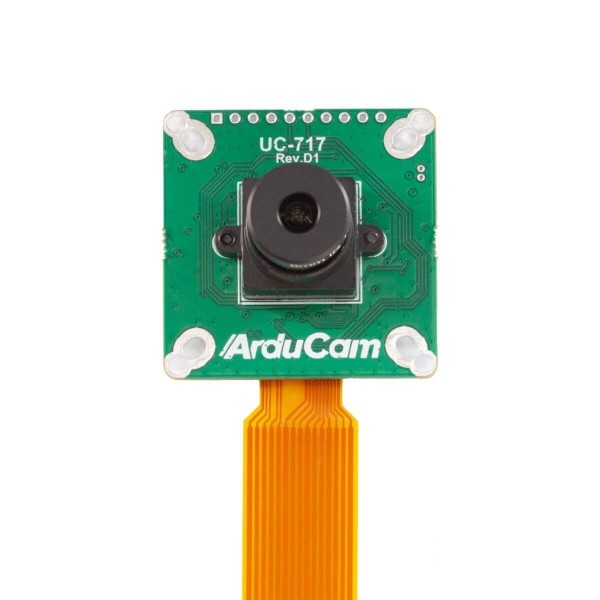

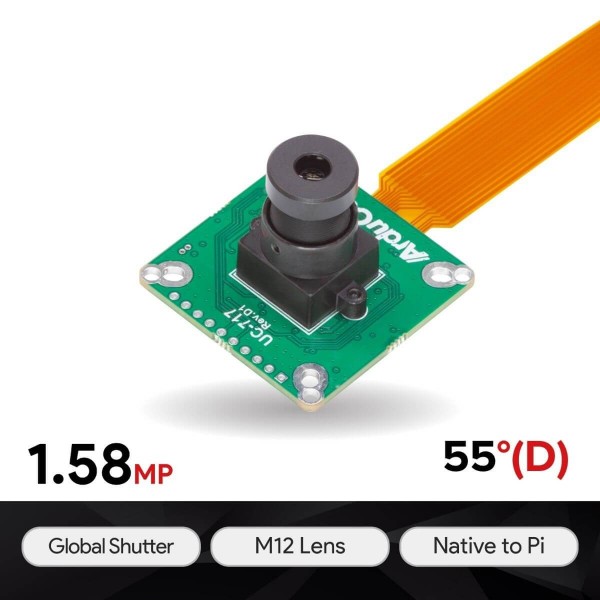

1.58MP IMX296 Color Global Shutter Camera Module with M12 Lens for Raspberry Pi

1.58MP IMX296 Color Global Shutter Camera Module with M12 Lens for Raspberry Pi.

Aplikasi:

• Home Security System
• Wildlife Photography
• Unattended Surveillance
• Industrial Vision/Machine Vision
• Automation, AI Project
• Dan lain sebagainya

Fitur:

• Global Shutter: Based on SONY IMX296 Color Global Shutter Image Sensor. The sensor is a CMOS active pixel type solid-state image sensor with a square pixel array and 1.58 M effective pixels.
• M12 Lens: Armed with a 45° (HFOV) M12 Lens. Integrated with a M12 Lens Mount, of which Length Holder Height is 13mm.
• Manual Focus: Manual Focus cameras are always more suitable in some special conditions. For example, in low-light and macro photography environments, manual focus can obtain a complete overall contrast of pictures, thereby improving image quality and focus accuracy.
• Raspberry Pi Native: Native to Raspberry Pi. No additional camera driver is needed.
• Wide Compatibility: Compatible with Raspberry Pi 3, 4 A/B, equipped with 15-22pin and 22-22pin FPC flexible cables. Support used on Raspberry Pi Zero.

Spesifikasi:

• Image Sensor: IMX296
• Resolution: 1.58MP
• Optical Size: 1/2.9"(6.3mm Sensor Diagonal)
• Number of Effective Pixels: 1440(H) × 1080(V)
• Pixel Size: 3.45um x 3.45um
• Support Platform: Raspberry Pi 5/4/3/Zero/CM3/CM4
• Shuttery Type: Global Shutter
• Color Filter Array: Quad-Bayer RGB
• Frame Rate: RAW10:1440x1080@60fps
• Output Format: RAW10
• F.NO: F2.0
• Focus Type: Manual Focus
• Focal Length: 6mm
• Lens Size: M12 Lens(M2506ZH04)
• Field of View(FOV): 55°(D)x45°(H)x33°(V)
• IR Sensitivity: Integral IR-cut Filter, Visible Light Only
• Camera Board Size: 38 x 38mm

Paket Penjualan:

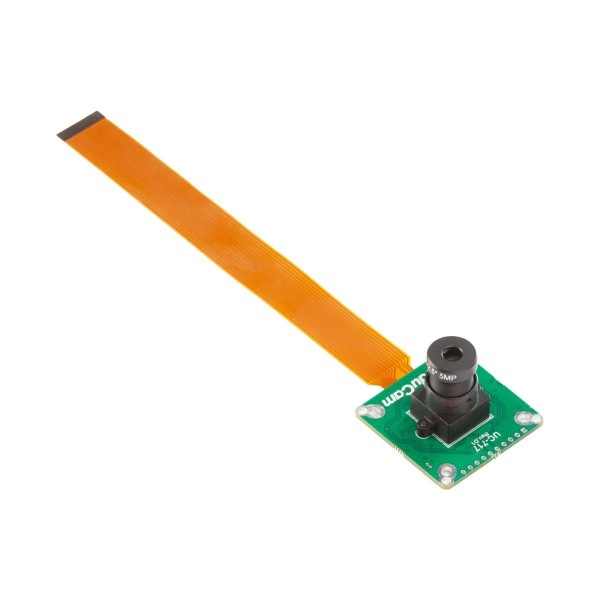

1x Arducam 1.58MP IMX296 Global Shutter camera module with M12 Lens
1x 150mm 15pin-22pin FPC Cable
1x 150mm 22pin-22pin FPC Cable

Dokumen:

1. Quick Start Guide for Raspberry Pi Native Camera (Link)
