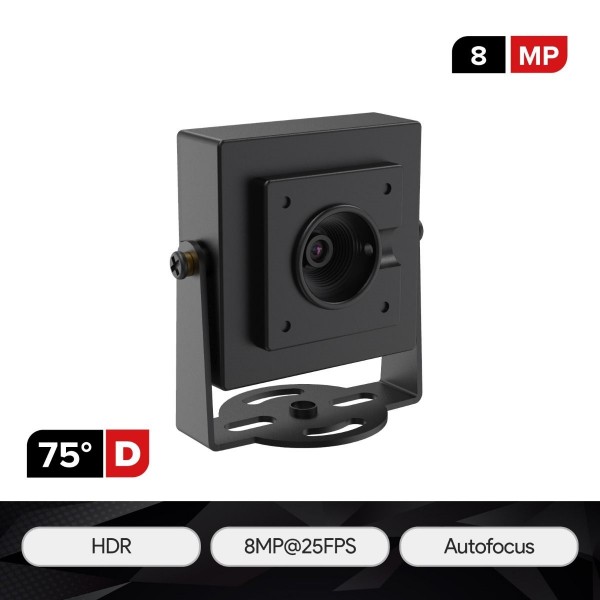

Arducam 8MP A219 Autofocus USB2 UVC Camera Module with Metal Case, HDR-enabled Module Available Upgraded Module

Arducam 8MP A219 Autofocus USB2 UVC Camera Module with Metal Case, HDR-enabled Module Available Upgraded Module.

Aplikasi:

• Robotics
• Precision Agriculture
• Medical and Scientific Research
• Document Scanning and Archiving
• Broadcast and Media Production

Fitur:

• (Plug and Play) No additional driver is needed
• (HDR) Features the High Dynamic Range Function
• (Autofocus) Armed with a 72° (DFOV) Autofocus Lens
• (High Resolution) 8MP HD, Max resolution: 3264*2448
• (Metal Case) Metal case, ensuring both heat-sinking and product completeness

Spesifikasi:

Image Sensor:

• Resolusi: 8MP
• Color Filter Type: Color
• Shutter Type: Rolling
• Optical Size: 1/4"
• Output Fotmat: MJPG/YUY2
• Pixel Size: 1.12um x 1.12um
• Sensor Active Area: 3280(H)×2464(V)
• Frame Rate (MJPG): 3264x2448@25fps, 2592x1944@30fps; 1920x1080@30fps, 1280x720@30fps; 640x480@30fps;
• Frame Rate(AI Resolution(YUV)): 640x480@30fps, 320x240@30fps; 320x320@30fps, 128x128@30fps; 96x96@30fps;

Lens:

• IR Sensitivity: Integral 650nm IR Filter, Visinle Light Only
• Focus Type: Autofocus
• FOV: 75°(D)×61°(H)×50°(V)
• Lens Mount: Stock Lens
• F.NO: F1.8
• E.F.L: 3.95mm
• Default Focus Range: 10cm ~ Infinity

USB Interface:

• Interface: USB 2.0 Device
• Connector: B4B-ZR JST
• UVC Compliant: No additional drivers required

Electrical & Mechanical:

• Operating Voltage: 5V
• Operating Temp.: 0°C to 70°C
• Power Consumption: 1.75W
• Camera Board Size: 32mm x 32mm x 1.6mm

Functionality and Compatibillity:

• HDR Support: YES
• Enclosure: with Metal Enclosure
• Supported OS: Windows, Linux, MacOS
• Recommend Sample Application: Amcap for Windows, qv4l2 for Linux
• UVC Controls: Brightness, Contrast, Saturation, White Balance (Auto/Manual), Lowligth Compensation, Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

Dokumen:

1. Manual Panduan (Link)
