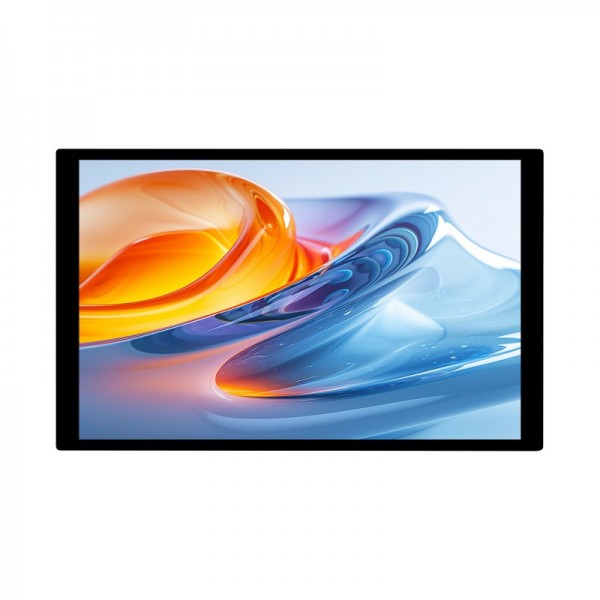

10.1 inch DSI Capacitive Touch Display 8001280 IPS Panel Optical Bonding Toughened Glass Panel 10-Point Touch

10.1 inch DSI Capacitive Touch Display.

Fitur:

• Size: 10.1"
• Resolution: 800 x 1280

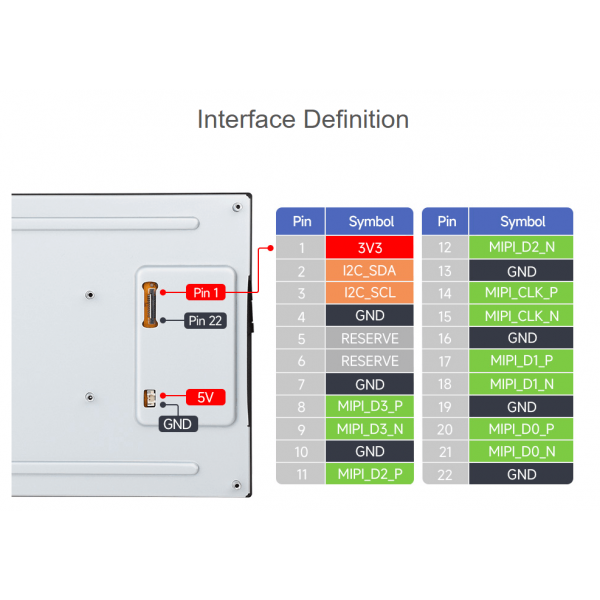

• Display Interface: DSI
• Display Panel: IPS
• Viewing Angle: 178°
• Touch Type: Capacitive
• Touch Points: 10-Point
• Touch Panel: Toughened Glass
• Touch Panel Tech: Optical Bonding
• Brightness: 400 cd/m2

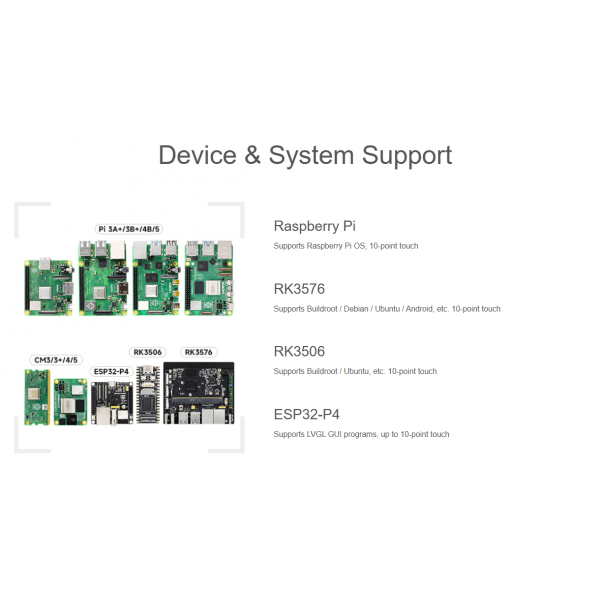

• Device & System Support: Raspberry Pi, RK3576, RK3506, ESP32-P4

Spesifikasi:

• Input Voltage: 4.75 ~ 5.30VDC (Maks)
• Input Current: 0.8A
• Resolution: 800 x 1280
• Display Interface: DSI MIPI
• Operating Temperature: 0°C ~ 60°C
• Storage Temperature: -10°C ~ +70°C

Dokumen:

1. Wiki (Link)
