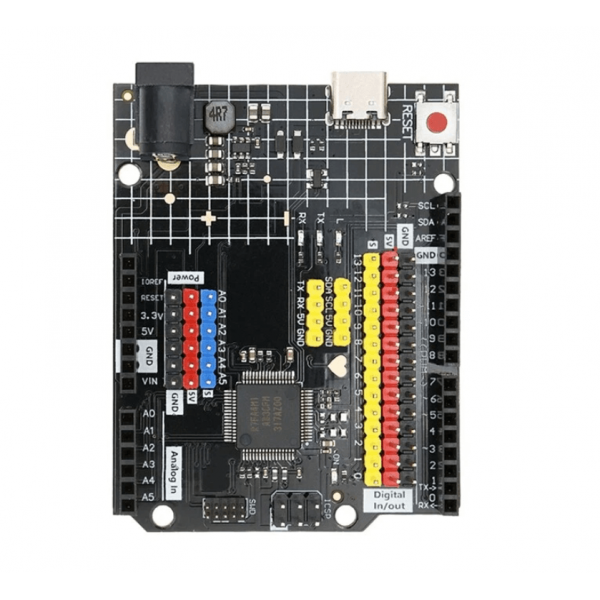

UNO R4 Minima Type-C USB Development Board

UNO R4 Minima Type-C USB Development Board merupakan board UNO R4 Minima kompatibel berbasis mikrokontroler Renesas RA4M1. Board ini memiliki banyak interface mulai dari GPUO, PWM, ADC, DAC maupun interface untuk komunikasi data seperti I2C, SPI, dan CAN.

Spesifikasi:

• Prosesor: ARM Cortex M4
• Flash: 256KB
• SRAM: 32KB
• Working Voltage: 5V
• Input Voltage: 6 ~ 24V
• Clock Frequency: 48MHz
• Programming Port: USB-C
• Digital I/O Interfaces: 14
• PWM Interfaces: 6
• ADC Interfaces: 6
• DAC Interfaces: 1 (12-bit)
• SPI Interfaces: 1
• I2C Interfaces: 1
• CAN Interfaces: 1
