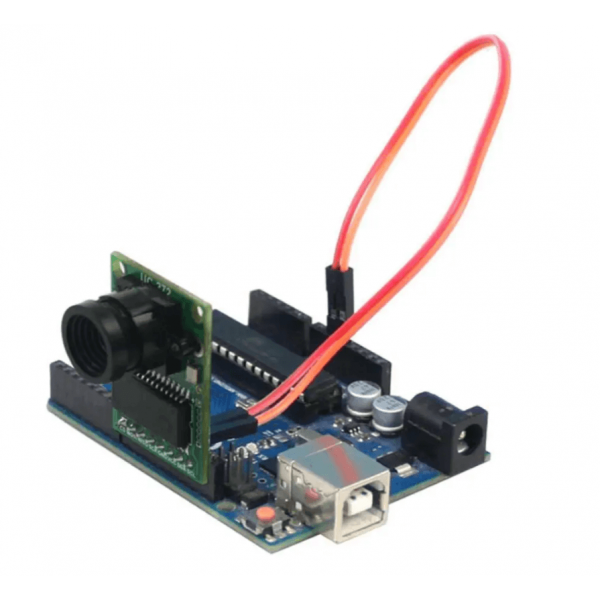

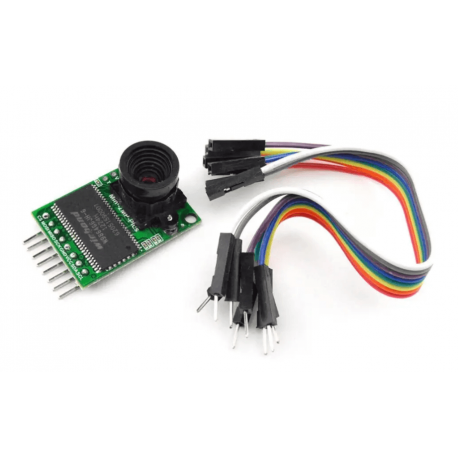

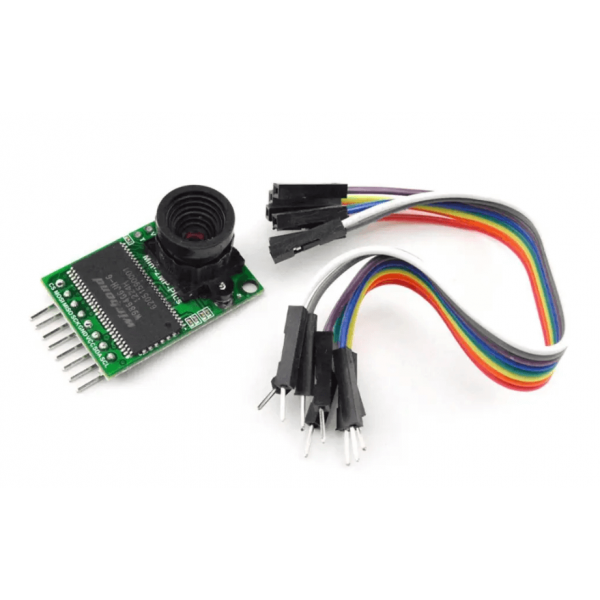

ArduCAM Mini Camera Module Shield w/ 2 MP OV2640 for Arduino

ArduCAM Mini Camera Module Shield w/ 2 MP OV2640 for Arduino.

Fitur:

• 2MP Image Sensor OV2640
• M12 Mount or CS Mount Lens Holder with Changeable Lens Options
• IR Sensitive with Proper Lens Combination
• I2C Interface for The Sensor Configuration
• SPI Interface for Camera Comands and Data Stream
• Can be Used in MCU, Raspberry Pi, ARM, DSP, FPGA Platforms

Spesifikasi:

• Image Sensor: OV2640
• Active Array Size: 1600 x 1200
• Shutter: Rolling Shutter
• Lens: 1/4 inch
• SPI Speed: 8MHz
• Frame Buffer: 8MByte
• Temperature: -10°C ~ +55°C
• Power Consumption: 5V 70mA (Normal), 5V 20mA (Low Power)
• Format Support: RAW, YUV, RGB, JPEG
• Resolution: UXGA, SVGA, VGA, QVGA, CIF, QCIF

Dokumen:

1. Introduction (Link)
2. Source Code Github (Link)
3. Quick Start Guide (Link)
