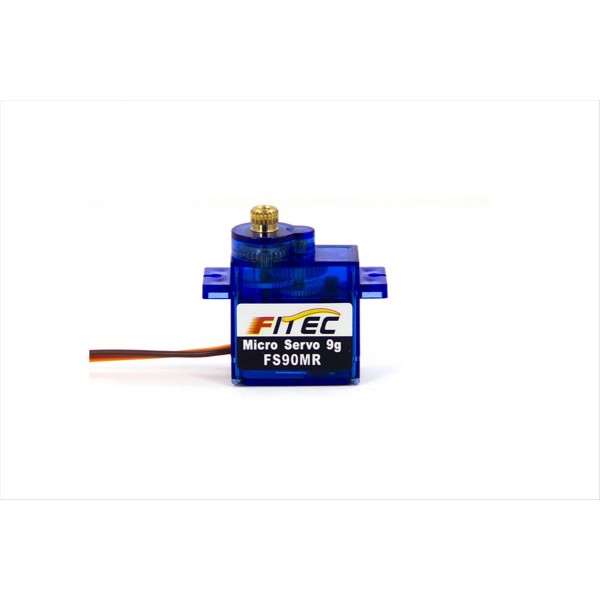

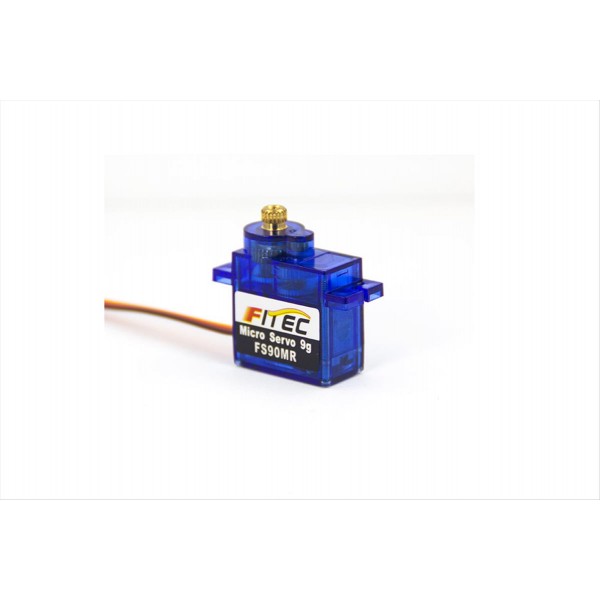

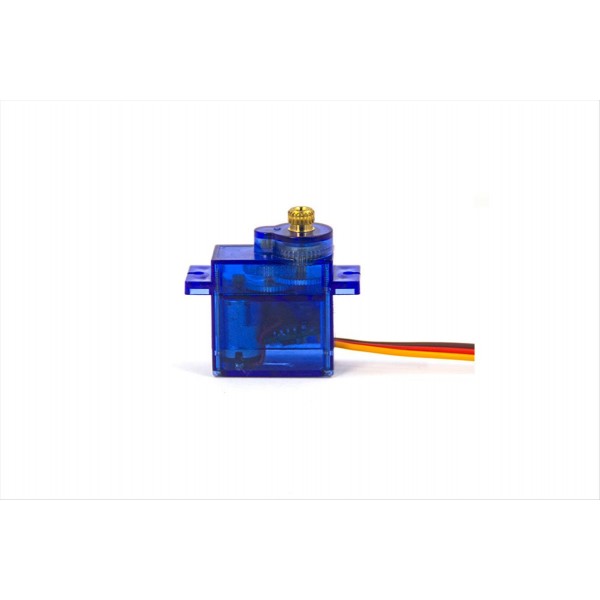

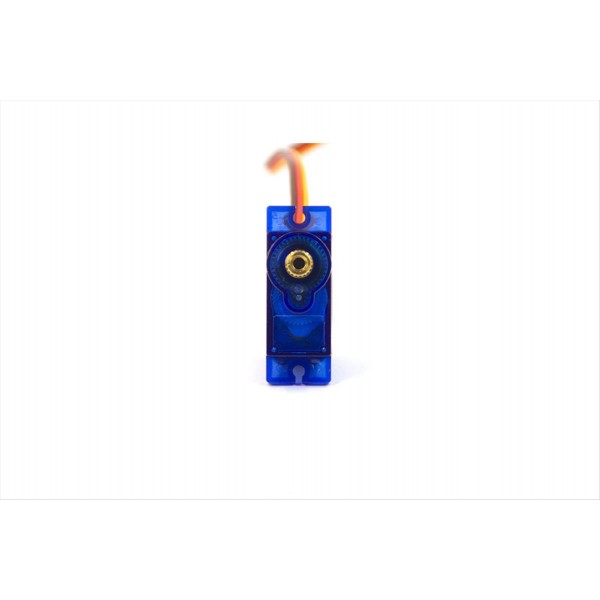

Servo Continuous Rotation Micro Metal Gear 12.5g 360 Degree FS90MR-C001

Servo Continuous Rotation Micro Meral Gear 12.5g 360 Degree.

Spesifikasi:

• Model: FS90MR-C001
• Command Signal: Pulse width Modification (PWM)
• Pulse Width Range: 1400 ~ 1600 uSec
• Running Degree: 360° (at 1400 ~ 1600 uSec)
• Operating Voltage Range: 3V ~ 6V
• Idle Currenrt: 6mA@6V
• Running Current (No Load): 160mA@6V
• Peak Stall Torque: 2.2kg.cm@6V
• Rated Torque: 0.7kg.cm@6V
• Gear Type: POM
• Limit Angle: No Limit
• Bearing: No
• Horn Gear Spline: 20T/4.7mm
• Gear Ratio: 1:263
• Case: PC Plastic
• Connector Wire: 25 cm
• Storage Temperature Range: -30°C ~ +80°C
• Operating Temperature Range: -10°C ~ +60°C

Dokumen:

1. Datasheet (Link)
