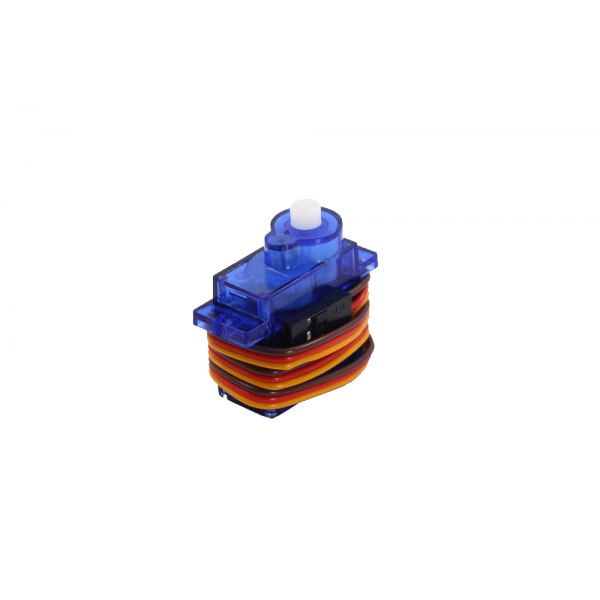

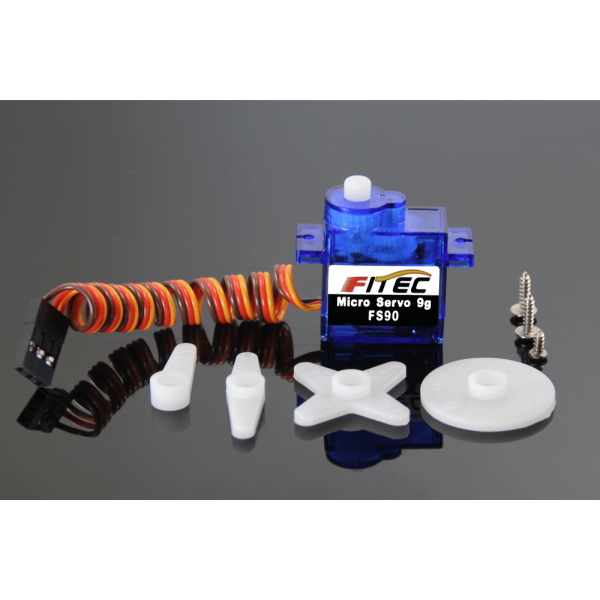

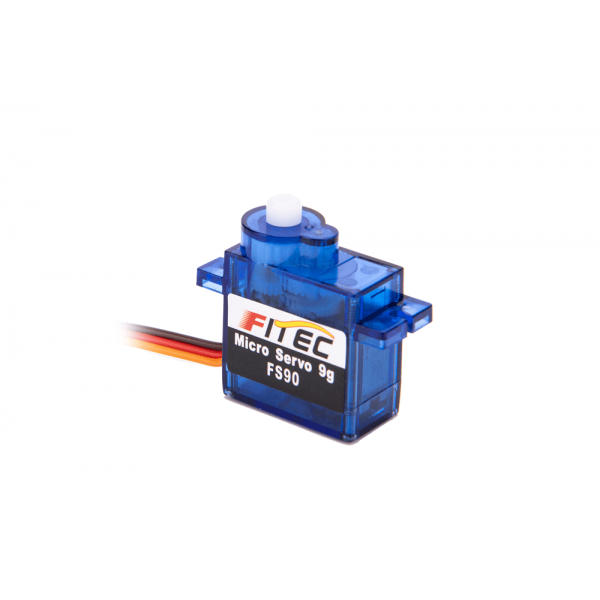

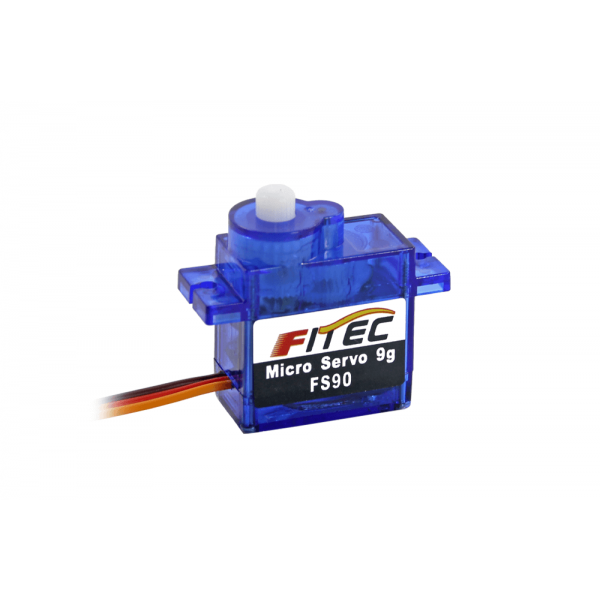

Servo Analog Micro Plastic Gear FS90

Servo Analog Micro Plastic Gear.

Spesifikasi:

• Model: FS90
• Operating Voltage Range: 4.8 ~ 6V
• Gear Type: Plastic Gear (POM)
• Limit Angle: 180 Degree
• Bearing: No Ball Bearings
• Horn Gear Spline: 21T (4.86)
• Horn Type: Plastic, POM
• Case: ABS
• Connector Wire: 250mm
• Motor: Metal Brush Motor
• Idle Current: 5mA ~ 6mA
• No Load Speed: 100RPM@6V
• Running Current (No Load): 120mA@6V
• Peak Stall Torque: 1.5kg.cm@6V
• Rated Torque: 0.5kg.cm@6V
• Stall Current: 800mA@6V
• Running Degree: 120° (900 ~ 2100 usec), 180° (500 ~ 2500 usec)
• Storage Temperature Range: -30°C ~ +80°C
• Operating Temperature Range: -15°C ~ +70°C

Dokumen:

1. Datasheet (Link)
