Analog Electrical Conductivity Sensor for Wastewater Testing

Analog Electrical Conductivity Sensor merupakan perangkat sensor yang dapat digunakan untuk mengukur konduktivitas listrik cairan dengan nilai tinggi (cairan yang banyak mengandung ion terlarut) misalnya air laut, larutan garam pekat, dan sejenisnya. Sensor ini memiliki rentang pengukuran sampai 100 mS/cm (milliSiemens per Centimeter).

Sensor ini dapat dipakai untuk aplikasi kualitas air di bidang marikultur (budidaya laut) dan lain sebagainya.

Fitur:

• Wide Voltage Input (3 ~ 5VDC)
• AC Excitation Source, Effectively Reduce Polarization
• Gravity Connector and BNC Connector, Plug and Play
• Software Library Supports Single-point Calibration, and Automatically Identifies Standard Buffer Solution
• Integrates Temperature Compensaton Algoithm
• Uniform Size and Connector

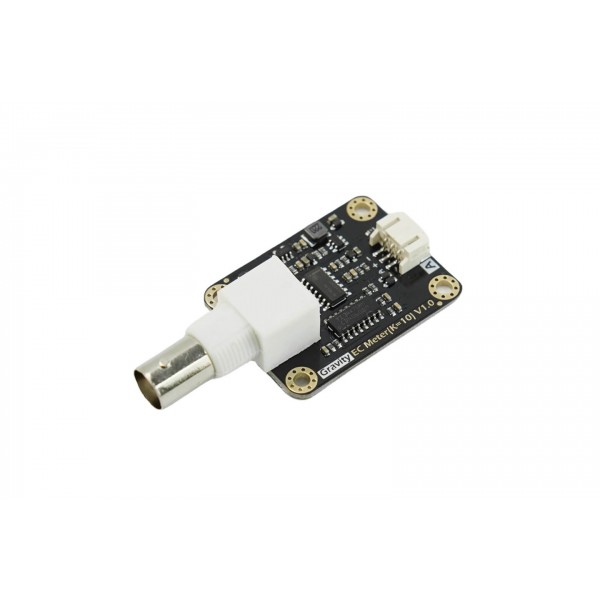

Signal Conversion Board Specification:

• Supply Voltage: 3 ~ 5VDC
• Output Voltage: 0 ~ 3.2V
• Probe Connectr: BNC
• Signal Connector: PH2.0 ~ 3 Pin
• Measurement Accuracy: +5% F.S
• Dimensi: 42 x 32mm

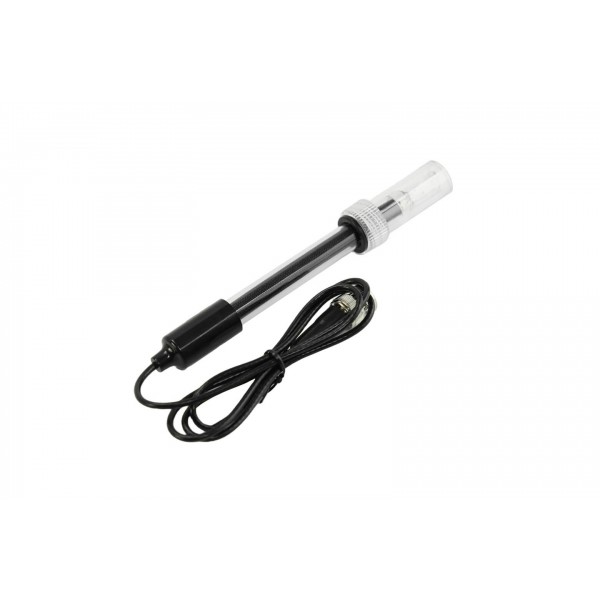

Electrical Conductivity Probe Specification:

• Probe Type: Laboratory Grade
• Cell Constant: 10 +- 2
• Support Detection Range: 10 ~ 100ms/cm
• Temperature Range: 0 ~ 40°C
• Probe Life: > 0.5 Years
• Cable Length: 100 +- 2cm

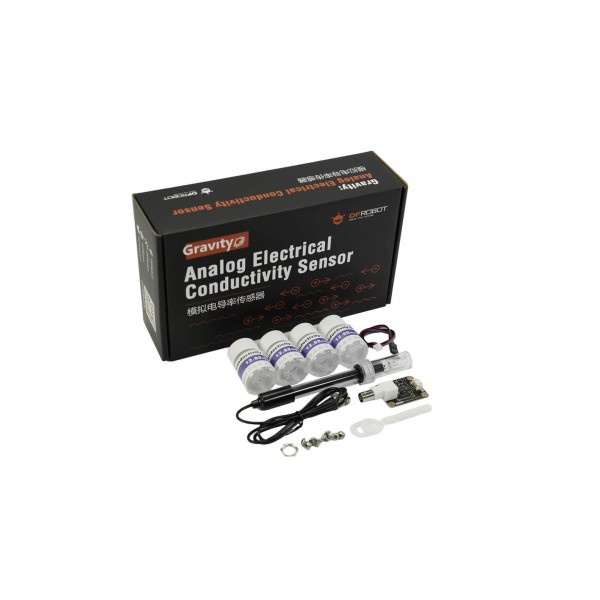

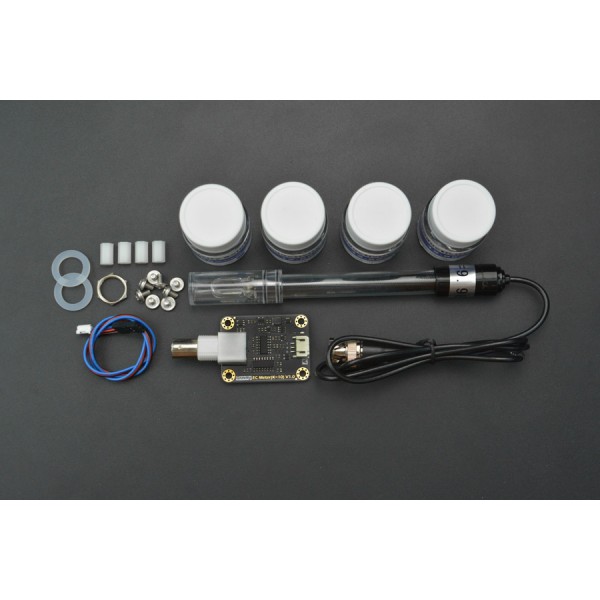

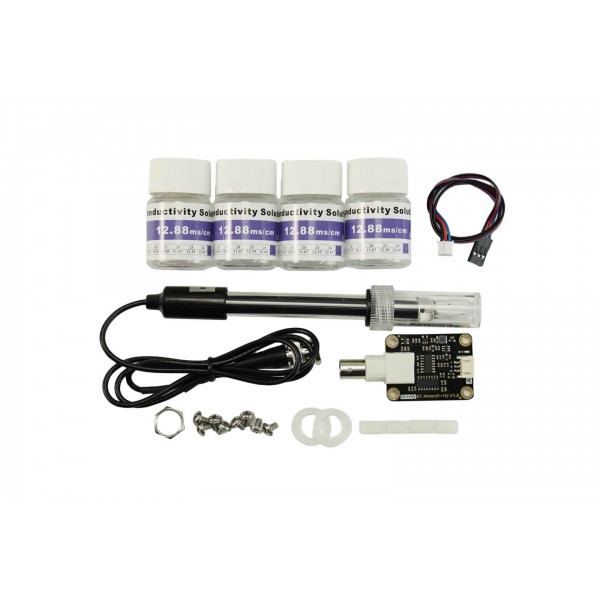

Paket Penjualan:

1x Electrical Conductivity Probe (K=10, Laboratory Grade)
1x Signal Convension Board
4x Standard Buffer Solution 12.88ms/cm
1x Gravity Analog Sensor Cable
2x Waterproof Gasket
1x Screw Cap for BNC Connector
4x M3*10 Nylon Pillar
8x M3*5 Screws

Dokumen:

1. Wiki (Link)
2. More Documents (Link)
