UR1A-9 Integrated UHF RFID Reader 9dBi IP67
431-475
| Product Stock | Surabaya | 3 pcs |
- Remove this product from my favorite's list.
- Add this product to my list of favorites.

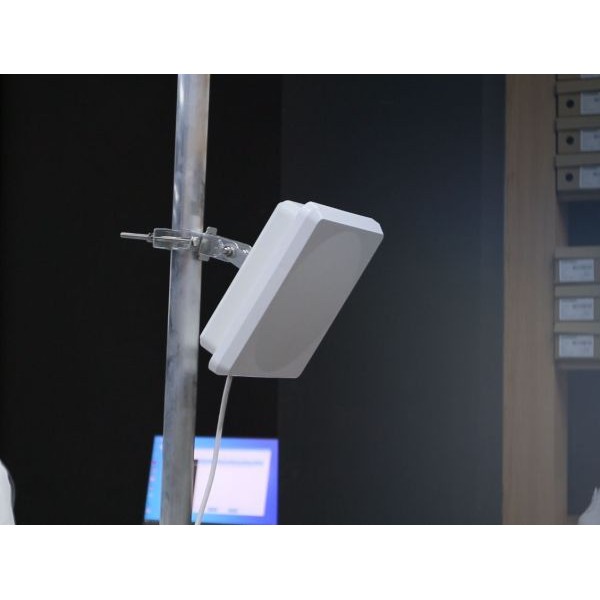

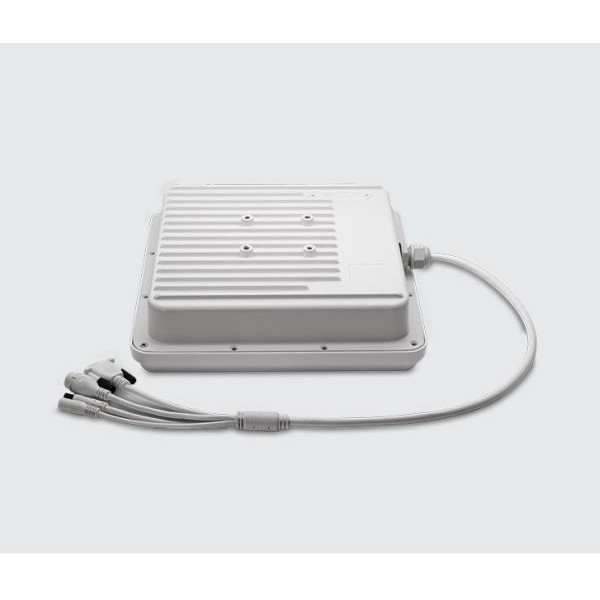

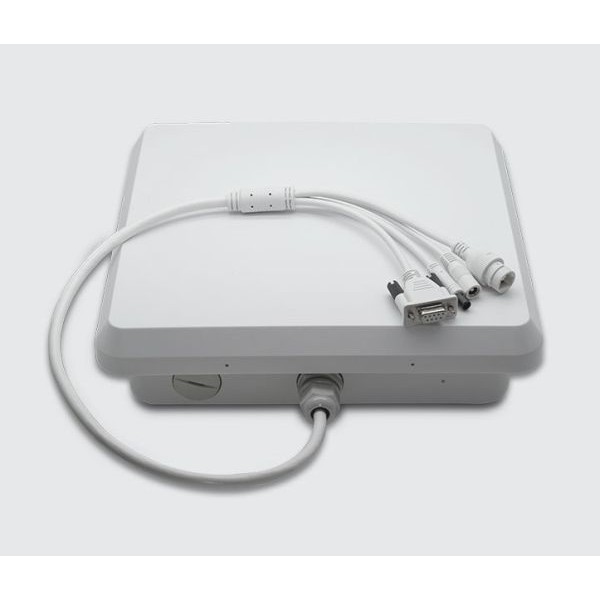

UR1A is a high-performance single-channel fixed RFID reader. Employing self-developed high-performance module based on Impinj E710 chip, and working together with integrated high-performance antenna, UR1A's UHF performance is outstanding. The reader supports RS-232, RJ45 and GPIO communication interfaces. UR1A is applicable widely in warehousing, archives management, library management, banking, production line management and other fields.
Feature :
- UHF RFID Impinj E710 chip
- Antenna Integration Design
- IP67 Sealing
- Support Multiple Interfaces
Applications :
- Jewelry Monitoring
- Vending Machines
- Intelligent Manufacture
- Archives and Library Management
- Inventory Management
- Clothing and Footwear Retail
Spesification :
| Physical Characteristics : | ||
| Material | Plastic + Aluminum Alloy | |
| Input Voltage | DC 9V – 12V | |
| Standby Current | < 30mA | |

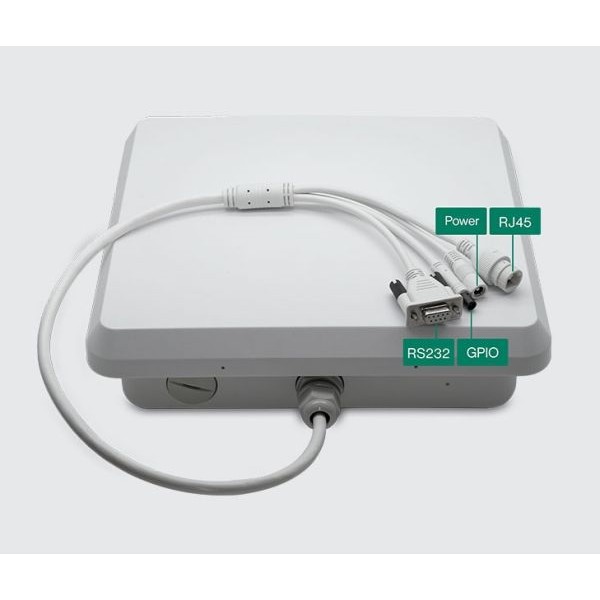

| Comm Interface | RS - 232, RJ45, GPIO | |
| Baud Rate | 115200 bps | |
| Cooling Mode | Air Cooling | |
| Work Current | 800mA +/-5% @ DC 12V Input | |
| Dimension | 270 x 270 x 33mm / 10.63 x 10.63 x 1.30in | |
| UHF RFID : | ||
| Engine | CM710-4 module based on Impinj E710 | |
| Frequency | 902-928 MHz | |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C | |
| Output Power | 2W (33dBm, support +10~+33dBm adjustable) | |
| Output Power Precision | +/- 1dB | |
| Output Power Flatness | +/- 0.2dB | |
| Receive Sensitivity | < -84dBm | |
| RSSI | Support | |
| Ambient Temp Monitor | Support | |
| Fastest Read Rate | Up to 950 tags/s | |
| Antenna Detector | Support | |
| User Environment : | ||
| Operating Temp. | -25°C to 65 °C / -13℉ to 149℉ | |
| Storage Temp. | -40°C to 85°C / -40℉ to 185℉ | |
| Humidity | 10% - 95% | |
| Antenna : | ||
| Frequency | 902-928MHz | |
| Polarization Mode | RHCP (Right-handed Circular Polarization) | |
| Gain | 9dBi | |
| Horizontal Angle | 60° | |
| Vertical Angle | 55° | |
| VSWR | ≤ 1.3 | |
| FBR | 17dB | |
| Characteristic Impedance | 50Ω | |
| Maximum Input Power | 20w | |
| Lightning Protection | DC Ground | |
| Antenna Port | SMA Male | |
Document :
Datasheet [ Link ]
User Manual [ Link ]
Download center [ Link ]
