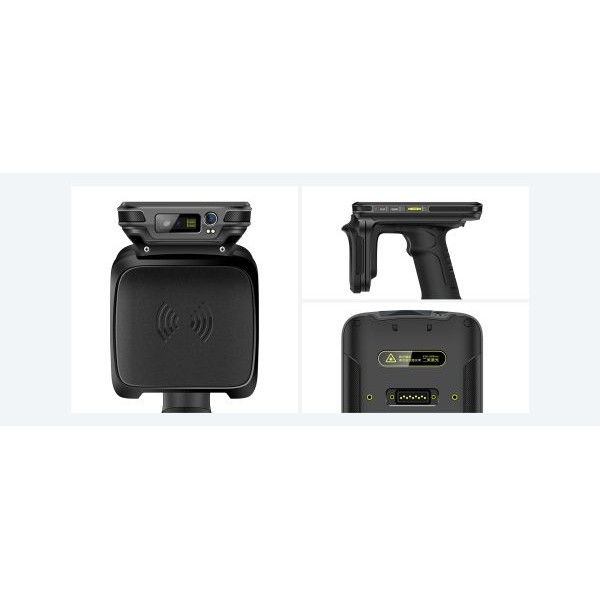

C72-V4 Mobile Computer RAM 4GB ROM 64GB Handheld UHF RFID Reader NFC 13MP Camera WiFi 5.2 inch Touch Display Android 11

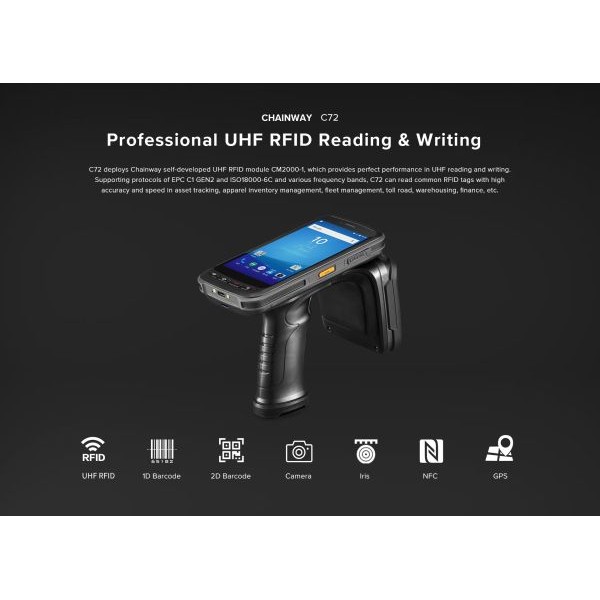

C72 Handheld UHF RFID Reader merupakan reader UHF RFID berbasis Android 11 yang tangguh serta dengan kemampuan terbaik di kelasnya. Reader ini berbasis Impinj E710 dengan kemampuan mendeteksi tag hingga 30 meter di luar ruangan.

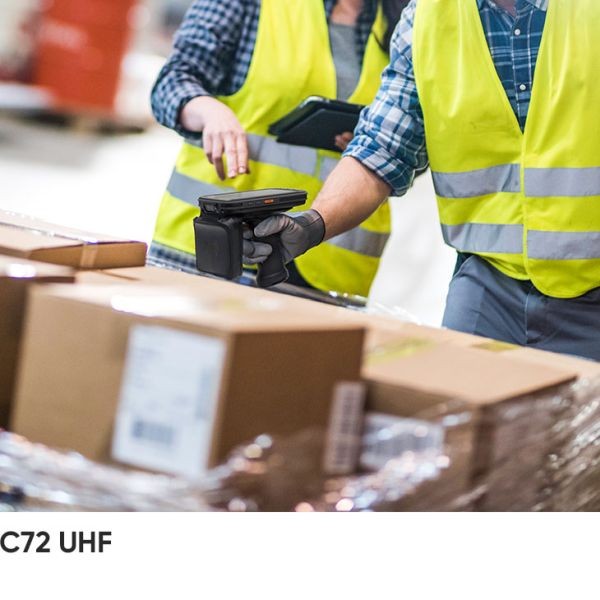

Sudah dibekali dengan prosesor Octa-core Cortex A53 2.3GHz, 4GB RAM, dan memori internal 64GB serta kapasitas baterai super besar 8000mAH yang dapat membantu pengguna untuk banyak aplikasi seperti asset management, ritel, pergudangan, apparel inventory, manajemen kendaraan, dan lain sebagainya.

Fitur:

• Android 11
• Octa-Core 2.3GHz
• RAM + ROM: 4 + 64GB
• 8000mAh Powerfull Battery
• 5.2" IPS 1080P Screen
• Support NFC
• Support UHF RFID (Impinj E710 Chip)
• 13MP Autofocus Camera

Spesifikasi Umum:

• CPU: Octa-core 2.3GHz
• RAM + ROM: 4GB + 64GB
• Interfaces: USB 2.0 Type-C, OTG, Type-C Headphones Supported
• Expansion: Support Up to 256GB Micro SD (TF) Card
• Card Slot: 1 Slot for Nano SIM Card, 1 Slot for Nano SIM or TF Card

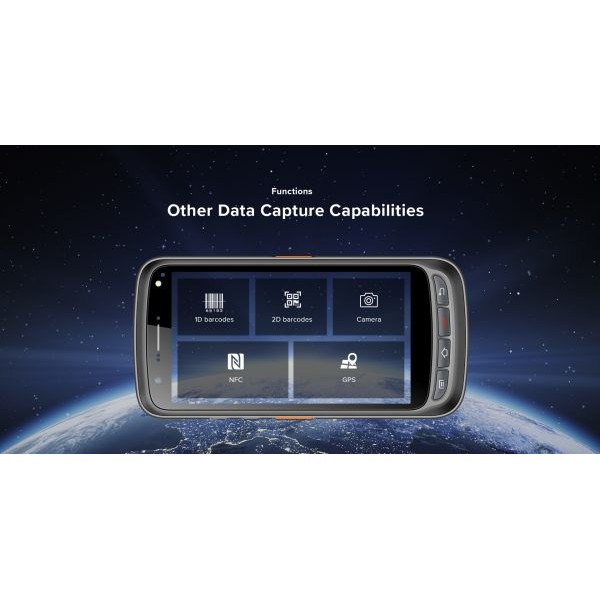

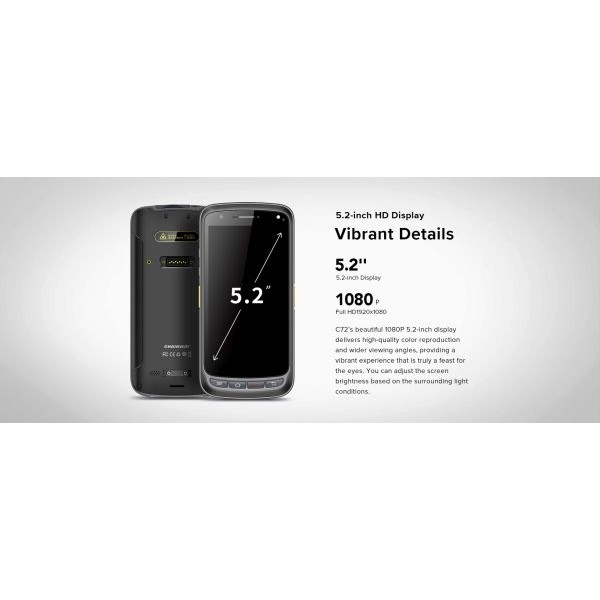

• Display: 5.2" IPS LTPS 1920 x 1080

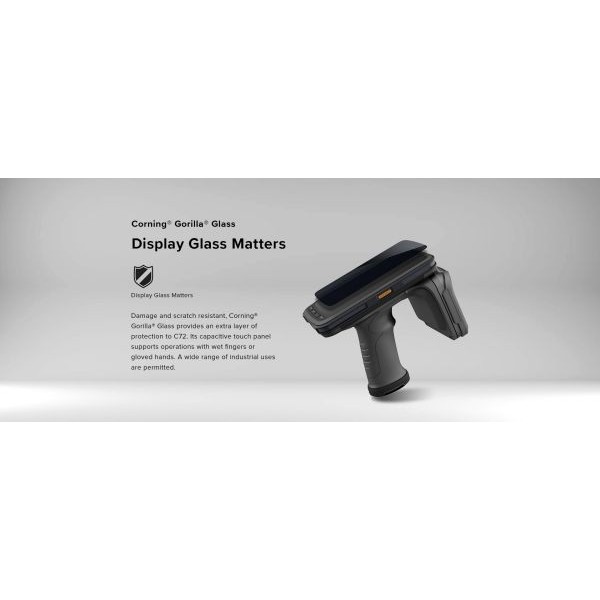

• Touch Panel: Corning Gorilla Glass, Multi-touch Panel, Gloves and Wet Hands Supported
• Battery: Li-Ion 8000mAh (rechargeable)
• Notification: Sound, LED Indicator
• Audio: 1 Microphones ; 1 Speaker; Receiver
• Keypad: 4 Front Keys, 1 Power Key, 2 Scan Keys, 1 Multifunctional Key
• Sensors: Light Sensor, Proximity Sensor, Gravity Sensor
• Camera: 13MP Autofocus with Flash
• Dimensi: 164.2 x 80  24.3 mm

Communication:

• WLAN: Support 802.11 a/b/g/n/ac, 2.4G/5G Dual-Band; Internal Antenna
• Bluetooth: Bluetooth 5.0
• GNSS: GPS/AGPS, GLONASS, BeiDou; Internal Antenna

Developing Environment:

• Operating System: Android  11
• SDK: Chainway Software Development Kit
• Languange: Java
• Tool: Eclipse / Android Studio

User Environment:

• Operating Temperature: -20°C ~ +50°C
• Humidity: 5% RH ~ 95% RH non Condensing
• Sealing: IP65 per IEC Sealing Specifications
• ESD: +- 15KV Air Discharge, +- 6KV Conductive Discharge

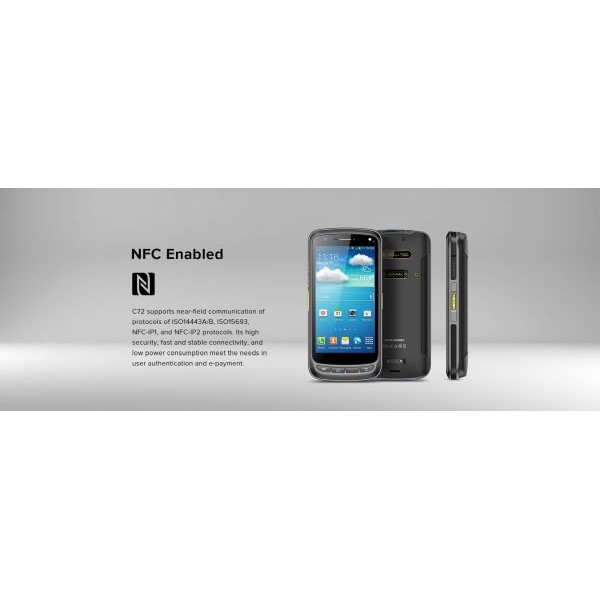

NFC:

• Frequency: 13.56 MHz
• Protocol: ISO1443A/B, ISO15693, NFC-IP1, NFC-IP2
• Chips: M1 Card (S50. S70), CPU Card, NFC Tags
• Range: 2 ~ 4cm

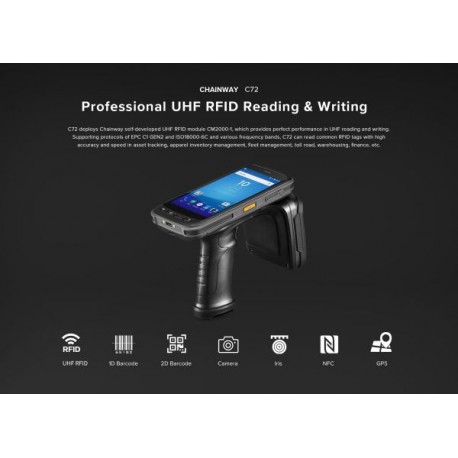

RFID:

• Engine: CM710-1 Module Based on Impinj E710
• Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz
• Protocol: EPC C1 GEN2 / ISO18000-6C, Supports GS1 EPC Gen2v2

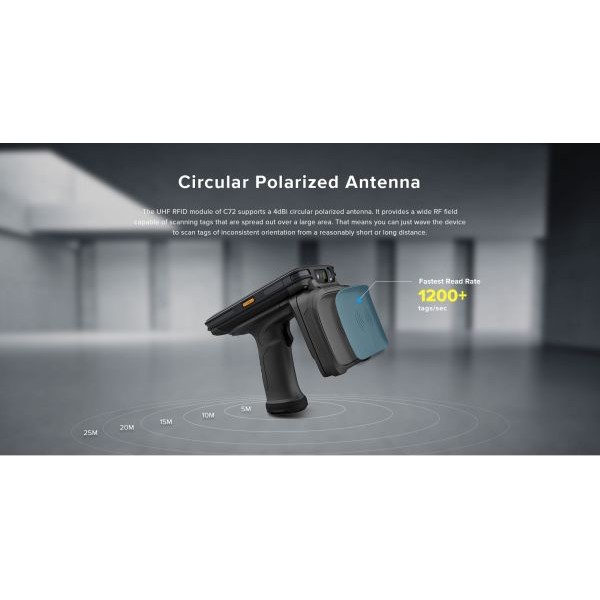

• Antenna: Circular Polarization (4 dBi)
• Power: 1W (30 dBm, +5 dBm to +30 dBm adjustable)
• Max. Read Range: 26m (Impinj MR6 tag, size 70 x 15mm), 28m (Impinj M750 tag, size 70 x 15mm), 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Paket Penjualan:

1x Mobile Terminal C72

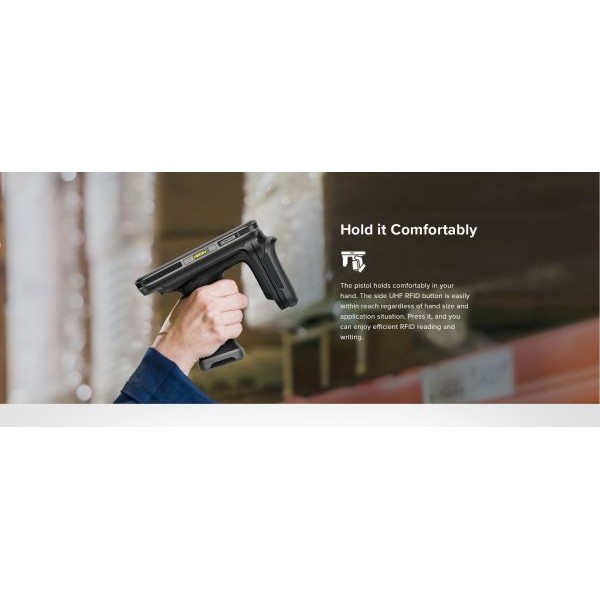

1x Pistol Grip
1x EU Adapter
1x USB Cable Type-C
1x Lanyard
1x SIM Tray Ejector

Dokumen:

1. Datasheet (Link)
2. USer Manual (Link)
3. Accessories Guide (Link)
4. SDK (Link)
