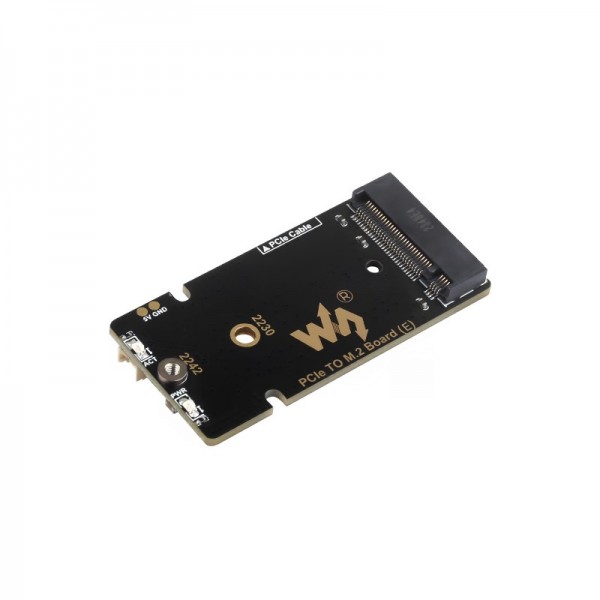

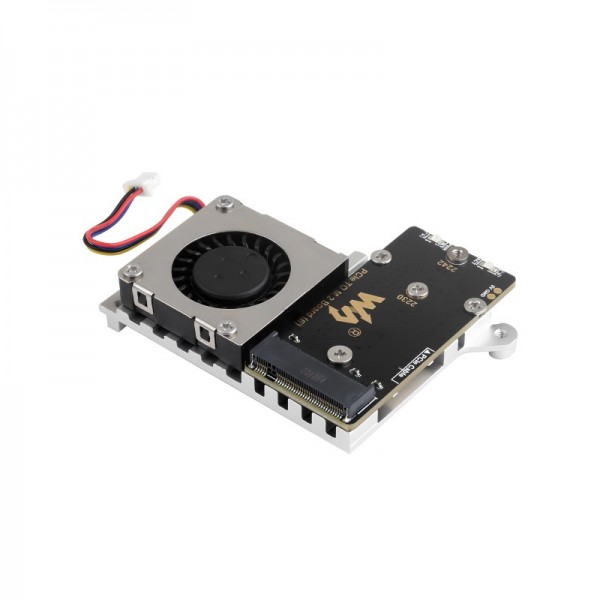

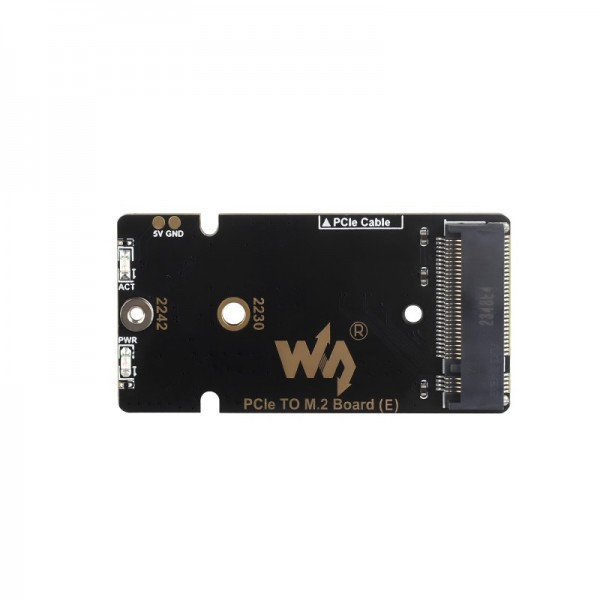

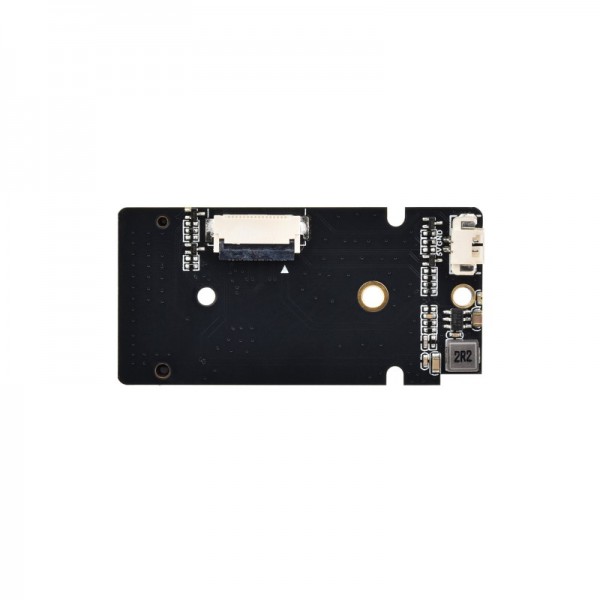

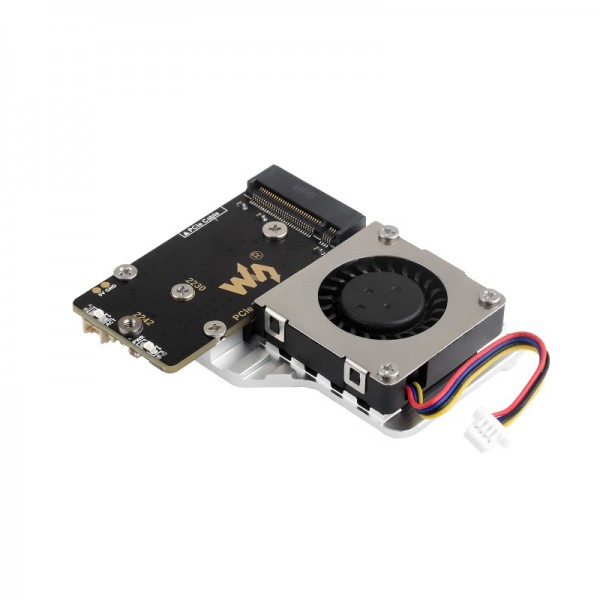

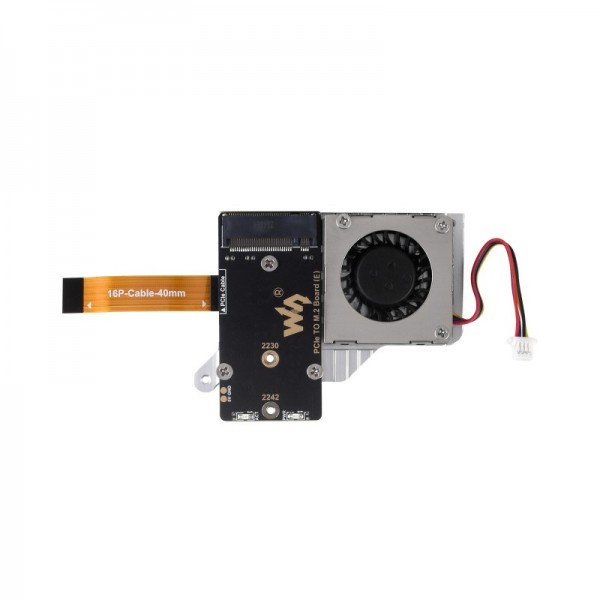

PCIe to M.2 Adapter (E) for Raspberry Pi 5 with Fan, NVMe SSD 2230/2242 High-Speed Read/Write

PCIe to M.2 Adapter Board for Raspberry Pi merupakan HAT yang dirancang khusus untuk Raspberry Pi sehingga pengguna dapat menambahkan storage NVME SSD super cepat melalui interface PCIe.

Fitur:

• Support High Speed NVMe Storage (Up to Gen3)

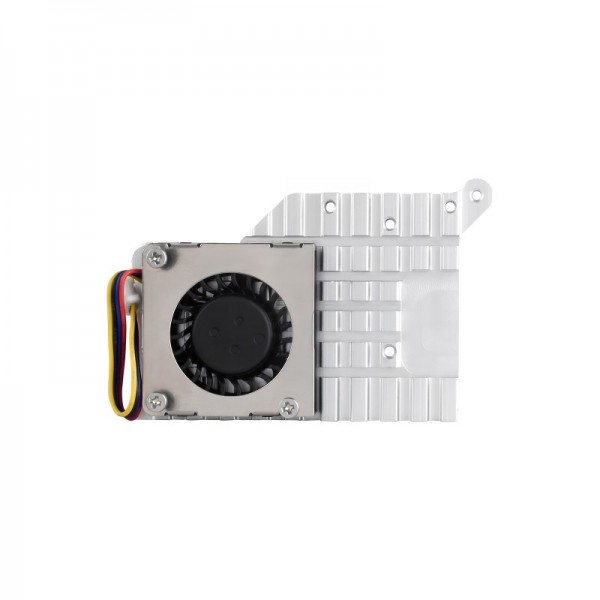

• Sistem Pendingin Terintegrasi
• Desain Compact & Industrial Ready
• Interface PCIe Native
• Support Boot dari SSD
• Mendukung ukuran NVME 2230 dan 2242

Spesifikasi:

• Fan Input Voltage: 5VDC (supplied via four-pin fan header on Raspberry Pi 5)
• M.2 M Key Interface: Supports NVMe Solid State Drives (PCIe Gen2/3)
• Solid State Drive Size Support: 2242, 2230
• Fan Speed Control: Pulse width Modulation Control with Tachometer
• Maximum Airflow: 1.39 CFM
• Fan Speed: 8000 +- 10% RPM
• Material: Anodised Aluminium

Paket Penjualan:

1x PCIe to M.2 Board (E)
1x MX1.25 2 Pin Cable
1x Thermal Pad (3 Pcs)
1x Screws Pack

Dokumen:

1. Datasheet (Link)
