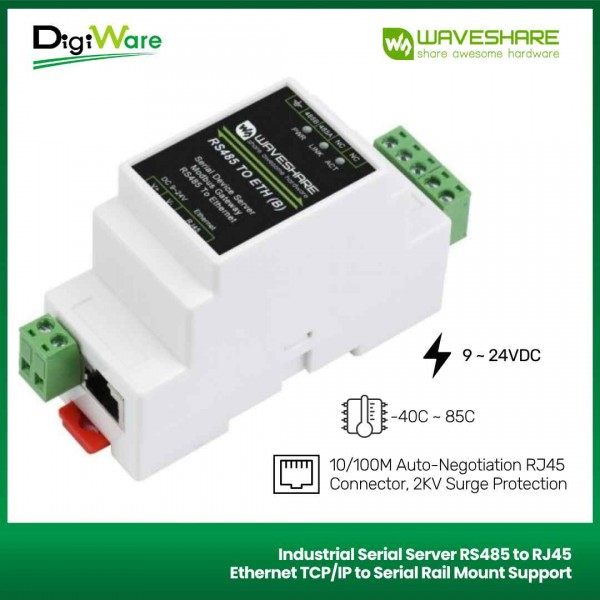

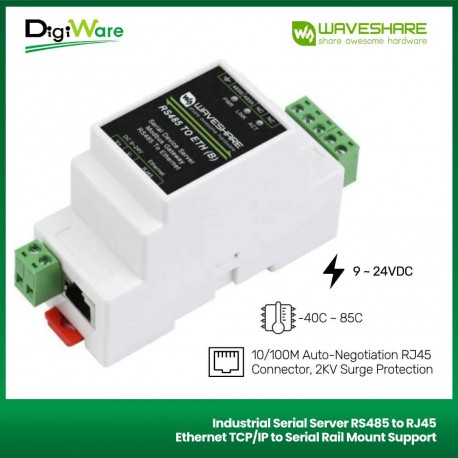

Industrial Serial Server RS485 to RJ45 Ethernet TCP/IP to Serial Rail Mount Support

433-075

Product Stock
Surabaya4 pcs

Close

Rp 432.600

Add to wishlist

Free Google QRcode module from Mediacom87

Industrial Serial Server RS485 to RJ45 Etherter TCP merupakan konverter Serial RS485 ke TCP/IP. Konverter ini dapat digunakan sebagai sarana komunikasi antara device dengan komputer untuk keperluan Internet of Things (IoT). Baudrate serial yang mampu ditangani oleh konverter ini dalam range 300 ~ 115200 bps dengan data bit sebanyak 5 ~ 9 bit.

Konverter ini memiliki bentuk yang dapat dipasang pada Rail yang sering digunakan untuk panel-panel listrik maupun panel kontrol.

Fitur :

    • Rail-mount
    • Modus Gateway
    • Multi Communications
    • Support MQTT & JSON
    • Multi Host Support
    • Multi Features
    • Host/Webpage Config
    • Industrial Quality

Spesifikasi :

    • Catu Daya : 9 ~ 24VDC
    • Antarmuka Komunikasi : RS485, Screw Terminal, Support 32x Slave Device
    • Ethernet : 10/100M Auto-Negotiation RJ45 Connector, 2KV Surge Protection
    • Serial Port : 1x RS485 (RXD, TXD, GND)
    • Baudrate : 300 ~ 115200 bps
    • Parity Bit : None, Odd, Even, Mark, dan Space
    • Data Bit : 5 ~ 9 bits
    • Flow Control : N/A
    • Suhu Operasi : -40C ~ 85C
    • Kelembapan : 5% ~ 95%

Spesifikasi Software :

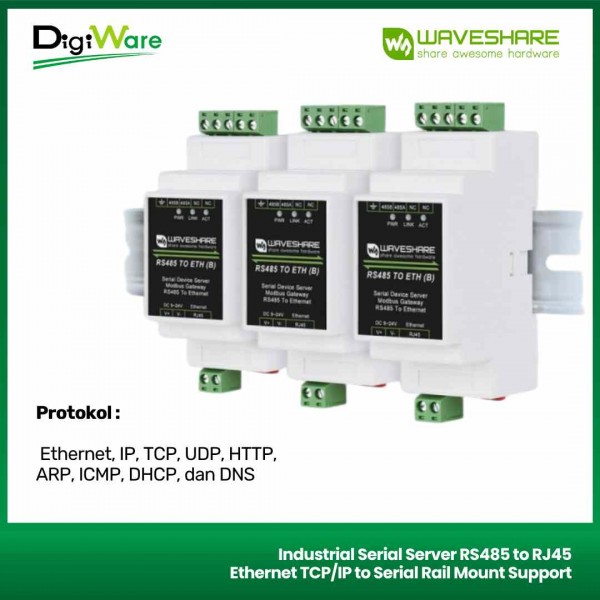

    • Protokol : Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, dan DNS
    • Konfigurasi : Host, Web Browser, Device Management Functions Library
    • Metode Konfigurasi : TCP/IP Direct Communication, VCOM

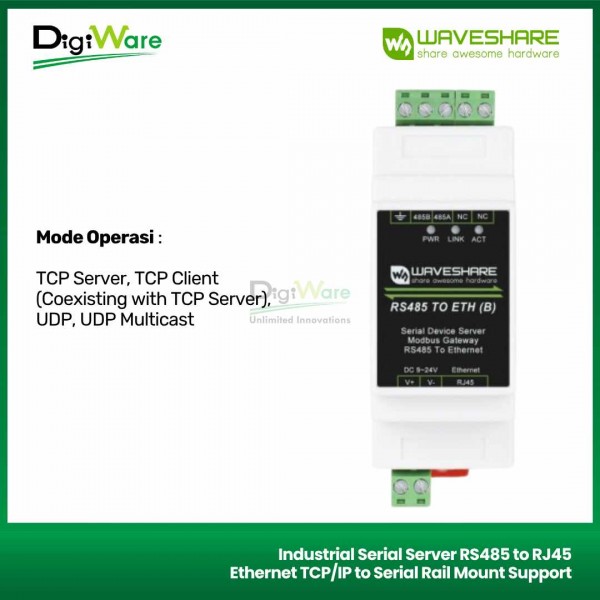

    • Mode Operasi : TCP Server, TCP Client (Coexisting with TCP Server), UDP, UDP Multicast

Dokumen :

1. Wiki RS485 to Eth (B) (Link)
2. User Manual (Link)
3. MQTT dan JSON Manual (Link)
4. Virtual Serial Port Control (Software) (Link)

Produk Terkait :

1. Industrial USB to RS485 Converter
2. USB to RS232 RS485 TTL Isolated Converter Industrial
3. USB to RS485 Converter USB to Port Serial Support Windows 7/8
