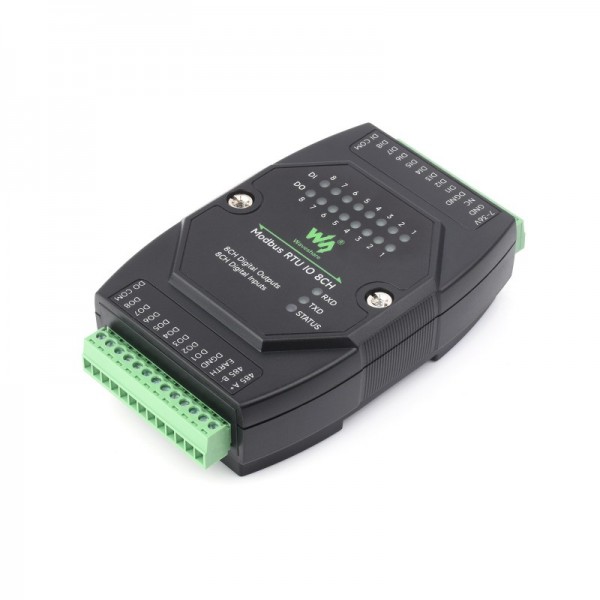

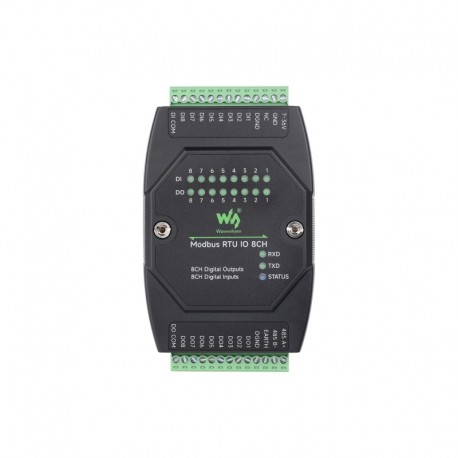

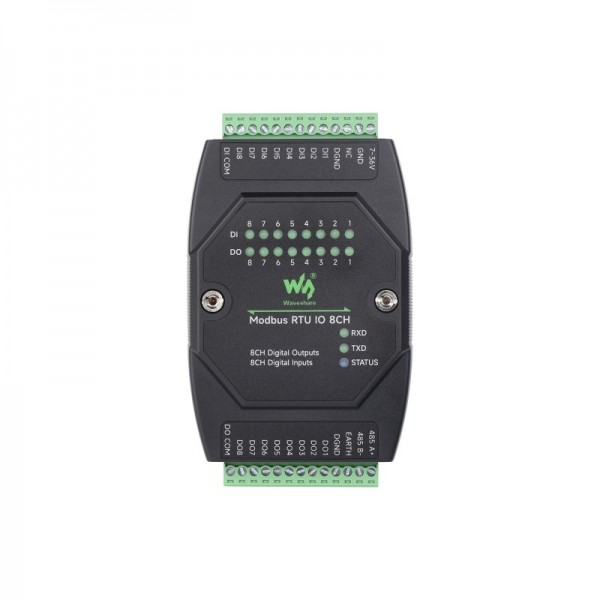

Industrial 8 Channel Digital Input Output Module DC 7-36V Wide Voltage Power Supply Modbus RTU Protocol

Industrial 8 Channel Digital Input Output Module merupakan perangkat antarmuka digital berbasis protokol Modbus RTU yang menyediakan 8 channel input isolated maupun output digital yang dirancang untuk terintegrasi dengan sistem industri. Perangkat ini memungkinkan kontrol perangkat maupun monitoring status melalui komunikasi serial RS485.

Fitur:

• DC 7 ~ 36V Wide Voltage Power Supply
• Support Modbus RTU Protocol
• Multiple Isolation Protection Circuits
• DI/DO Linkage Control
• Configurable Device Address (1 ~ 255)

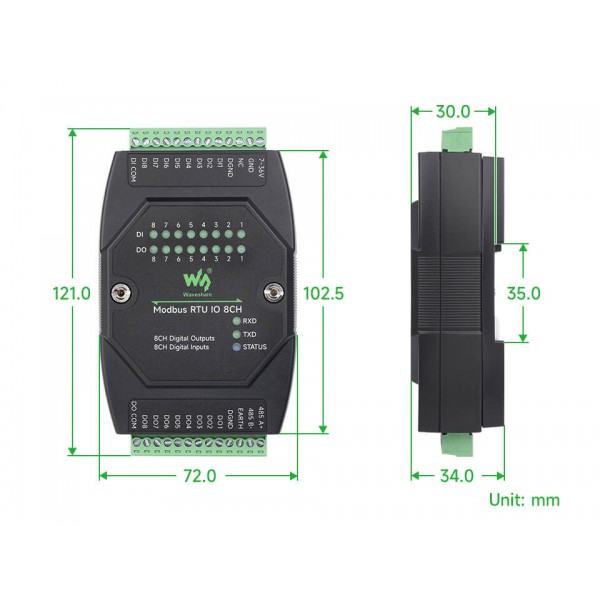

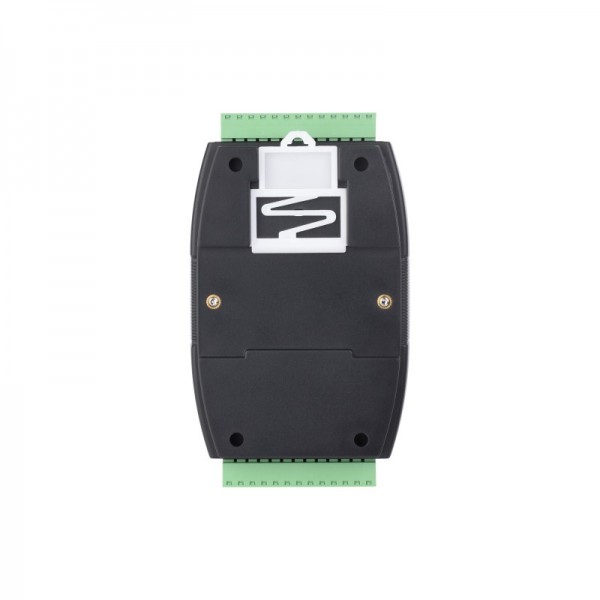

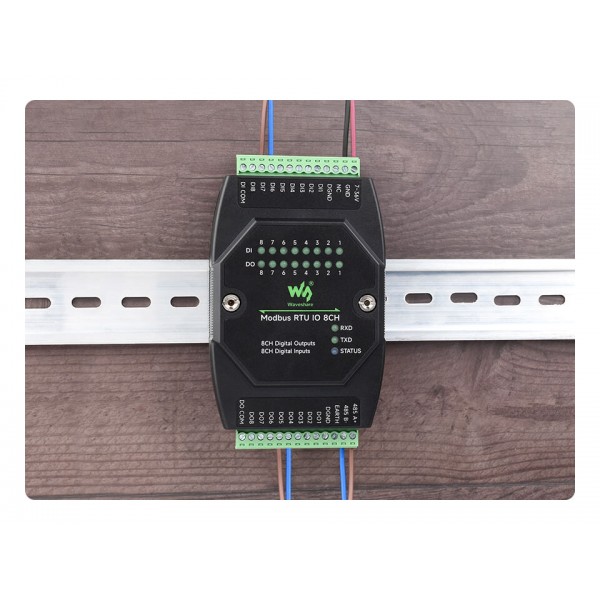

• Rail-mount Case Design, support Stacking Combination
• Easy to Install and Safer to Use

Spesifikasi:

• Power Supply: DC 7 ~ 36V
• Communication Interface: RS485
• Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
• Default Communication Format: 9600, N, 8, 1
• Modbus Protocol: Standard Modbus RTU Protocol
• Digital Input: 8xDI, 5 ~ 36V, support PNP/NPN, built-in Bi-directional Optocoupler Isolation
• Digital Output: 8xDO, 5 ~ 36V, Open-drain Output, Output Load: 500 mA per channel (Maks)

Dokumen:

1. Datasheet (Link)
