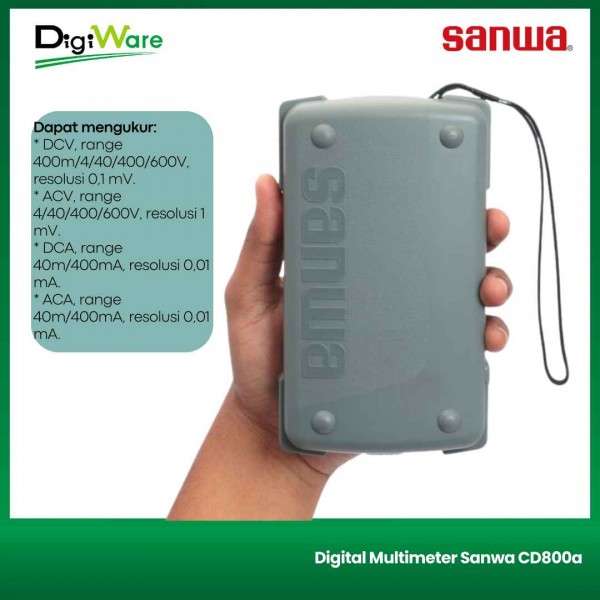

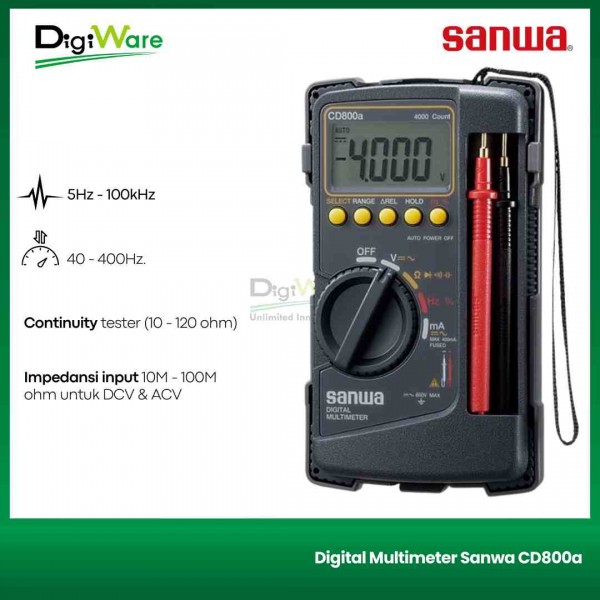

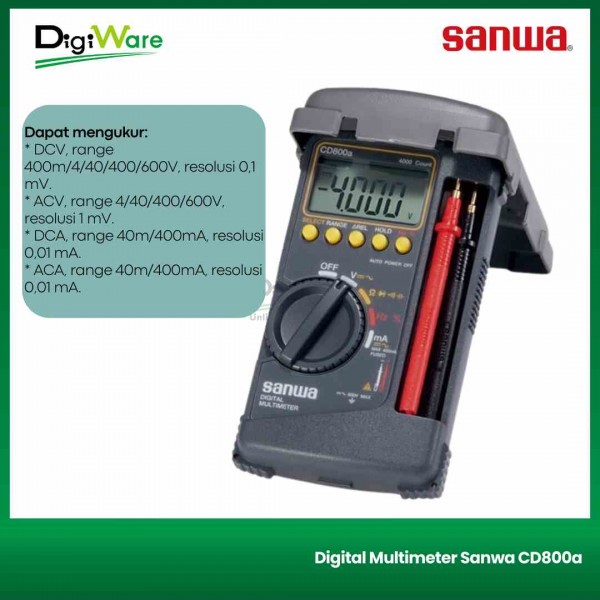

Digital Multimeter Sanwa CD800a

Digital Multimeter tipe CD800a merek SANWA.
Spesifikasi:
- 3-3/4 digit, 4000 hitungan.
- Dapat mengukur:
* DCV, range 400m/4/40/400/600V, resolusi 0,1 mV.
* ACV, range 4/40/400/600V, resolusi 1 mV.
* DCA, range 40m/400mA, resolusi 0,01 mA.
* ACA, range 40m/400mA, resolusi 0,01 mA.
* Resistance, range 400/4k/40K/400k/4M/40M ohm, resolusi 0,1 ohm.
* Capacitance: range 50n/500n/5µ/50µ/100µF, resolusi 0,01nF.
* Frekuensi, range 5Hz - 100kHz.
* Duty cycle, range 20% - 80%.
- Continuity tester (10 - 120 ohm).
- Diode test, tegangan output 1,5V (open).
- Bandwidth 40 - 400Hz.
- Impedansi input 10M - 100M ohm untuk DCV & ACV.
- Auto range selection.
- Auto power off.
- Fuse protection.
