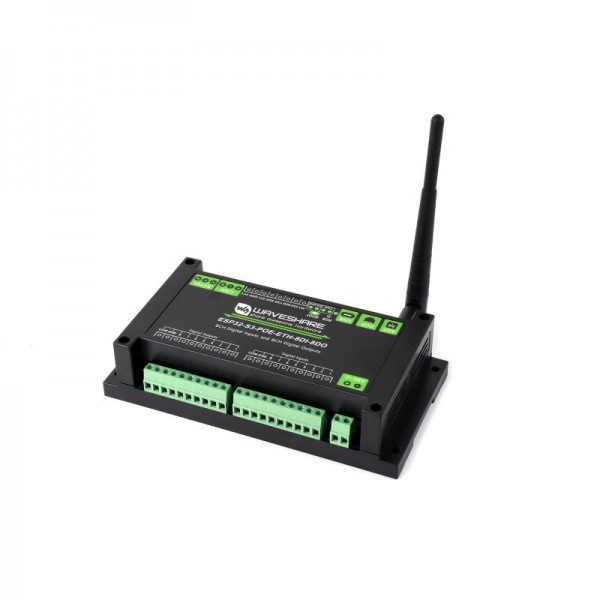

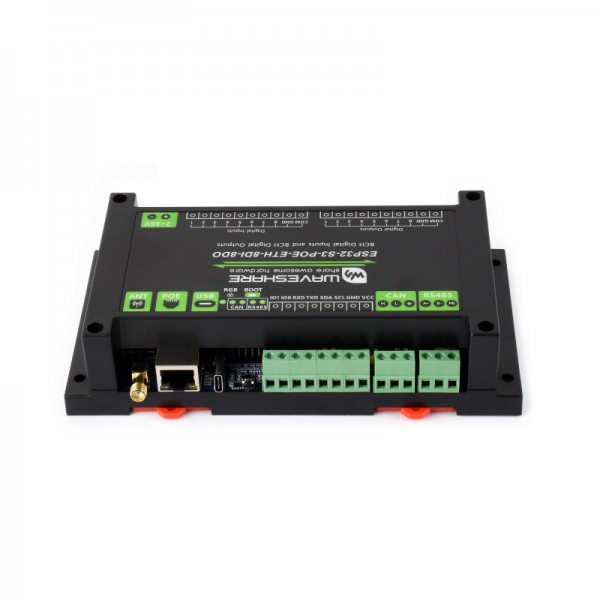

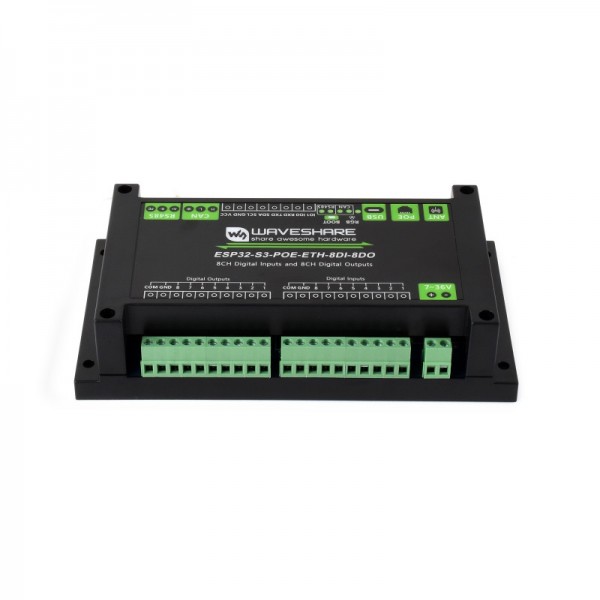

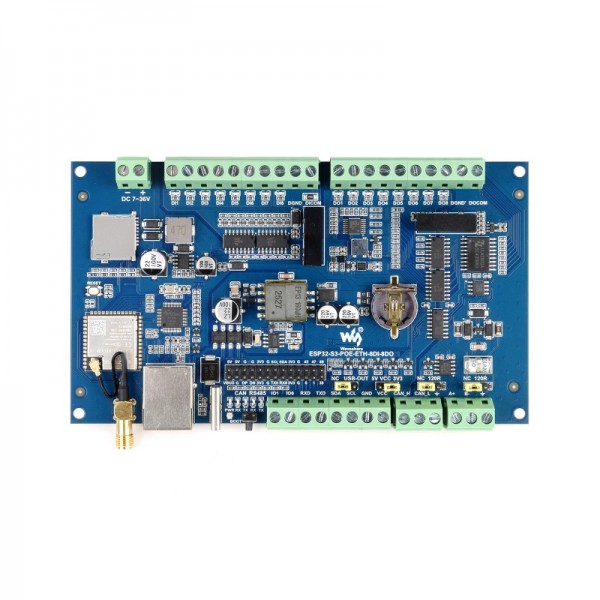

Industrial ESP32-S3 Control Board With 8-Channel Digital Input &amp Output with Multiple Isolation Protection Circuits

Industrial ESP32-S3 merupakan kontroler industrial berbasis mikrokontroler powerfull ESP32-S3 yang sudah built-in WiFi dan Bluetooth Low Energy. Selain itu, kontroler ini juga dilengkapi dengan 8-Channel Digital Input maupun output yang terisolated sehingga sangat aman digunakan di lingkungan industri yang banyak noise.

Kontroler ini dilengkapi dengan interface serial RS485 dan CAN yang dapat terhubung dengan perangkat-perangkat RS485 maupun CAN yang ada di industri dan tentunya support dengan protokol Modbus maupun CAN Bus.

Fitur:

• Based on ESP32-S3 Microcontroller
• Integrated 2.4GHz WiFi and Bluetooth LE
• Onboard Isolated RS485
• Onboard Isolated CAN Interface
• Onboard PoE IEEE 802.3af Standard
• Onboard USB Type-C Port for Power Suppy, Firmware Downloading and Debugging
• Onboard TF Card Slot for External TF Card Storage
• Built-in Buzzer, RGB LED, Power Supply and RS485 TX/RX Indicators
• Rail-mounted ABS Case, Easy to Install, Safe to Use

Spesifikasi:

• Microcontroller: ESP32-S3
• Wireless Communication: 2.4GHz WiFi (802.11 b/g/n), Bluetooth 5, dan BLE
• USB:
• Connector: Type-C
• Power Supply: 5V
• Functions: Power Supply, USB Communication, Firmware Downloading
• Serial RS485 Interface:
• Interface: RS485
• Connector: Screw Terminal
• Direction Control: Automatically Controlled via Main Controller Hardware Flow Settings
• Protection: TVS Diode, Surge Protection dan ESD Protection
• Resistor: Onboard 120R Matching Resistor (configuranle)
• Serial CAN Interface:
• Connector: Screw Terminal
• Direction Control: Hardware Automatic Control
• Protection: TVS Diode, Surge Protection & ESD Protection
• Resistor: Onboard Reserved 120R Mathing Resistor
• Ethernet Interface: PoE Ethernet Port (supports IEEE 802.3af Standard)
• Digital Output:
• Output Channel: 8 Channels
• Input Voltage: 5V ~ 40V
• Output Type: Open-drain Output with Load Capacity of 500mA per Channel (Max)
• Isolation Type: Optocoupler Isolation
• Digital Input:
• Input Voltage: 5V ~ 36V
• Input Type: Passive Input/Active Input (NPN or PNP type)
• Isolation Type: Bi-directional Optocoupler Isolation
• LED Indicators:
• RGB: RGB Colorful LED, supports Proggrammable Control of Display Color
• PWR: Red Power Indicator
• TXD: Green TX Indicator
• RXD: Blue RX Indicator
• Power Supply Screw Terminal: 7 ~ 36V
• Appearance:

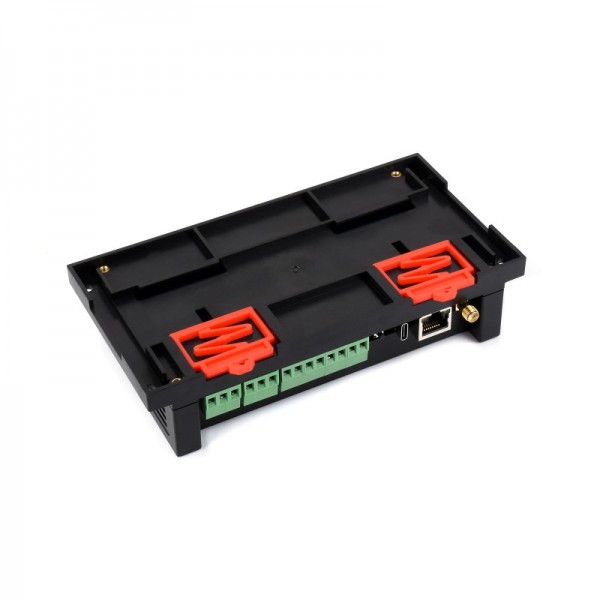

• Enclosude: Rail-mount ABS Protective Case
• Dimensi: 17 x 90 x 40mm

Paket Penjualan:

1x Kontroler ESP32-S3 1x
1x 2.4G 4DB SMA Antenna
1x Screwdriver

Dokumen:

1. Wiki (Link)
