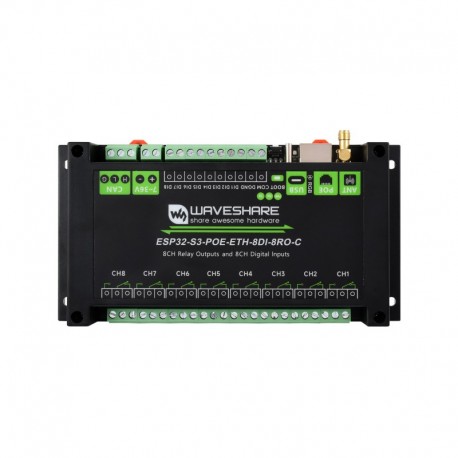

Industrial 8-Channel ESP32-S3 WiFi Relay Module, Onboard Isolated CAN Interface with Multiple Isolation Protection Circuits PoE

Industrial ESP32-S3 merupakan kontroler industrial berbasis mikrokontroler powerfull ESP32-S3 yang sudah built-in WiFi dan Bluetooth Low Energy. Selain itu, kontroler ini juga dilengkapi dengan 8-Channel Digital Input maupun 8 Channel Relay output yang terisolated sehingga sangat aman digunakan di lingkungan industri yang banyak noise.

Kontroler ini dilengkapi dengan interface CAN yang dapat terhubung dengan perangkat-perngkat CAN yang ada di industri dan tentunya support dengan protokol CAN Bus. Selain itu juga sudah built-in PoE (supports IEEE 802.3af Standard).

Fitur:

• Based on ESP32-S3 Microcontroller with Xtensa 32-bit LX7 Dual-core Processor
• Integrated 2.4GHz WiFi and Bluetooth LE Dual-mode Wireless Communication
• High Quality Relay, Contact RatingL <= 10A 250V AC / 30V DC
• Onboard Isolated CAN Interface
• Onboard USB Type-C Port for Power Supply, Firmware Downloading and Debugging
• Onboard Power Supply Screw Terminal, supports 7 ~ 36V Wide Voltage Input, suitable for Industrial Applications
• Onboard RTC Chip, supports Scheduled Tasks
• Onboard PoE IEEE 802.3af Standard
• Onboard TF Card Slot for External TF Card Storage
• Built-in Buzzer, RGB LED, Power Supply and CAN TX/RX Indicators

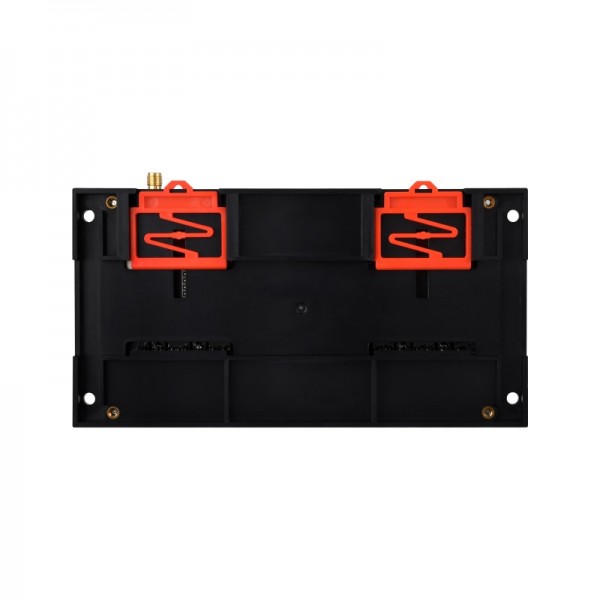

• Rail-mounted ABS Case, Easy to Install, Safe to Use

Spesifikasi:

• Microcontroller: ESP32-S3 WROOM 1U N16R8
• Wireless Communication: 2.4GHz WiFi (802.11 b/g/n), Bluetooth 5, BLE
• USB:
• Connector: USB Type-C
• Power Supply: 5V
• Functions: Power Supply, USB Communication, Firmware Downloading
• Serial Interface:
• Interface: CAN
• Connector: Screw Terminal
• Direction Control: Hardware Automatic Control
• Protection: TVS Diode, Surge Protection dan ESD Protection
• Resistor: Onboard Reserved 120R Matching Resistor
• Ethernet Interface: PoE Ethernet Port (supports IEEE 802.3af Standard)
• Digital Input:
• Input Channels: 8
• Input Voltage: 5V ~ 36V
• Input Type: Passive Input/Active Input (NPN or PNP type)
• Isolation Type: Bi-directional Optocoupler Isolation
• Relay:
• Contact Rating: <= 10A 250V AC / 30V DC
• Relay Channels: 8
• Contact Form: 1NO 1NC
• Isolation Type:Optocoupler Isolation
• LED Indicators:
• RGB: RGB Colorful LED, supports Proggrammable Control of Display Color
• PWR: Red Power Indicator
• TXD: Green TX Indicator
• RXD: Blue RX Indicator
• Power Supply Screw Terminal: 7 ~ 36V
• Appearance:
• Enclosude: Rail-mount ABS Protective Case
• Dimensi: 17 x 90 x 40mm

Paket Penjualan:

1x ESP32-S3 PoE 8DI 8DO
1x 2.4G 4DB SMA Antenna
1x Screwdriver

Dokumen:

1. Wiki (Link)
