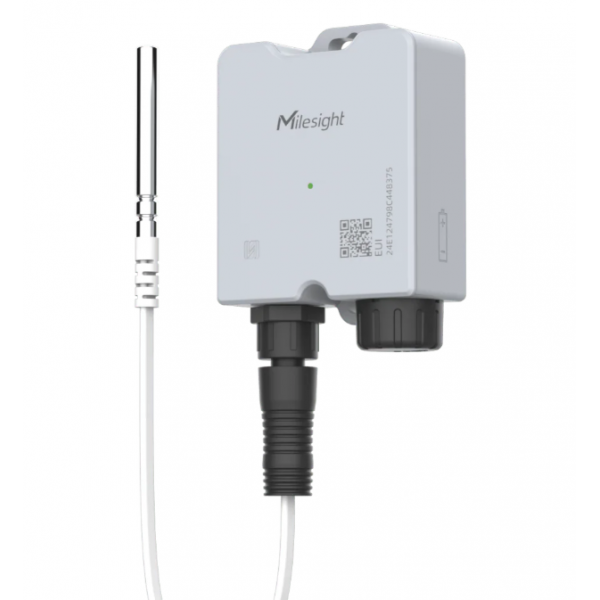

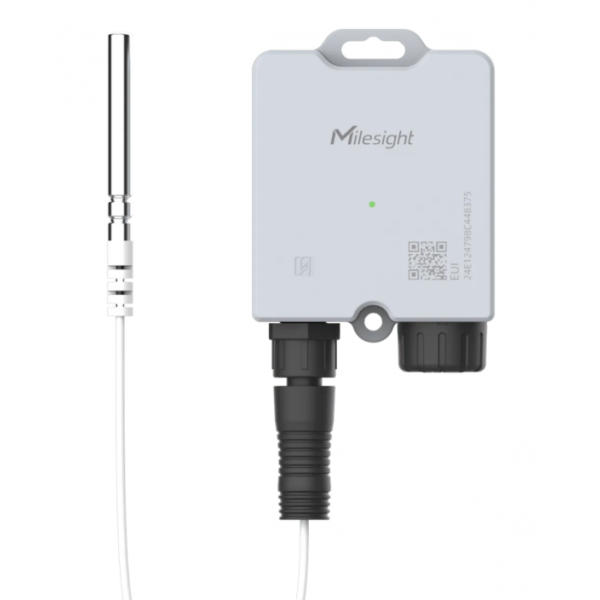

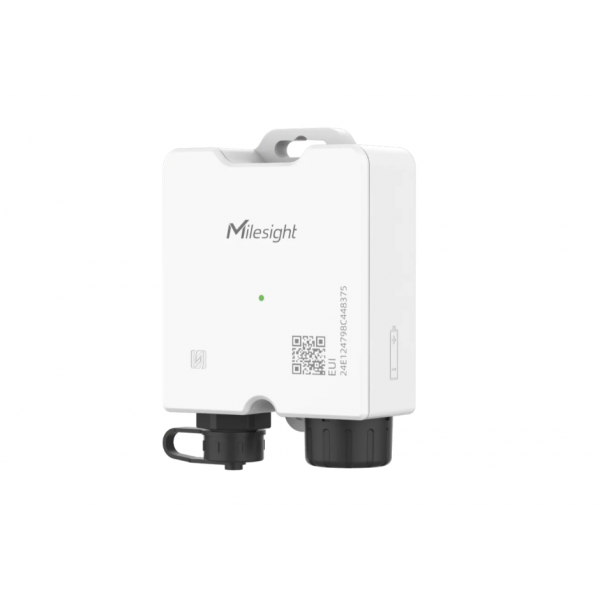

TS201 LoRaWAN Cost Effective Temperature Sensor

TS201 merupakan sensor suhu berbasis LoRaWAN yang sudah dilengkapi dengan sensor DS18B20 berpresisi tinggi yang dapat digunakan untuk pengukuran suhu dengan akurat. Selain itu, perangkat ini juga memiliki proteksi tahan air IP67 yang cocok untuk berbagai jenis lingkungan keras. Built-in LoRa transceiver sehingga kompatibel dengan beragam skenario IoT yang menggunakan protokol LoRaWAN.

Fitur:

• LED Light Status Indicator
• Rugged IP67 Rating
• Up to 2.800/4.000 Sets of Data Logging
• Comply with EN12830 Standard
• Small and Compact for Flexible Installation
• LoRaWAN Wireless Deployment
• Average Battery Life: 3 Years
• Ideal for Cold Chain and Pharmaceutical
• Support Independent Calibration of Probe

Spesifikasi:

• Connector Type: 5-Pin M12 A-Coded Male Connector
• Connector Number: 1x Connector for DS18B20 Sensor
• Sensor Type: DS18B20
• Measuring Range: -40° ~ +125°C
• Accuracy: +- 0.5°C (10°C ~ 85°C), +- 2°C (-40°C ~ -10°C, 85°C ~ 125°C)
• Resolution: 0.1°C
• Long-term Drift: Type. < 0.2°C (125°C, VDD = 5.5V, 1000h)

Wireless Transmission:

• Teknologi: LoRaWAN
• Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1,2,3,4
• Tx Power: 16dBm (868 MHz)/22 dBm (915MHz)/19 dBm (470 MHz)
• Sensitivity: -137dBm @300bps
• Mode: OTAA/ABP Class A

Physical Characteristics:

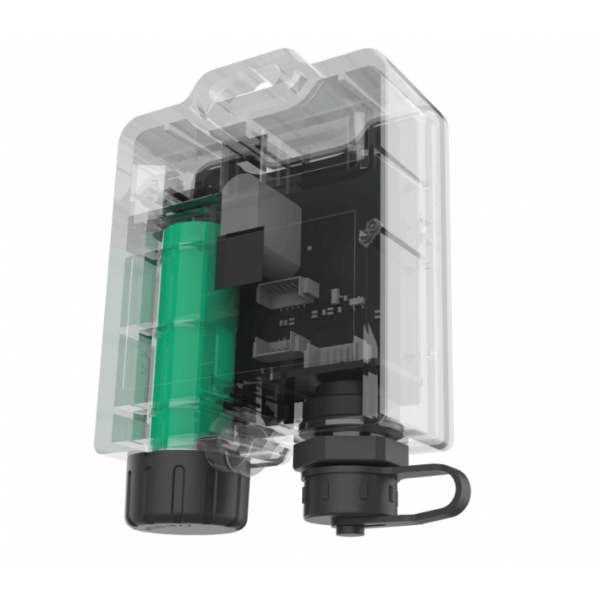

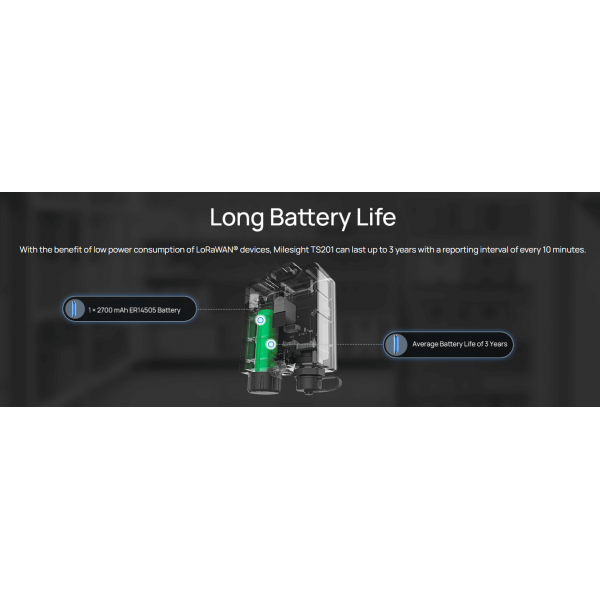

• Power Supply: 1x 2700mAh ER14505 Li-SOCI2 Battery
• Battery Life (10 min Interval, 25°C): Around 8.2 Years (SF7, EU868 & US915), Around 2.7 Years (SF10, EU868 & US915)
• LED Indicator: 1x Status Indicator

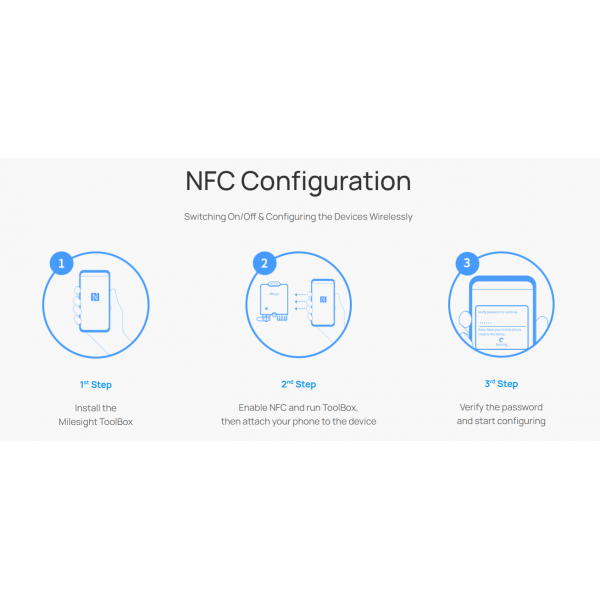

• Configuration: Mobile App (via NFC) or Downlink
• Operating Temperature: -30°C ~ +55°C
• Relative Humidity: 0% ~ 95% (Non-condensing)

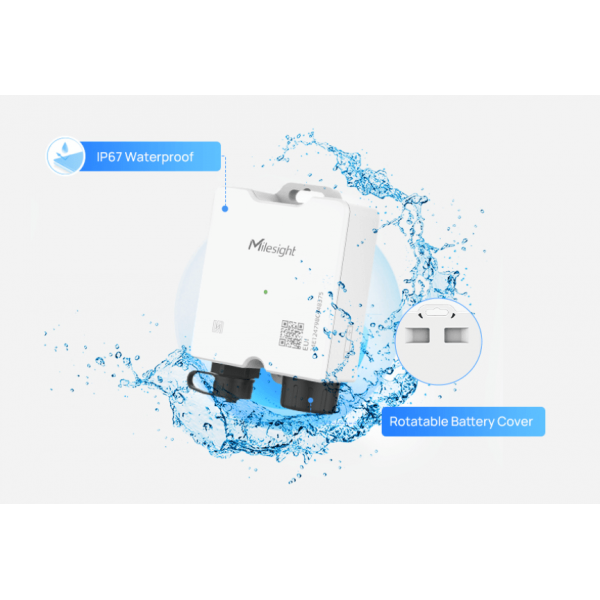

• Ingress Protection: IP67
• Dimensi: 58 x 65 x 25mm

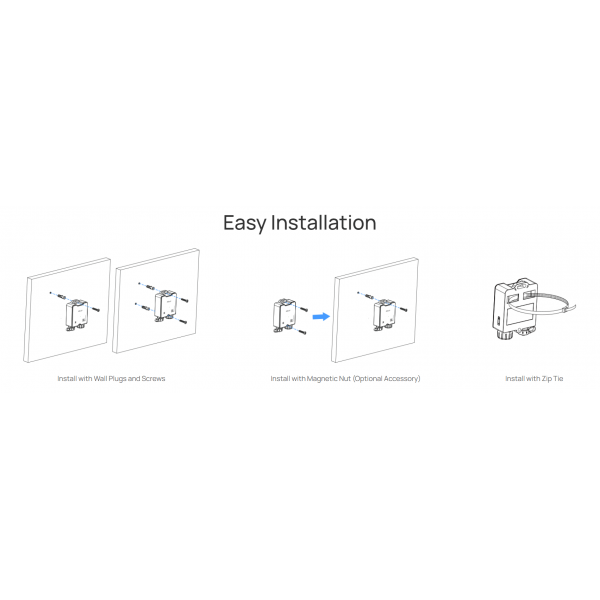

• Installation: Wall Screw Mounting, Cable-tie Mounting, Magnetic Mounting (Opt.)

Dokumen:

1. Datasheet (Link)
2. User Guide (Link)
3. Payload Decoder (Link)
4. Firmware & SDK Download (Link)
