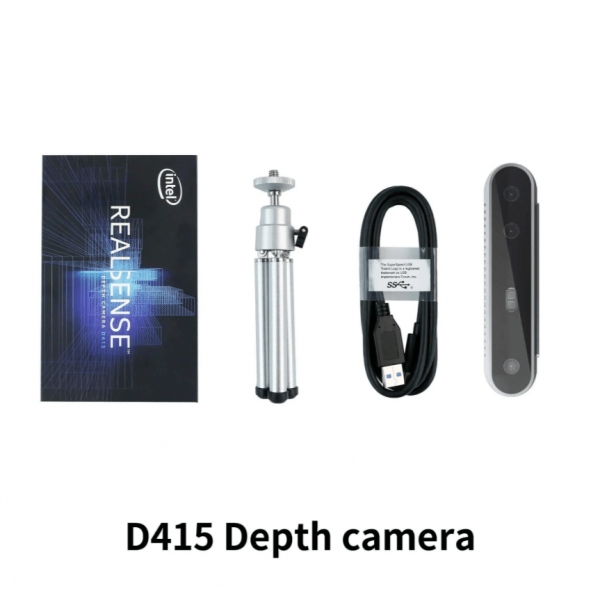

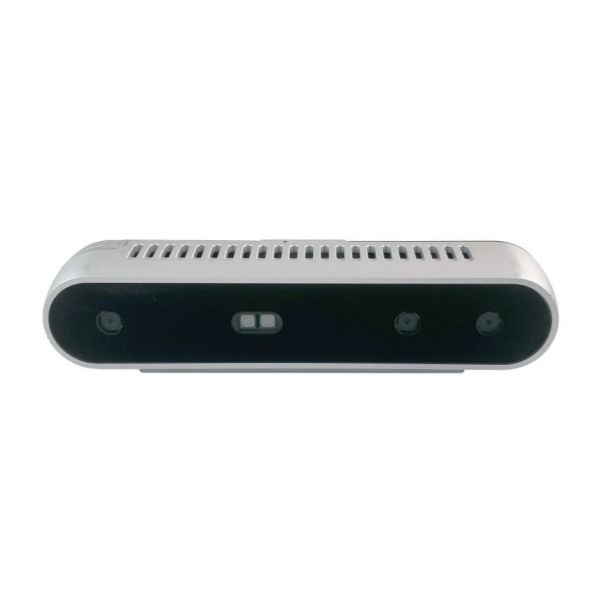

Intel RealSense Depth Camera D415

Intel RealSense Depth Camera D435 merupakan kamera 3D dari seri Intel RealSense D400, dibuat khusus untuk menangkap citra kedalaman (depth) selain gambar biasa (RGB). Selain dapat menangkat citra gambar (RGB), kamera ini dapat mendeteksi jarak dari suatu objek sehingga sangat cocok diaplikasikan dalam robotika yang mengintegrasikan AI dan computer vision.

Fitur:

• Powerful Visual Processor
• High-resolution Image Sensor
• Dedicted Color Image Signal Processor
• Support The New Cross-Platform Open Source Intel RealSense SDK 2.0

Spesifikasi:

• Model: Intel RealSense D415
• Depth Technology: Stereoscopic
• Image Sensor Technology: Rolling Shutter
• Depth FoV (H x V): 65° x 40°
• Depth Resolution: Up to 1280 x 720
• Depth Accuracy: < 2% at 2m²
• Depth Frame Rate: Up to 90fps
• RGB Sensor Technology: Rolling Shutter
• RGB Sensor Resolution: 2MP
• RGB Frame Rate and Resolution: 1920 x 1080 at 30fps
• RGB Sensor FOV (H x V): 69° x 42°
• Inertial Measurement Unit: None
• Minimum Depth Distance: ~ 45cm
• Ideal Range: 0.5m ~ 3m
• Main Components: Intel RealSense Vision Processor D4, Intel RealSense Depth Module D415
• Dimensi: 90 x 25 x 25mm
• Connectors: USB-C 3.1 Gen 1

Dokumen:

1. Intel RealSense D400 Series Dynamic Calibration Tool (Link)

Produk Terkait:

1. Intel RealSense Depth Camera D435i
2. Intel RealSense Depth Camera D455
