LTE Cat 4 EC25 EUX Mini PCIe 2G/3G/4G built-in Multiple GNSS EMEA and Thai Operators Supported

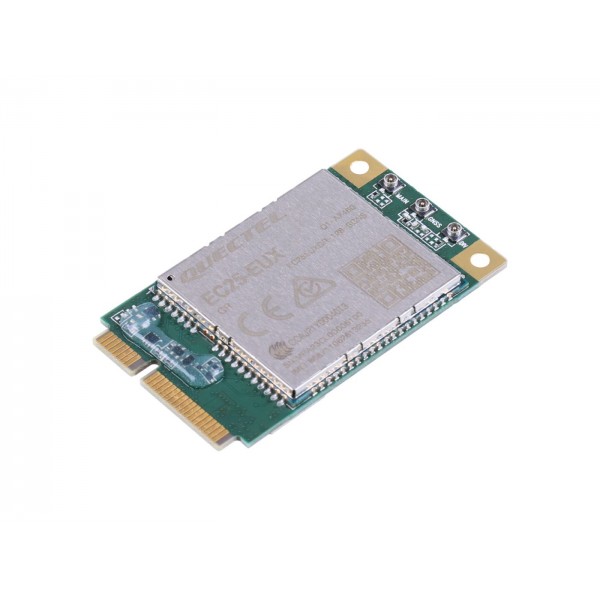

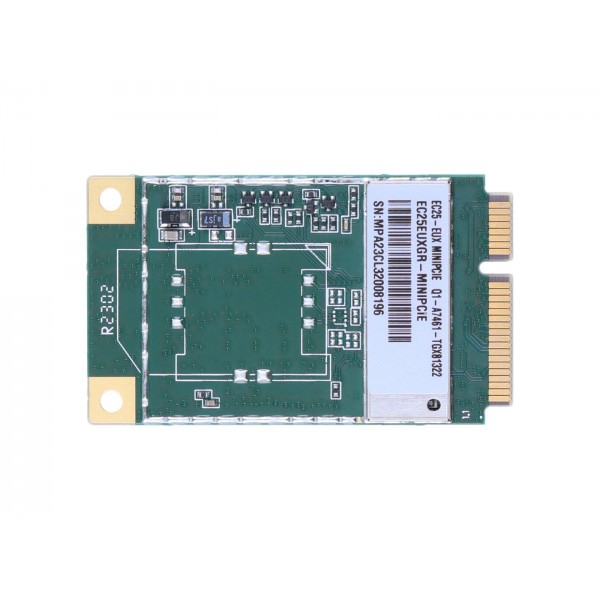

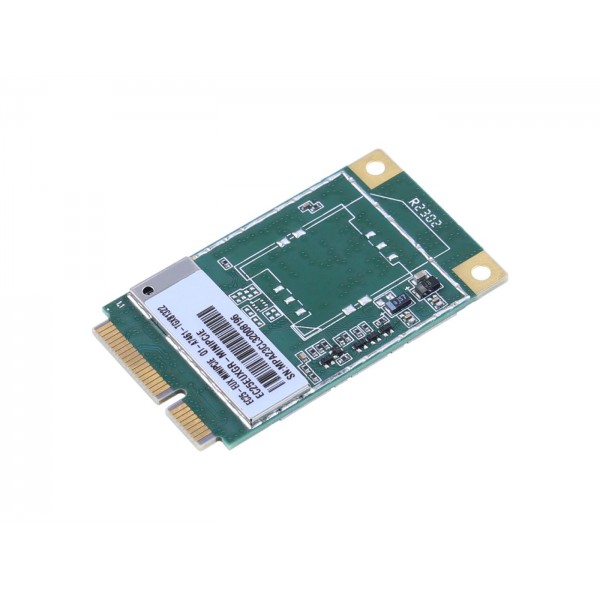

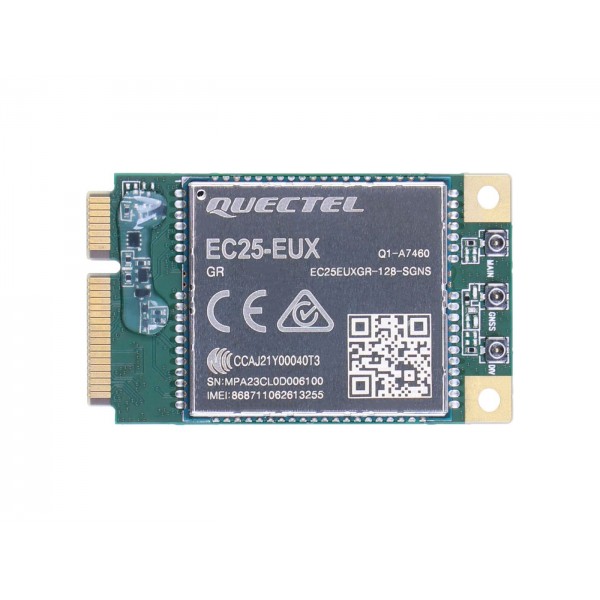

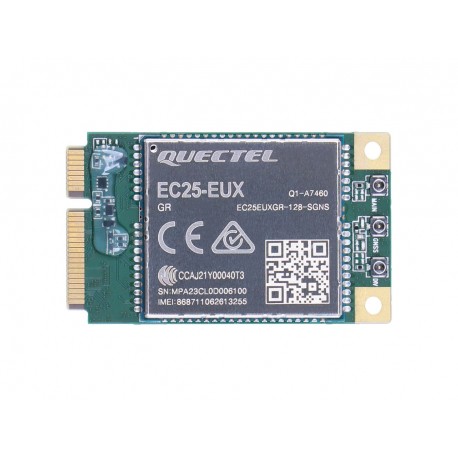

LTE Cat 4 EC25-EUX-mini-PCIe merupakan modul mini PCIe dari Quectel yang dirancang untuk aplikasi M2M dan IoT. Modul ini dilengkapi antarmuka standar PCI Express Mini Card dan mendukung operator EMEA dan Thailand. Modul ini cocok untuk koneksi jaringan LTE yang membutuhkan stabilitas dan keandalan.

Modul ini mendukung berbagai teknologi jaringan komunikasi seluler termasuk LTE-FDD dan WCDMA. LTE-FDD adalah standar teknologi komunikasi seluler utama di era 4G, sementara WCDMA adalah teknologi komunikasi seluler utama di era 2G dan 3G. Modul ini memastikan pengoperasian normal bahkan di daerah terpencil tanpa jaringan 3G dan 4G.

Modul ini dapat digunakan untuk reTerminal DM dan EdgeBox-RPI-200.

Fitur:

• Plug-and-Play LTE Cat 4 Wireless Communication Module: Support 2G/3G/4G Communication, Mounted with Standard mini PCIe, Realy to Use
• Broad Network Compatibility and Applicability: Supports Various Mobile Communication Network Technologies, Including LTE-FDD, WCDMA
• Built-in Multiple GNSS: Includes GPS/GLONASS/BDS/Galileo/QZSS. Satisfies the Need for Fast and Accurate Positioning in Different Environmental Conditions
• Low Power Consumption: The Power Consumption of the Sleep Model is as Low as 1.67 mA, and Idle Power Consumption as Low as 18.51 mA
• Supports EMEA and Thai, Operators

Spesifikasi:

• Cellular Technology: LTE Cat 4
• Region/Carrier: EMEA/Thai

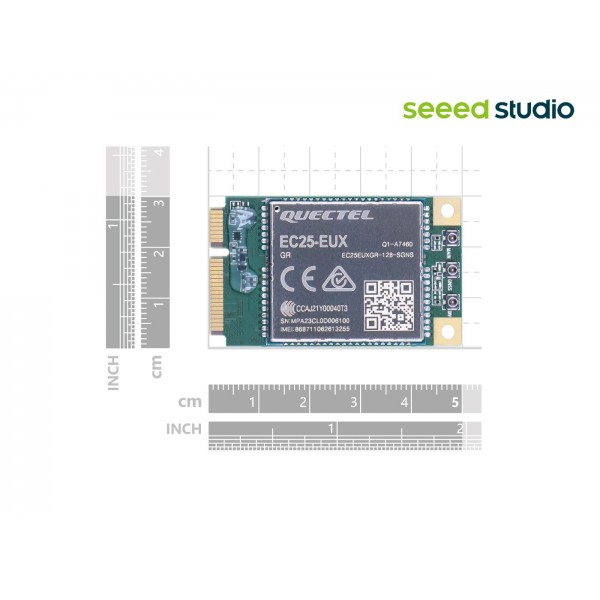

• Size: 30.0 x 51.0 x 4.9mm
• Temperature Range: -35°C ~ +75°C (Operating), -40°C ~ +80°C (Extended)
• GNSS Support: GPS/GLONASS/BDS/Galileo/QZSS (Optional)
• Other Certification: RoHS/WHQL
• Voice Codecs: HR/FR/EFR/AMR/AMR-WB
• Echo Algorithm: Echo Cancellation, Noise Suppression
• Voice Services: Digital Voice, VoLTE
• USB to Serial Port Driver: Windows 7/8/8.1/10/11, Linux 2.6 ~ 5.18, Android 4.x ~ 12.x
• GNSS and Ril Driver: Android 4.x ~ 12.x
• USB NDIS Driver: Windows 7/8/8.1/10/11
• USB GobiNet Driver: Linux 2.6 ~ 5.18
• USB QMI_WWAN Driver: Linux 3.4 ~ 5.18
• Power Supply Voltage: 3.0 ~ 3.6V (Typ. 3.3V)
• Power Consumptuon (Typ): 1.69 mA (sleep), 18.51 mA (idle)

Paket Penjumlahan:

1x LTE Cat 4 EC25-EUX-mini-PCIe
