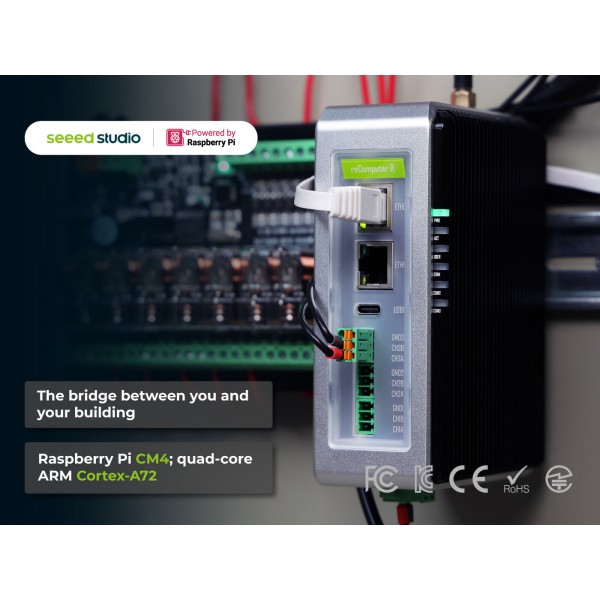

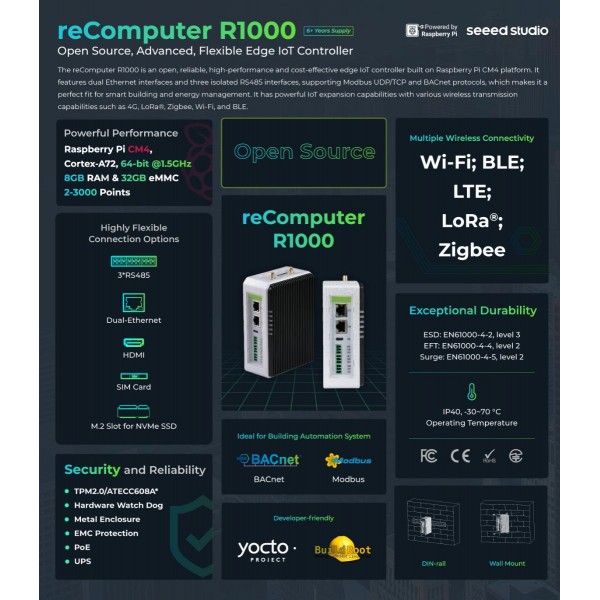

reComputer R1024-10 Raspberry Pu Gateway Edge IoT Controller 4GB RAM 16GB eMMC

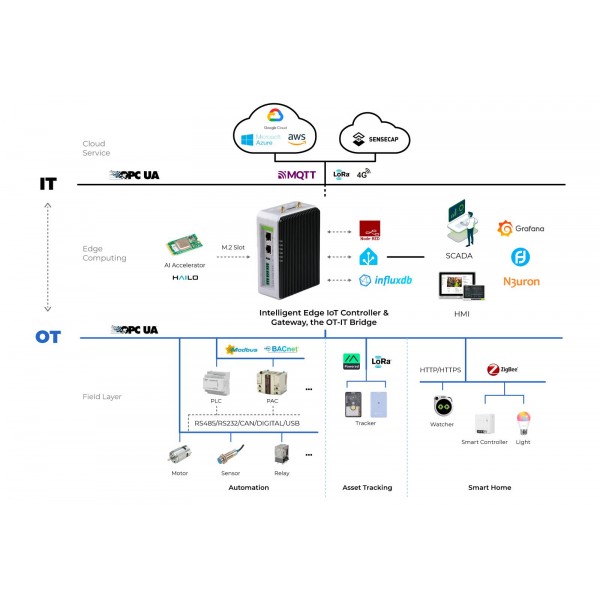

reComputer R1024-10 merupakan perangkat Industrial Edge IoT Gateway & Controller berbasis modul Raspberry Pi Compute Module 4 (CM4). Perangkat ini dirancang khusus untuk kebutuhan otomatisasi industri, Smart Building, dan Internet of Things (IIoT), menggabungkan fleksibilitas ekosistem Raspberry Pi dengan ketahanan perangkat keras kelas industri serta dukungan akselerasi Edge AI.

Fitur:

• Powerful Performance
• Ideal for Building Automation System
• Multiple Wireless Connectivity
• Security and Reliability
• Highly Flexible Connection Options

Spesifikasi Hardware:

• Model: R1000
• CPU: Raspberry Pi CM4, Quad-core Cortex-A72@1.5GHz
• Operating System: Raspbian, Ubuntu, Debian
• RAM: 4GB
• eMMC: 16GB

Spesifikasi System:

• Input: 2-pin Terminal Block
• PoE: IEEE 802.3af Standard 12.95W PoE*
• Supply Voltage (AC/DC): 12 ~ 24VAC / 9 ~ 36VDC
• Overvoltage Protection: 40V
• Power Consumption: 2.88W (Idle), 5.52W (Full Load)
• Power Switch: No
• Reboot Switch: Yes

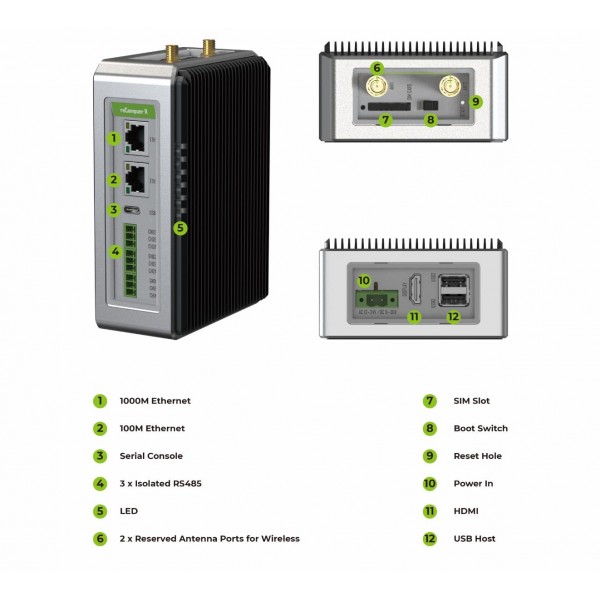

Interface:

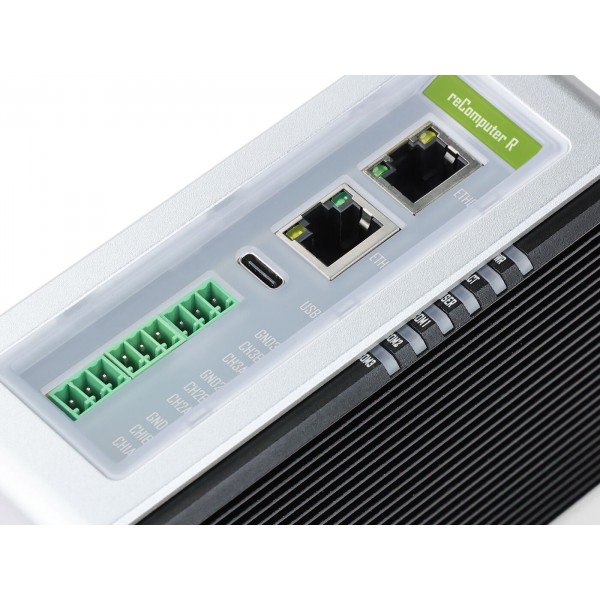

• Ethernet:
• 1 x 10/100/1000 Mbps (supports PoE*)
• 1 x 10/100 Mbps IEEE 802.3/802.3u


• USB:
• 2x USB-A 2.0 Host
• 1x USB-C 2.0 (for Flashing OS)
• RS485: 3 x 3-pin Terminal Block (Isolated)

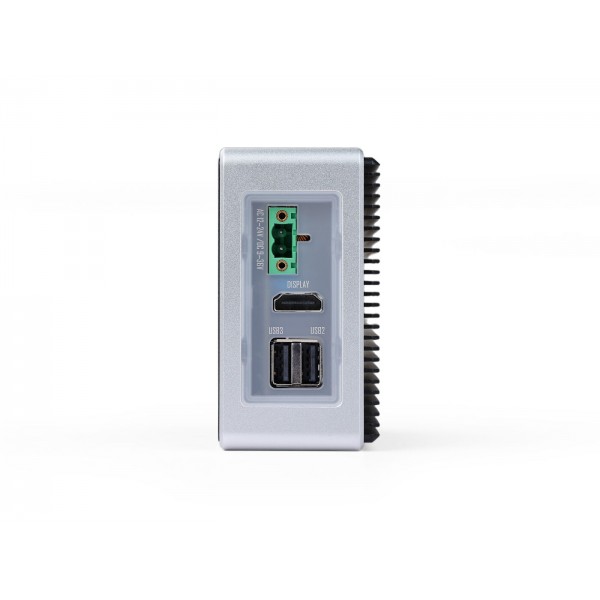

• HDMI: 1x HDMI 2.0

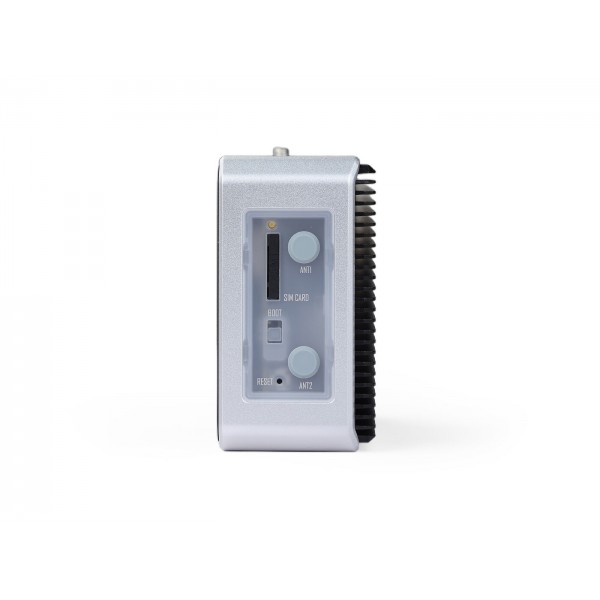

• SIM Card Slot: supports Standard SIM Card
• M.2 Slot: supports M.2 NVMe SSD
• LED: 6x LED Indicators
• Buzzer: 1
• Reset Button: 1
• HDMI: 1x HDMI 2.0

Wireless Communication:

• LoRa: USB LoRa/SPI LoRa
• WiFi 2.4/5.0 GHz: On-chip Wi-Fi
• 4G Celluar: 4G LTE
• Zigbee: USB Zigbee

Standards:

• EMC:
• ESD: EN61000-4.2, Level 3
• EFT: EN61000-4-4, Level 2
• Surge: EN61000-4-5, Level 2
• Certification: CE, FCC, TELEC, RoHS

Ambient Conditions:

• Ingress Protection: IP40
• Operating Temperature: -30 ~ 70°C
• Operating Humidity: 10 ~ 95% RH
• Storage Temperature: -40 ~ 80°C

Others:

• Supercapacitor UPS: SuperCAP UPS LTC3350 Module
• Hardware Watchdog: 1 ~ 255s
• RTC: High Accuracy RTC
• Security: Ecryption Chip TPM 2.0, ATECC608A
• Heat Dissipation: Fanless

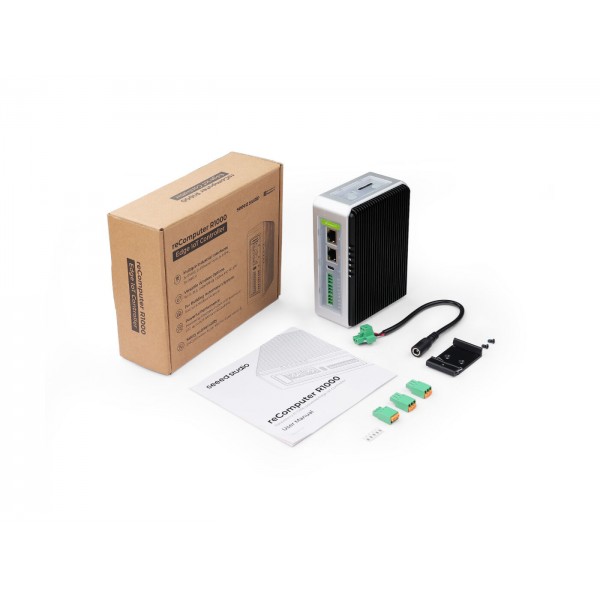

Paket Penjualan:

1x reComputer R1000
1x DIN-rail Clip
1x Screw Pack
1x DC Power Female Jack to Screw Terminal Adapter
3x 3-pin Terminal Block Connector (Male)
5x 120 Ohm Resistor
1x User Manual

Dokumen:

1. USER Manual (Link)
2. reComputer R1000 3D File (LInk)
3. Seeed's Raspberry Pi Powered Device (Link)
