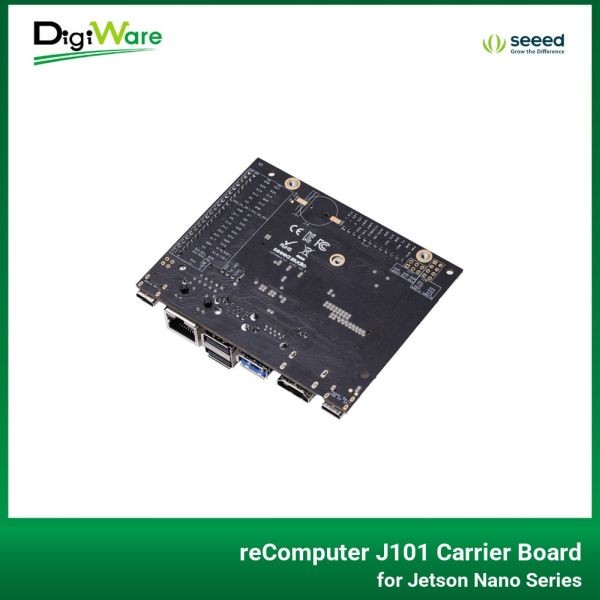

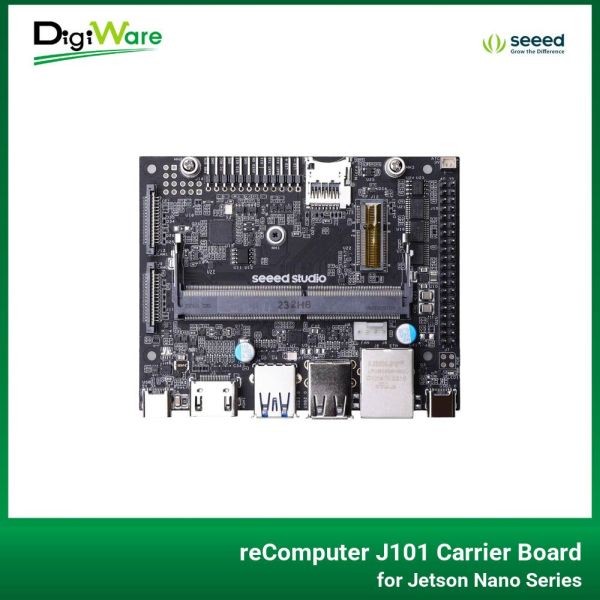

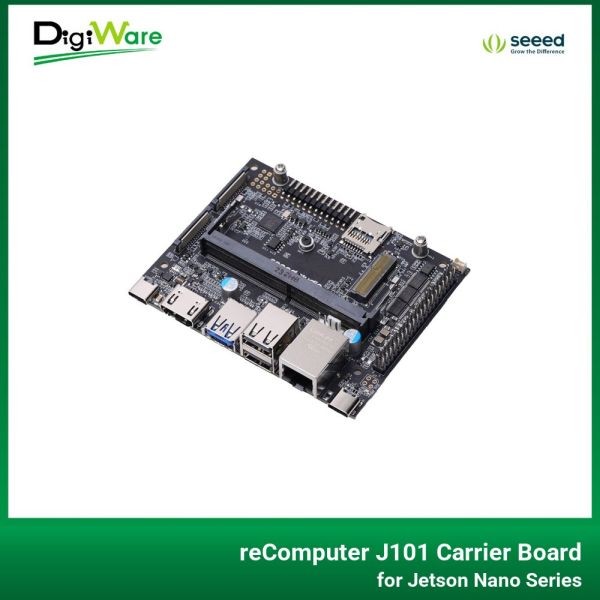

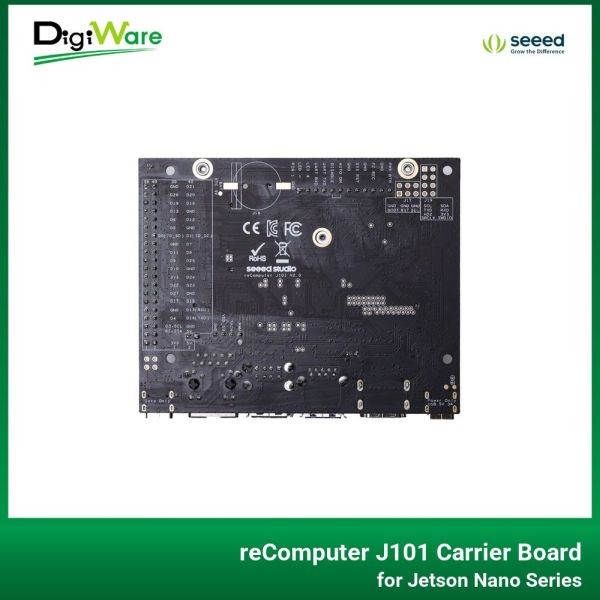

reComputer J101 Carrier Board for Jetson Nano Series

reComputer J101 carrier board is a cost-effective and interface-rich NVIDIA Jetson Nano compatible carrier board. It included HDMI2.0, 2x USB 2.0, 1x USB 3.0, micro SD card slot, 2 xCSI, M.2 key E WIFI / BT, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has nearly the same functional design and exactly the same size as the carrier board of NVIDIA Jetson Nano B01 Developer Kit.

Working with NVIDIA Jetson Nano module, powered by NVIDIA Maxwell with 128 NVIDIA CUDA cores, it's ready to bring the power of modern AI to everyone: makers, learners, and embedded developers.

With the NVIDIA Jetson Nano module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.

Application :

• Pedestrian detection by Edge Impulse
• Hard hat detection and build custom PPE detection
• Pose Estimation with alwaysAI
• Visual anomaly detection using NVIDIA Deepstream IoT
• Retail store items detection
• Wildfire detection
• Animal detection

Specification :

• Module Compatibility : Jetson Nano series
• Display : 1x HDMI
• CSI Camera : 2x CSI
• Ethernet : 1x Gigabit Ethernet (10/100/1000M)
• USB : 1x USB Type-C (Power In); 1x USB 3.0 Type-A (5 Gbps); 2x USB 2.0 Type-A; 1x USB Type-C (Device mode)
• M.2 Key M : No
• M.2 Key E : 1x M.2 Key E
• Micro SD card slot : 1x Micro SD card slot (48MHz CLK Frequency)
• FAN : 1x Fan Connector
• CAN : No
• Multifunctional port : 1x 40-Pin; 1x 12-PIn
• RTC : RTC 2-pin; RTC socket (reserved)
• Power supply : 5V/3A(USB Type C)
• Size : 100 x 80mm

Part list :

• 1 x reComputer J101 Carrier Board

Documentations :

• [Wiki] Flash JetPack on Jetson Nano

• [Wiki] Getting start with reComputer J101 Carrier Board

• [Wiki] reComputer Jetson Series Guide
• [Documentation] NVIDIA Jetson powered devices and carrier boards comparison
• [Poject] Seeed Jetson Examples
• [Others] Metropolis APIs and Microservices for Jetson Edge AI
• [Others] NVIDIA Jetson Generative AI Lab
• reComputer J101 v2 datasheet
• reComputer J101 PCBA 2D & 3D
• NVIDIA Jetson Devices and Carrier Boards Comparisons
• Seeed NVIDIA Jetson Hardware Catalog
