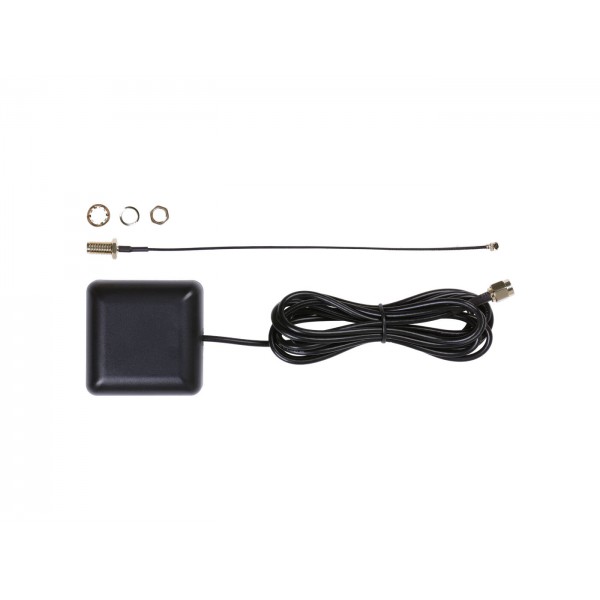

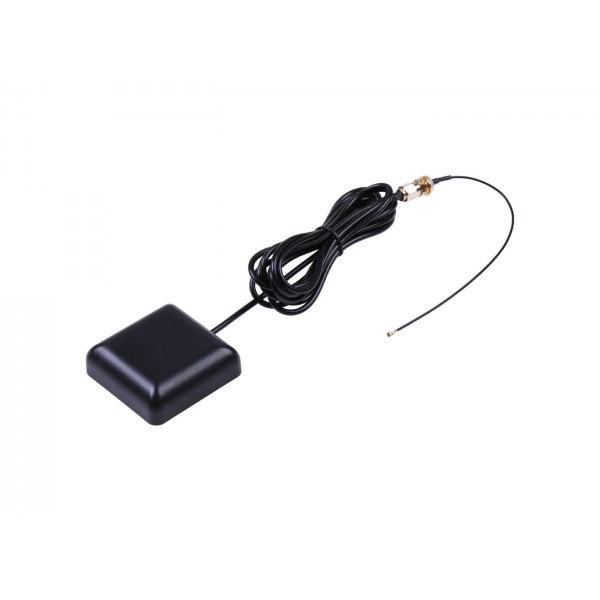

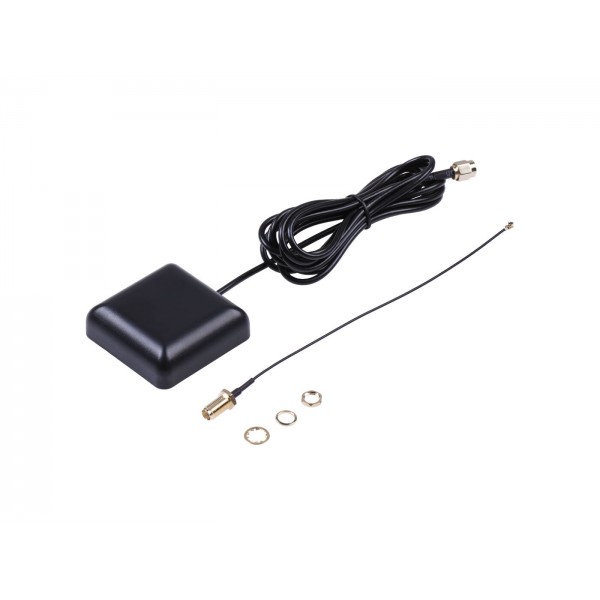

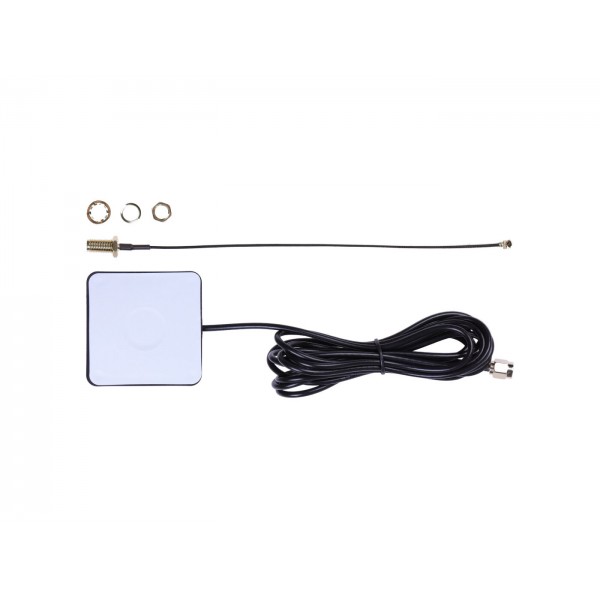

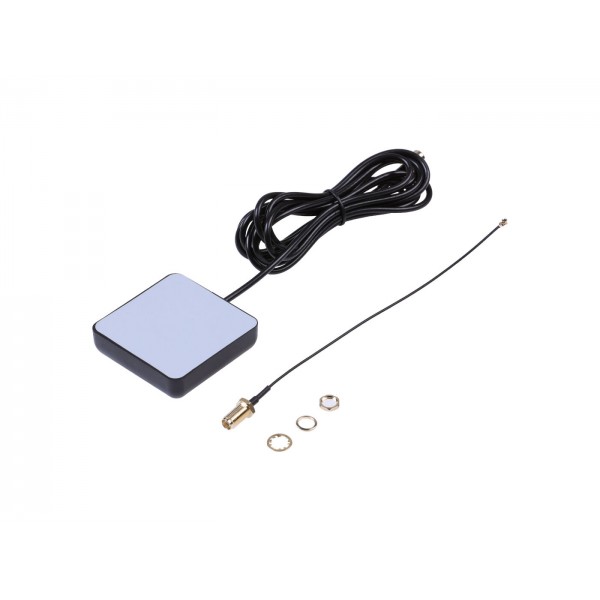

GPS Antenna Kit for reTerminal DM

Antenna yang didesain untuk GPS, BD, dan GLONASS yang kompatibel dengan reTerminal DM.

Fitur:

• Multiple Navigation System Applications Supported: BeiDou Navigation System (BD), Global Positioning System (GPS), GLONASS Navigation System (GLONASS)
• Enchanced Frequency Range: 1561 +- 2 MHz (BD), 1575.42 MHz +- 2 MHz (GPS), 1602 MHz +- 5 MHz (GLONASS)

Spesifikasi:

• Antenna Model: 3540A
• Frequency Range: 1561 +- 2 MHz (BD), 1575.42 MHz +- 2 MHz (GPS), 1602 MHz +- 5 MHz (GLONASS)
• V.S.W.R: 2.0 Max
• Bandwidth@10dB: 5 MHz (BD), 5 MHz MIN (GPS), 10 MHz MIN (GLONASS)
• Passive Gain: 5.0 dB typ @70x70mm Ground Plane (BD), 5.0 dB typ @70x70mm Ground Plane (GPS), 5.0 dB typ @70x0mm Ground Plane (GLONASS)
• Active Gain: 22 +- 3 dB typ @2000mm RG174 Line (BD), 23 +- 3 dB typ @2000mm RG174 Line (GPS), 22 +- 3 dB typ @2000mm RG174 Line
• LNA Gain: 22 +- 3 dB typ @2000mm RG174 Line (BD), 22 +- 3 dB typ @2000mm RG174 Line (GPS), 22 +- 3 dB typ @2000mm RG174 Line
• Impedance: 20 Ohm
• Polarization: RHCP
• DC Voltage: 3.3 +- 0.3V
• DC Current: 12 +- 2mA (@3.0V)

Material:

• Antenna: Dielectric Ceramics
• Shielding: Tinplate
• PCB: FR4
• Sheathing: ABS Black (50.8 x 50.8 x 16.5mm)
• RF Cable: RG174 (Length: 2000mm)
• RF Connector: SMA Male
• Magnet: Nd2FeB Magnet
• Working Temperature: -40°C ~ +85°C
• Relative Humidity: 10% ~ 95% RH
• Storage Temperature: -55°C ~ +100°C
• Vibration: Sine Sweep @1.5mm AM 10 ~ 55Hz Each Axis

Paket Penjualan:

1x GPS Antenna Kit
