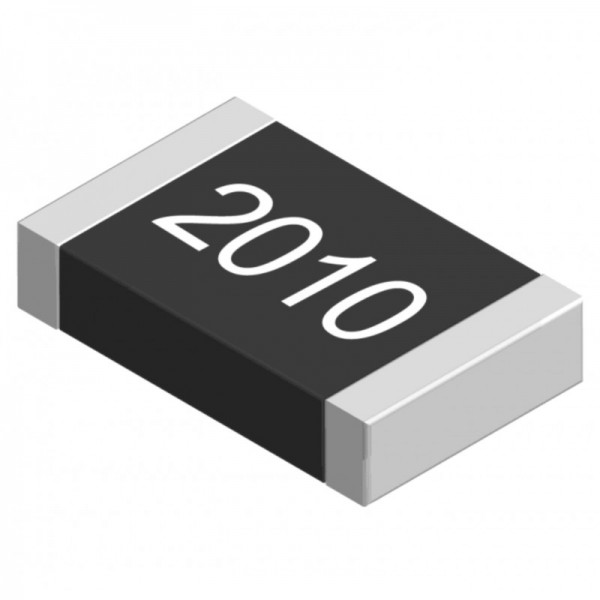

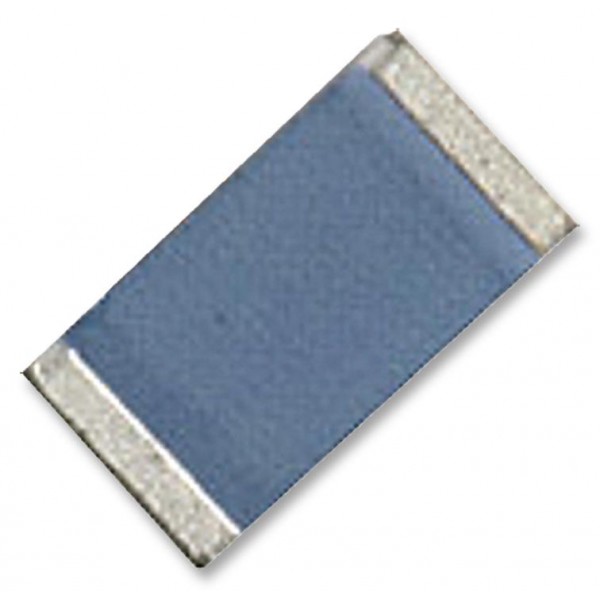

Thick Film Resistor 1G OHM 0.5W 2kV 2010 5% (HVC2010-1G0JT18)

SMD Chip Resistor, 1 Gohm, ± 5%, 500 mW, 2010 [5025 Metric], Thick Film, High Voltage.

Spesifikasi :

• Resistansi: 1 GΩ
• Daya Maksimum: 500 mW
• Teknologi Resistor: Film Tebal (Thick Film)
• Seri Produk: HVC Series
• Tegangan Maksimum: 2 kV
• Lebar: 2,5 mm
• Suhu Operasi Maksimum: 155 °C
• Toleransi: ± 5%
• Kemasan / Paket Resistor: 2010 [5025 Metrik]
• Tipe Resistor: Tegangan Tinggi (High Voltage)
• Koefisien Suhu: ± 100 ppm/°C
• Panjang: 5,1 mm
• Suhu Operasi Minimum: -55 °C

Dokumen :

Datasheet
