UR1A-9 Integrated UHF RFID Reader 9dBi IP67 PoE

UR1A-9 Integrated UHF RFID Reader merupakan fixed RFID reader single channel berkinerja tinggi. Reader ini menggunakan modul chip Impinj E Series dan antena berkinerja tinggi serta sudah mendukung Gen2X.

Reader ini memiliki performa yang bagus dan dilengkapi dengan antarmuka komunikasi RS-232, RJ45, dan GPIO untuk terhubung dengan sistem. UR1A dapat diterapkan secara luas dalam manejemn pergudangan, kearsipan, perpustakaan, perbankan, lini produksi, dan bidang-bidang lainnya.

Fitur:

• Antenna Integration Design
• Support Multiple Interfaces
• Support RS-232- RJ45, GPIO
• Self-Developed Module Based on Impinj E Series Chip
• Impinj Gen2X for Enhanced UHF Performance
• 1300+ tags/sec Read Rate

Spesifikasi:

UHF RFID:

• Engine: Based on Impinj E Series Chips
• Impinj Gen2X: Supported
• Protocol: EPC Global UHF Class 1 Gen 2 / ISO 18000-6C
• Output Power: 1W (30dBm, support +5 ~ +30dBm adjustable)
• Output Power Precision: +/- 1dB
• Output Power Flatness: +/- 0.2dB
• Receive Sensitivity: < - 84 dBm
• RSSI: Support
• Ambient Temp Monitor: Support
• Fasted Read Rate: 1300+ tags/sec

Physical Charcteristics:

• Material: Plastic + Aluminum Alloy
• Input Voltage: DC 9V - 12V
• Standby Current: < 30 mA

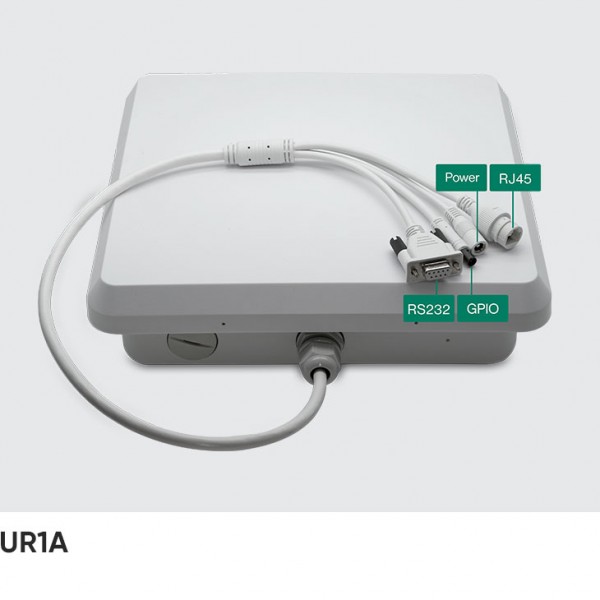

• Comm Interface: RS-232, RJ45, GPIO
• Baudrate: 115200 bps
• Cooling Mode: Air Cooling
• Work Current: 800mA +/- 5% @ DC 12V Input
• Power Supply: DC (12V), PoE (802.3af 13W), PoE+ (802.3at 25.5W)

Antenna 1:

• Frequency: 865-868MHz / 920-925MHz / 902-928MHz
• Polarization Mode: RHCP (Right-handed Circular Polarization)
• Gain: 9 dBi
• Horizontal Angle: 60°
• Vertical Angle: 55°
• VSWR: <= 1.3
• FBR: 17 dB
• Characteristic Impedance: 50 Ohm
• Maximum Input Power: 20W
• Ligthning Protection: DC Ground

Antenna 2:

• Polarization Mode: RHCP (Right-handed Circular Polarization)
• Frequency: 865-868MHz / 920-925MHz / 902-928MHz
• Gain: 6 dBi
• Horizontal Angle: 105°
• Vertical Angle: 95°
• VSWR: <= 1.3
• FBR: >= 20dB
• Characteristic Impedance: 50 Ohm
• Maximum Input Power: 20W
• Lightning Protection: DC Ground

Dokumen:

1. UR1A Datasheet (Link)
2. UR1A User Manual (Link)
