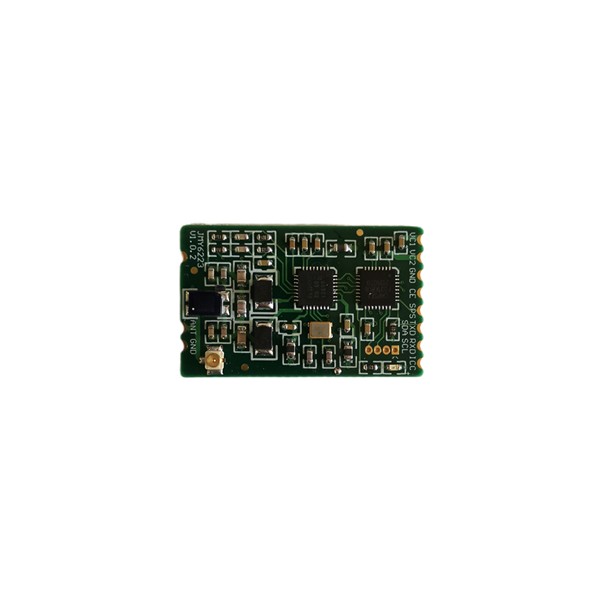

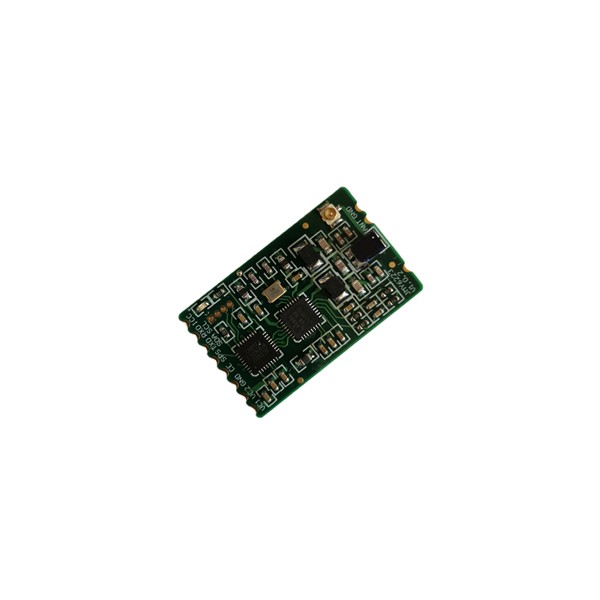

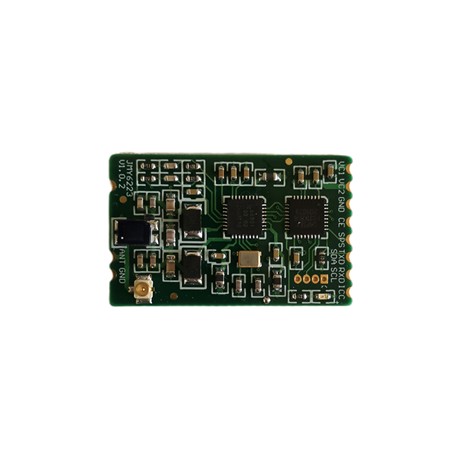

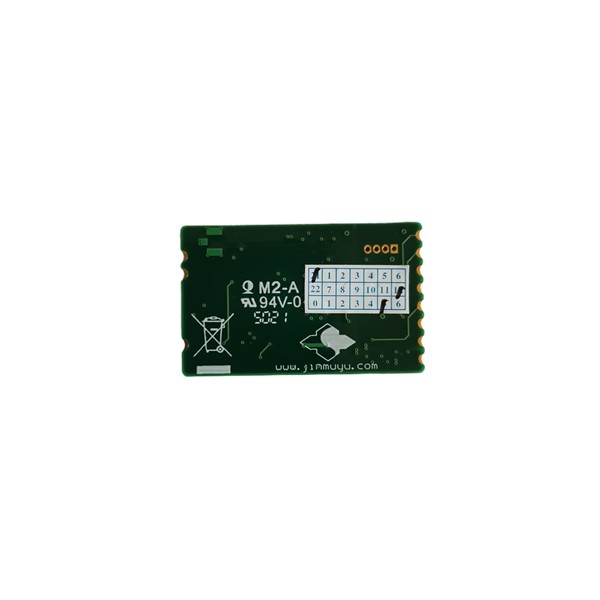

RFID Reader Writer Module 13.56 MHz I2C UART I-M26223

RFID Reader Writer Module 13.56 MHz I2C UART.

Spesifikasi:

• Model: JMY6223
• Power Supply: 3.3 ~ 5V (VC1), 3.3V (VC2)
• Power Consumption: 15uA (Non-work mode), 2.5mA (idle model), 150mA (Max)
• Working Frequency: 13.56MHz
• Interface: IIC & UART (selected by SPS pin, recommended to use IIC)
• Interface Level: 3.3V Level (5V Tolerance)
• RF Standard: ISO14443A, ISO14443B, ISO15693, ISO18000-3MODE3
• PICC: MIFARE 1K, MIFARE 4K, MIFARE Ultralight, MIFARE Ultralight C, MIFARE Mini, MIFARE DESFire, MIFARE Plus, T=CL TYPE A
• Operating Distance: 100mm
• ISP: Supported
• RoHS: Supported
• Operating Temperature: -25 ~ +85°C

Dokumen:

1. JMY6223 IC Card Reader/Write Module User's Manual (Link)
2. SDK & Sample Code (Link)
3. TransPort (PC Software) (Link)
4. Sscomv20 (PC Software) (Link)
5. DESFire Tool (PC Software) (Link)
