C72 Handheld UHF RFID Reader RAM 4GB ROM 64GB 2W Android 11

Lihat lebih detail

C72-V4 Mobile Computer RAM 4GB ROM 64GB Handheld UHF RFID Reader NFC 13MP Camera WiFi 5.2 inch Touch Display Android 11

Kode Produk 431-467

Stok Produk	inden

Hapus produk ini dari daftar favorit saya
Tambahkan produk ini ke daftar favorit saya
Cetak

Info lainnya
Review

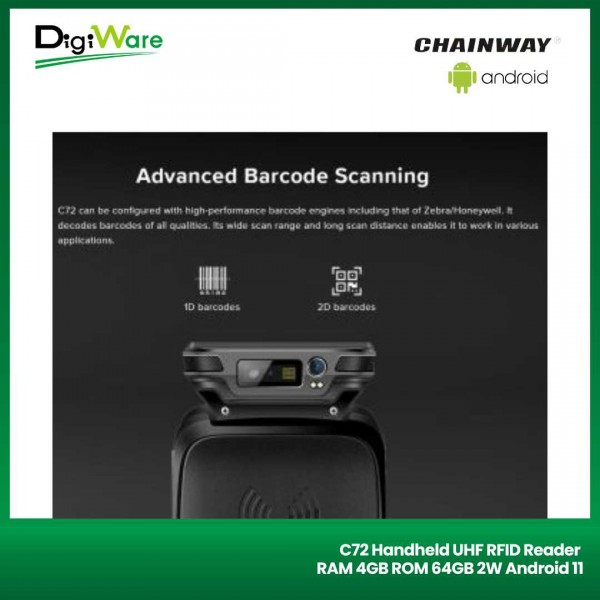

C72 Handheld UHF RFID Reader merupakan reader UHF RFID berbasis Android 11 yang tangguh serta dengan kemampuan terbaik di kelasnya. Reader ini berbasis Impinj E710 dengan kemampuan mendeteksi tag hingga 30 meter di luar ruangan. Reader ini memiliki fitur tambahan (opsional) pemindaian 2D berbasis Zebra SE4710 / SE4750SR / SE4750MR / SE4750DP atau Honeywell: N6603; CM60. Untuk performanya sudah di bekali dengan prosesor Octa-core Cortex A53 2.3GHz serta memiliki RAM 4GB dan memory internal 64GB. Kapasitas baterainya juga tergolong besar yaitu 8000mAh. Dngan kapasitas tersebut reader ini mampu memiliki waktu standby hingga 500 jam dan mampu melakukan pembacaan hinggan 12 jam secara terus menerus. Reader ini cocok digunakan pada aplikasi asset management, ritel, pergudangan, apparel inventory, manajemen kendaraan, dan lain sebagainya.

Physical Characteristics :

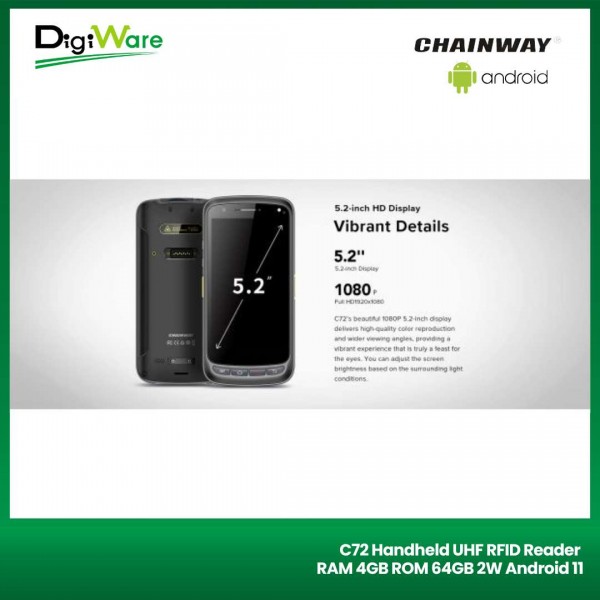

Display	5.2'' IPS LTPS 1920 x 1080
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification	Sound, LED indicator
Expansion Slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interface	USB 2.0 Type-C, OTG, Type-C headphones supported
Audio	1 microphone；1 speaker；receiver
Keypad	4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensor	Light sensor, proximity sensor, gravity sensor

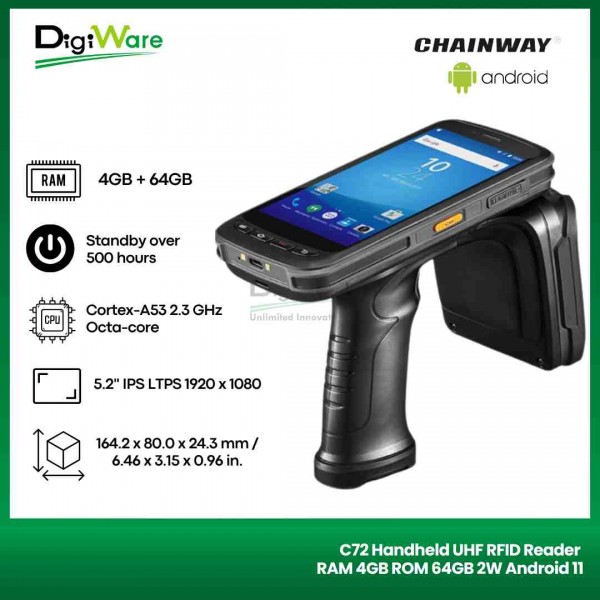

Dimension	164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.

Performance :
CPU	Cortex-A53 2.3 GHz Octa-core
RAM/ROM	4GB + 64GB
OS	Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Communication :
WLAN	IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN	2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41
Bluetooth	Bluetooth 5.0
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna

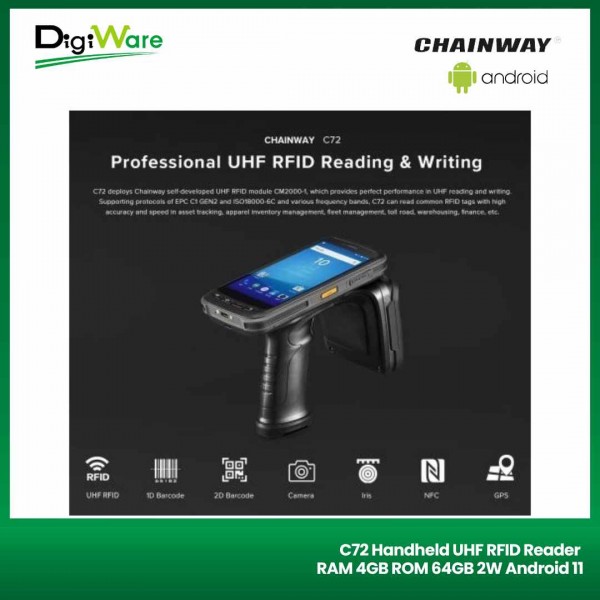

UHF RFID :
Engine	CM710-1 module based on Impinj E710
Frequency	902-928 MHz
Protocol	EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11, Impinj Protected Mode Supported
Antenna	Circular polarization (4 dBi)
Power	2W Optional (33 dBm, for Latin America, etc.)
Read Rate	1300+ tags/sec (circular polarization)
Read Range	Impinj E710 chip: 26m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm) *Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.

NFC :
Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4 cm

User Environment :
Operating Temp.	4 °F to 122 °F / -20 °C to 50 °C
Storage Temp.	-40 °F to 158 °F / -40 °C to 70 °C
Humidity	5% RH - 95% RH non condensing.
Drop Specification	Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	Host IP65 per IEC sealing specifications
ESD	±15 KV air discharge, ±6 KV conductive discharge
