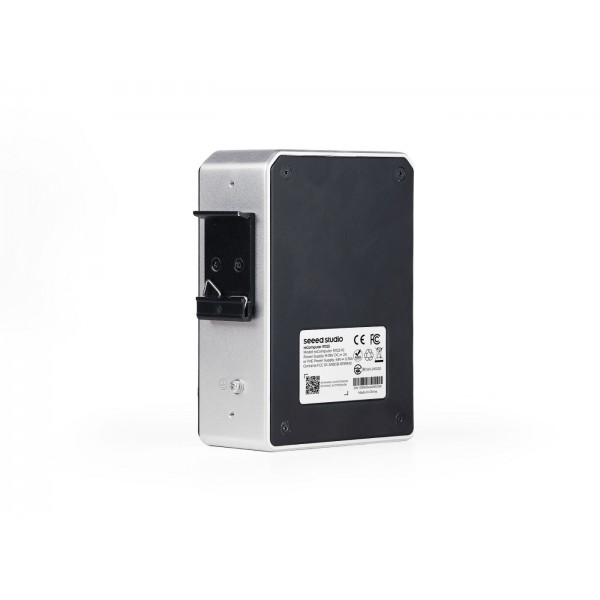

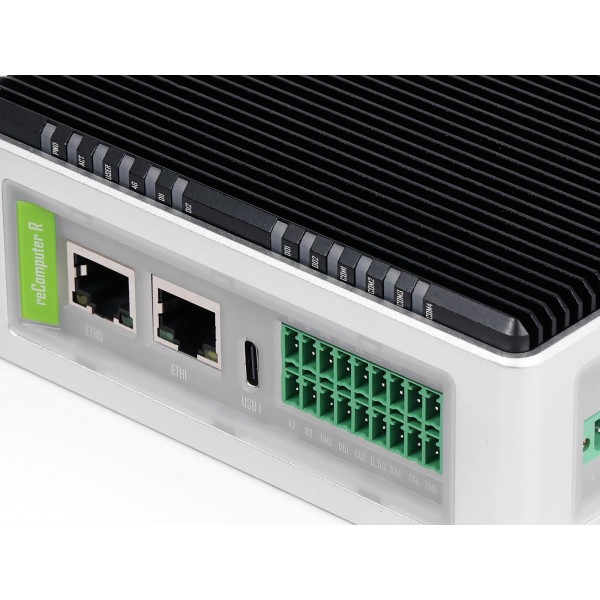

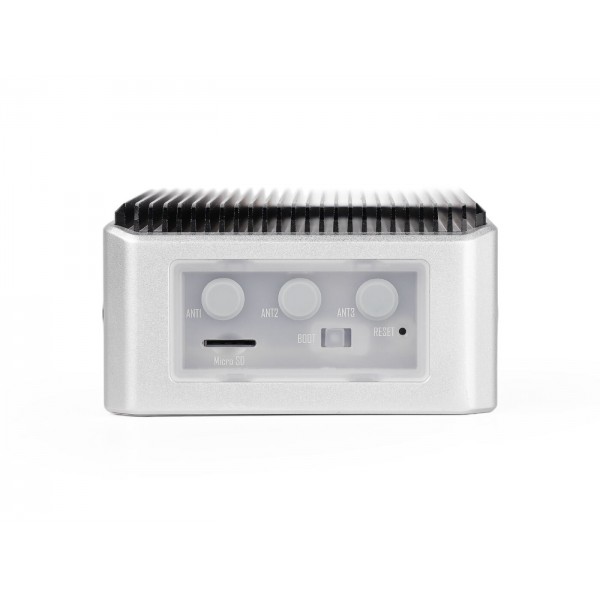

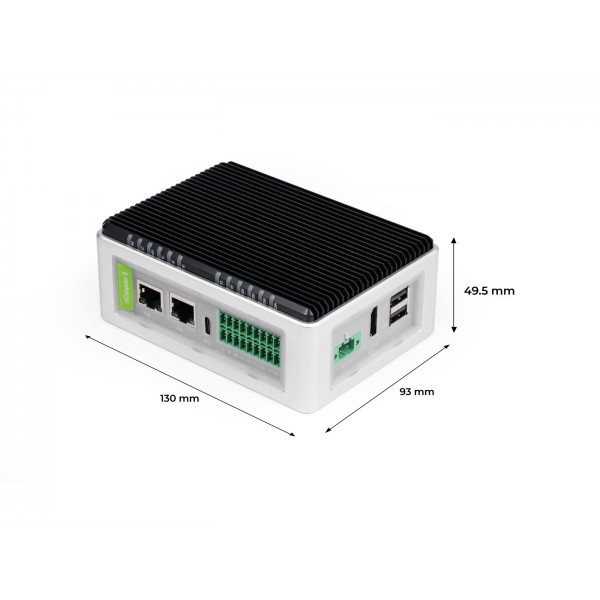

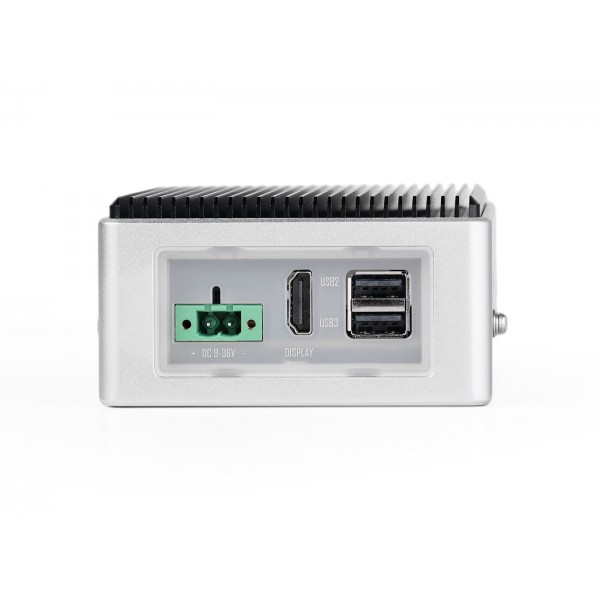

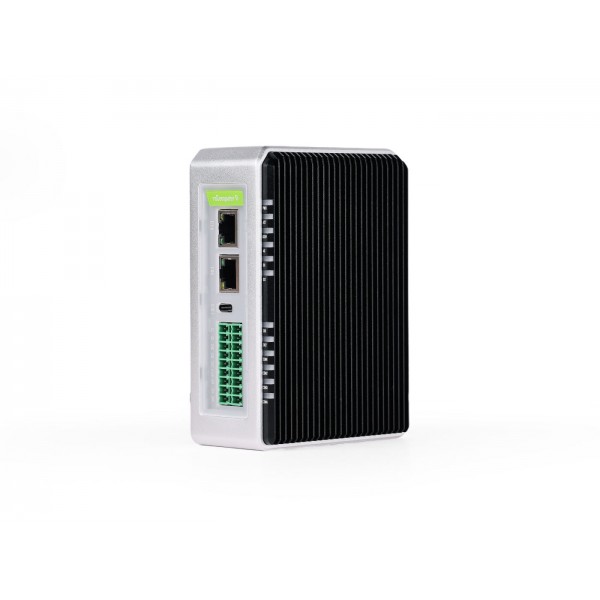

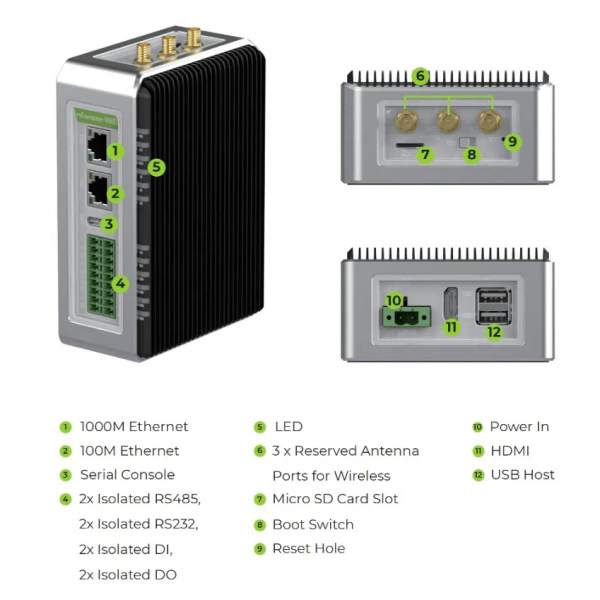

reComputer R1125-10 Raspberry Pi IoT Gateway & Controller CM4 Powered 4GB RAM, 32GB eMMC AI Capable

reComputer R1125-10 Raspberry Pi IoT merupakan Edge IoT Controller berbasis Raspberry Pi CM4 yang sudah memiliki multiple industrial interface seperti RS485, RS232, dan juga peripheral seperti DI/DO, dan lain sebagainya. Selain itu, R1125-10 sudah dilengkapi dengan WiFi maupun RJ45 sehingga dapat dihubungkan dengan jaringan lokal maupun internet untuk keperluan IoT.

reComputer R1125-10 sangat cocok digunakan dalam aplikasi smart building, smart energy management system, HVAC control, remote device management, dan lain sebagainya.

Fitur:

• Powerfull Performance: Raspberry Pi CM4, Quad-core Cortex-A72@1.5GHz
• Multiple Industrial Interfaces
• Versatile Wireless Options
• Perfect Fit for Building Automation System
• Safety and Reliablity

Spesifikasi:

• Product Series: R1100 Series
• Power Input: DC 9V ~ 36V 2-Pin Terminal Block
• Power Consumption: Idle: 2.88W, Full Load: 5.52W
• CPU: Raspberry Pi CM4, Quad-core Cortex-A72@1.5GHz
• Operating System: Support Raspbian, Debian, Yocto, Buildroot
• RAM: 4GB
• eMMC: 32GB
• PoE: IEEE 802.3af Standard 12.95W PoE*
• Ethernet: 1x 10/100/1000 Mbps (Supports PoE*), 1x 10/100 Mbps IEE802.3/802.3u
• USB: 2x USB-A 2.0 Host, 1x USB-C 2.0 (For Flashing OS)
• RS485: 2x RS485 (Isolated)
• RS232: 2x RS232 (Isolated)
• DI: 2x Isolated (5 ~ 24V)
• DO: 2x Isolated (< 60VDC)
• HDMI: 1x HDMI
• SIM Card: 1x Nano SIM Card Slot
• SD Card: 1x Micro SD Card Slot
• SSD Card: 1x M.2 NVMe SSD Slot 2280-M Key
• LED: 12x LED Indikator

Wireless Communication:

• WiFi 2.4/5.0GHz: On-chip Wi-Fi
• BLE 5.0: On-chip BLE
• LoRa: USB LoRa/SPI LoRa
• 4G Cellular: 4G LTE
• Zigbee: Zigbee Module

Ambient Conditions:

• Ingress Protection: IP40
• Operating Temperature: -30° ~ 70°C
• Operating Humidity: 10 ~ 95% RH
• Storage Temperature: -40°C ~ 80°C

Others:

• Supercapacitor UPS: SuperCAP UPS LTC3350 Module
• Hardware Watch Dog: 1 ~ 255s
• RTC: High Accuracy RTC
• Security: Encryption Chip TPM 2.0*/ATECC608A
• Heat Dissipatin: Fanless

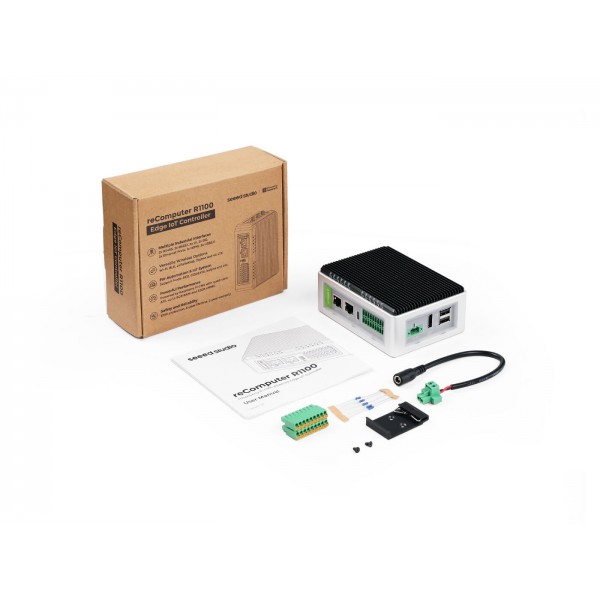

Paket Penjualan:

1x reComputer R1100
1x DIN-rail Clip
1x Screw Pack
1x DC Power Female Jack to Screw Terminal Adapter
1x 9*2-Pin Terminal Block Connector (Male)
5x 120 Ohm Resistor
1x User Manual

Dokumen:

1. User Manual (Link)
