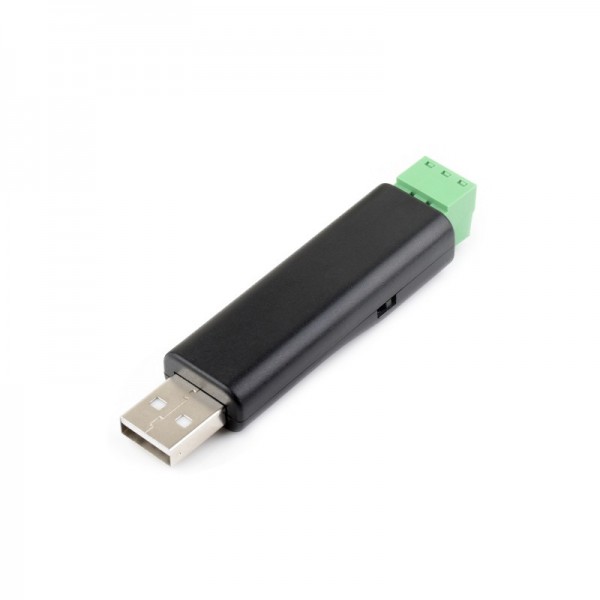

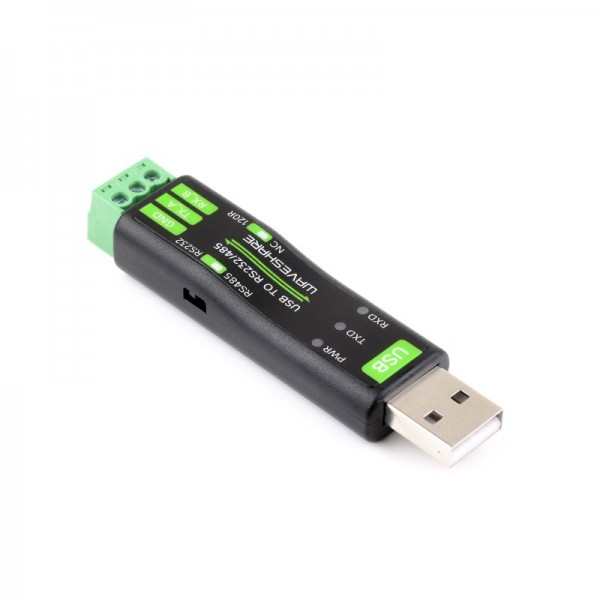

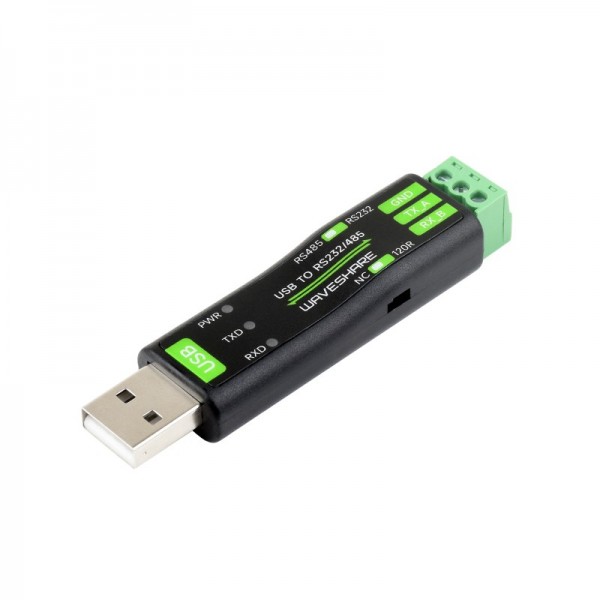

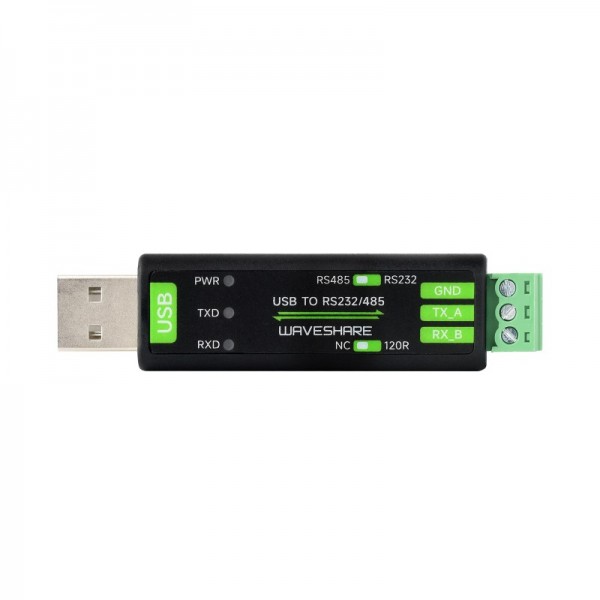

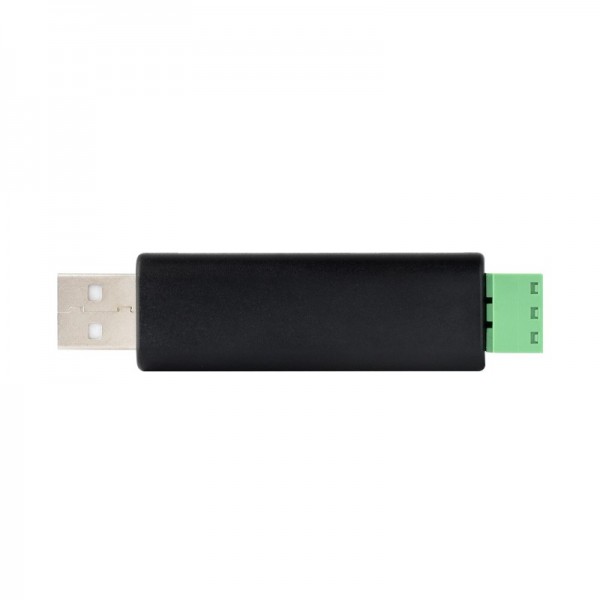

USB to RS232/485 Serial Converter Onboard FT232RNL Chip Multiple Devices Applicable Multi-OS Compatible

Konverter serial USB industri portabel yang memadukan dua fungsi sekaligus: USB ke RS232 atau USB ke RS485. Konverter ini menggunakan chip FTDI FT232RNL, konverter ini menawarkan stabilitas komunikasi tinggi, proteksi sirkuit tingkat industri, serta kompatibilitas plug-and-play lintas sistem operasi.

Fitur:

• Menggunakan Chip FTDI FT232RNL
• Dual Mode (RS232/RS485) via Sakelar
• Kontrol Arah Otomatis Hardware (RS485)
• Terminator 120 Ohm Terintegrasi
• Proteksi Sirkuit
• Indikator LED untuk PWR, TXD, RXD

Spesifikasi:

• Host Port: USB
• Device Port: RS232/RS485
• USB:
• Operating Voltage: 5V
• Connector: Type-A Male
• Protection: 200mA self-recovery fuse
• Transmission Distance: About 5m
• RS232:
• Connector: Screw Terminal
• Transmission Distance: About 15m
• Transmission Mode: Point-to-point
• Baud rate: 300bps ~ 921600bps
• RS485:
• Connector: Screw Terminal
• Direction Control: Hardware Automatic Control
• Protection: TVS Diode, Surge Protection & ESD
• Transmission Distance: About 1.2km (low rate)
• Transmission Mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
• Baud rate: 300 bps ~ 921600 bp
• LED Indicators: PWR, TXD, RXD
• Operating Environment:
• Temperature: -15°C ~ 70°C
• Humidity: 5%RH ~ 95%RH
• Operating System: Mac, Linux, Android, Windows 11/10/8.1/8/7

Paket Penjualan:

1x USB to RS232/485
1x USB-A Male to Female Cable
1x Screwdriver

Dokumen:

1. Wiki (Link)
