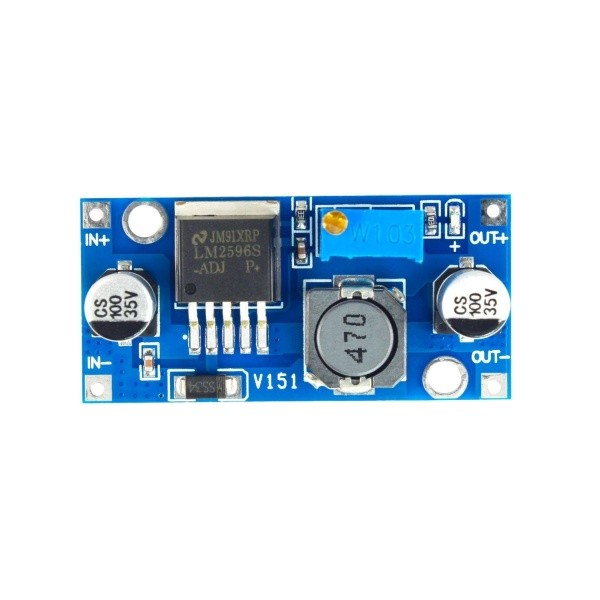

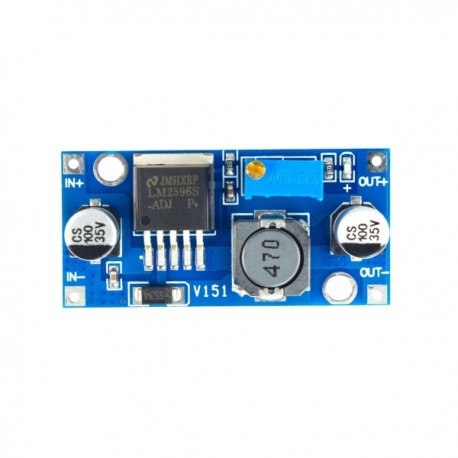

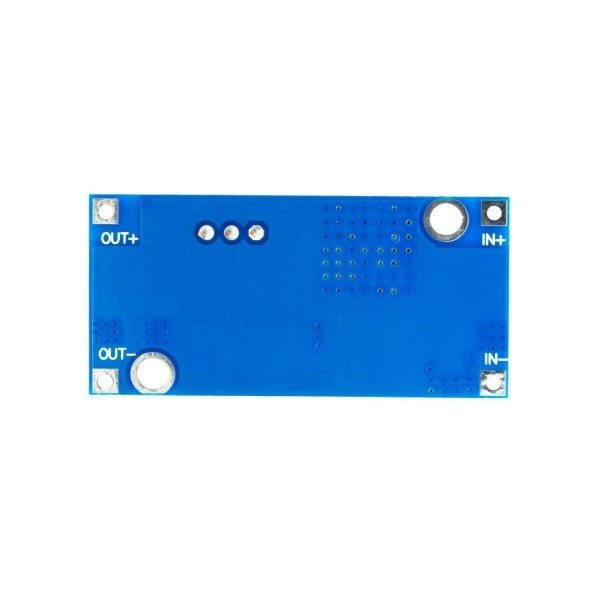

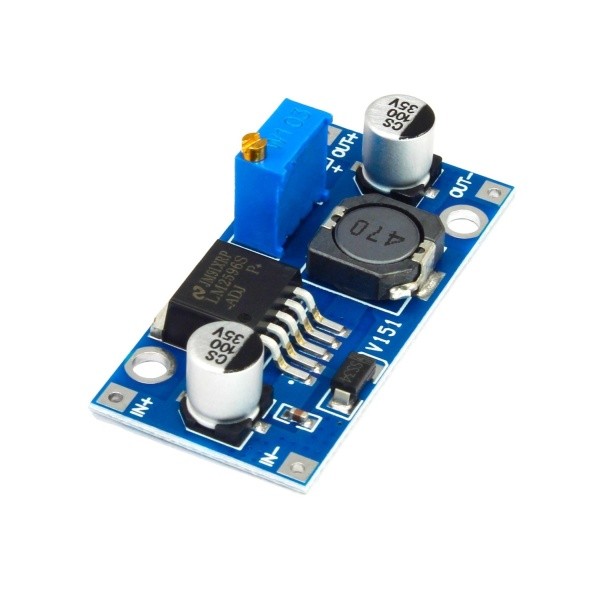

Modul LM2596 DC-DC Step Down Input DC 3 - 40V Output DC 1.5 - 35V

Modul LM2596 DC-DC Step Down Input DC 3 - 40V Output DC 1.5 - 35V

Spesifikasi :

• Input Voltage: DC 3 -40 V
• Output Voltage: DC 1.5 - 35 V
• Output Current: 3A(MAX) It is recommended to use under 2A
• Load adjust ratio: +/-0.5%
• Voltage adjust ratio: +/-2.5%
• Transferring efficiency: 92% Max(the higher output voltage, the higher efficiency)
• frequency: 150KHz
• Output ripple: 200mV
• Module feature: buck and non-isolated
• Rectification method: non-synchronous rectification
