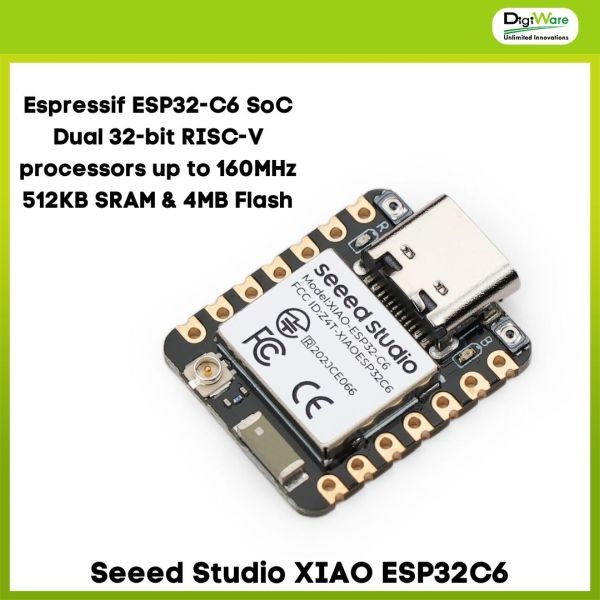

Seeed Studio XIAO ESP32C6 with Dual 32-bit RISC-V Processors Support 2.4GHz WiFi 6, BLE 5.0, Zigbee, and Thread

XIAO ESP32C6 merupakan modul mikrokontroler berbasis ESP32-C6 32-bit RISC-V processor. Modul ini memiliki antarmuka wireless WiFi 6, Bluetooth 5.0 (BLE), dan Zigbee sehingga memberikan fleksibilitas konektivitas yang tinggi untuk aplikasi IoT.

Fitur:

• Enhanced Connectivity: Combines 2.4GHz WiFi 6, Bluetooth 5 (LE), and IEEE 802.15.4 Radio Connectivity (support Thread and Zigbee Protocols)
• Outstanding RF Performance
• Dual RISC-V Processors
• Support ESP-IDF dan Arduino IDE

Spesifikasi:

• Model: XIAO ESP32C6
• Input Voltage: 5V (Type-C), 4.2V (BAT)
• Prosesor: Dual-Core 32-bit RISC-V
• Clock: Up to 160MHz
• Wireless: WiFi 6, Bluetooth 5 (LE), dan Zigbee, Thread IEEE 802.15.4
• On-chip Memory: 512KB SRAM & 4MB Flash

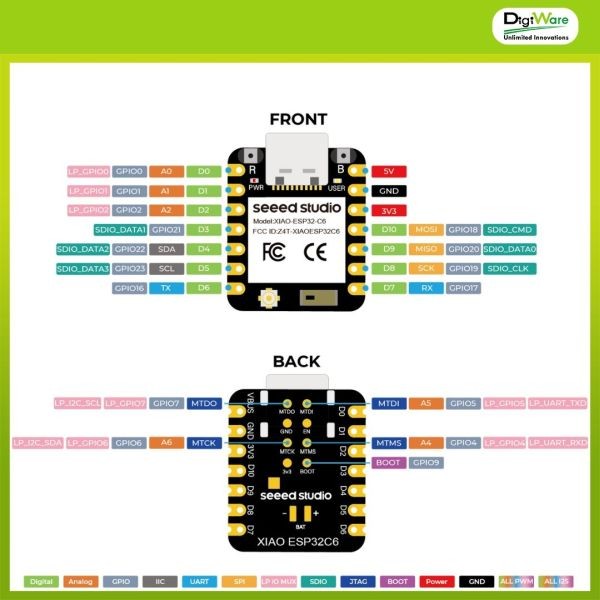

• Antarmuka: 1x UART, 1x LP_UART, 1x I2C, 1x LP_I2C, 1x SPI, 11x GPIO (PWM), 7x ADC, 1x SDIO, 1x Reset Button, 1x Boot Button
• Suhu Operasi: -40°C ~ 85°C

Dokumen:

1. Datasheet dan Panduan Penggunaan (Link)
