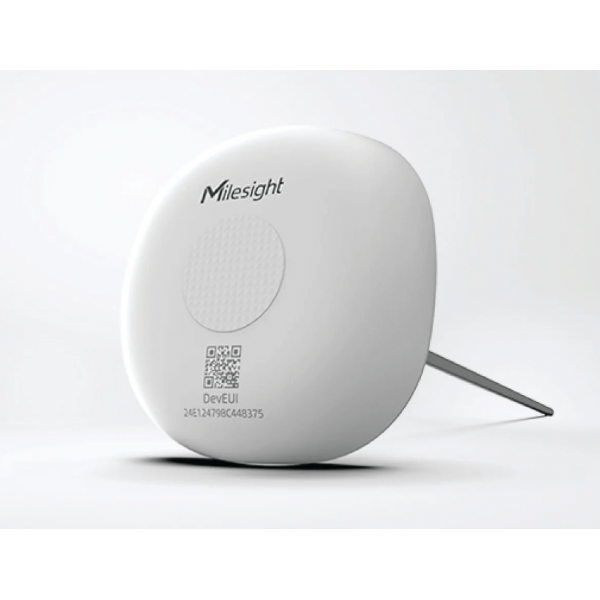

TS101 Insertion Temperature Sensor (2 Pieces)

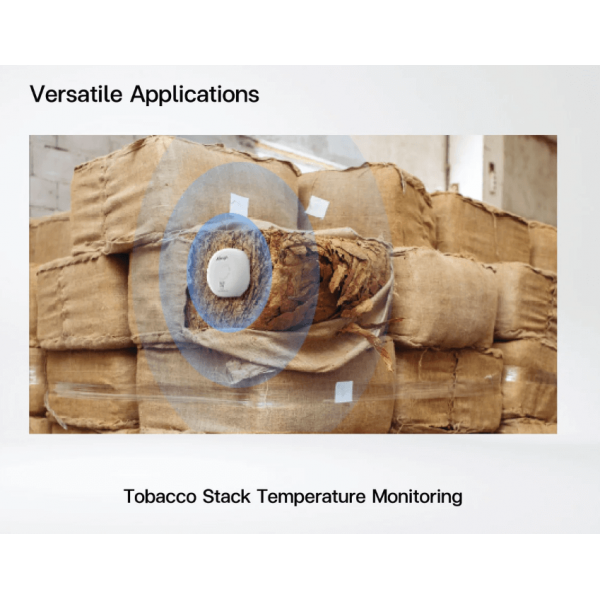

TS101 Insertion Temperature Sensor merupakan perangkat sensor suhu tipe insertion all-in-one dengan transmitter terintegrasi. Dirancang khusus untuk pengukuran suhu internal material seperti tembakau, biji-bijian, atau material bulk lainnya dalam kondisi penyimpanan.

Fitur:

• Precise and Accurate +- 0.5°C

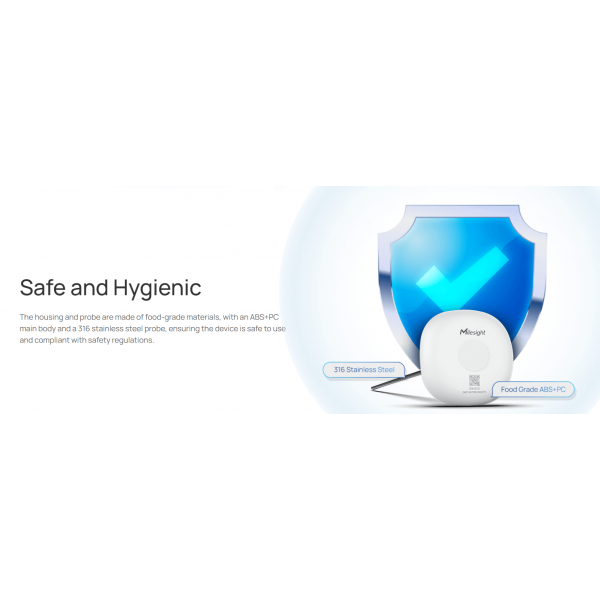

• Safe and Hygienic: Food-Grade Enclosure and Probe

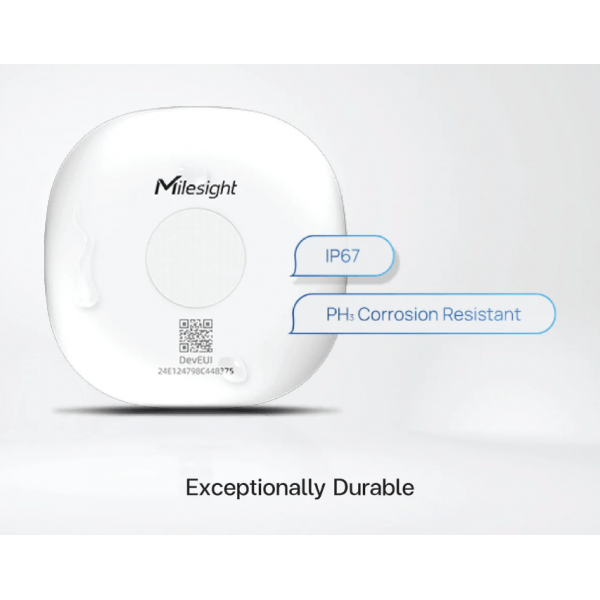

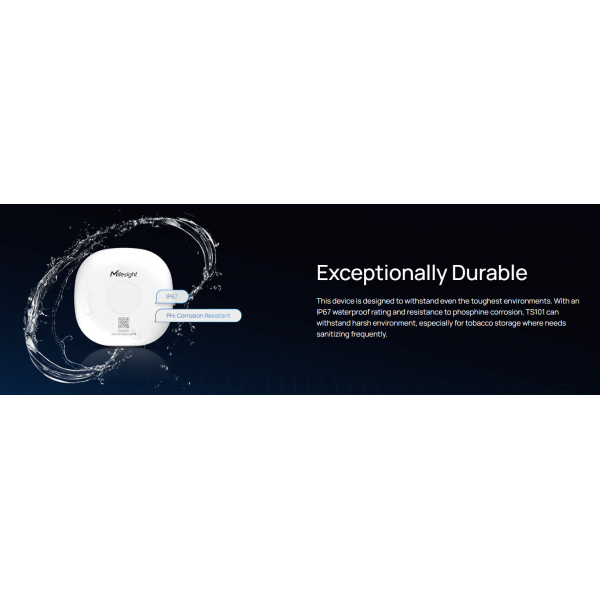

• Exceptionally Durable: IP67 Waterproof Rating and Phosphine Corrosion Resistant

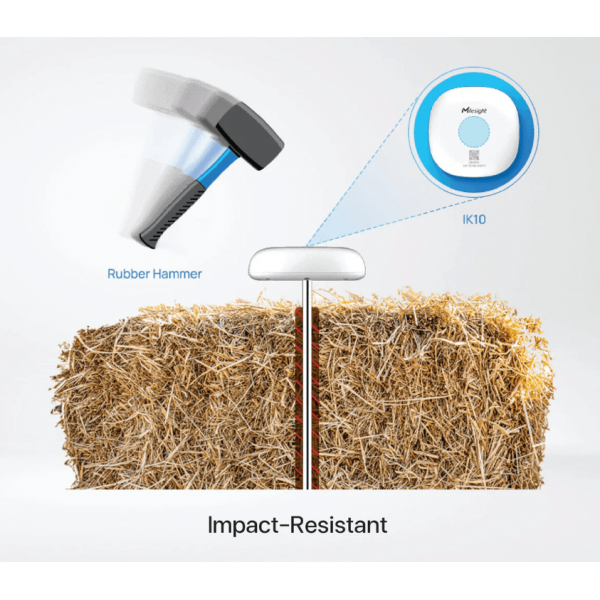

• Built to Last: IK10 Rated Transceiver for Impact Resistance
• Data Integrity and Easy Management
• Long-Lasting and Low-Maintenance: 10 Years Battery Life

Wireless Transmission:

• Protocol: LoRaWAN
• Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1,2,3,4
• Tx Power: 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A

Measurement:

• Detecting Range: -30°C ~ +70°C
• Accuracy: +- 0.5°C
• Resolution: 0.1°C

Operation:

• Power On & Off: NFC, Power Button (Internal)

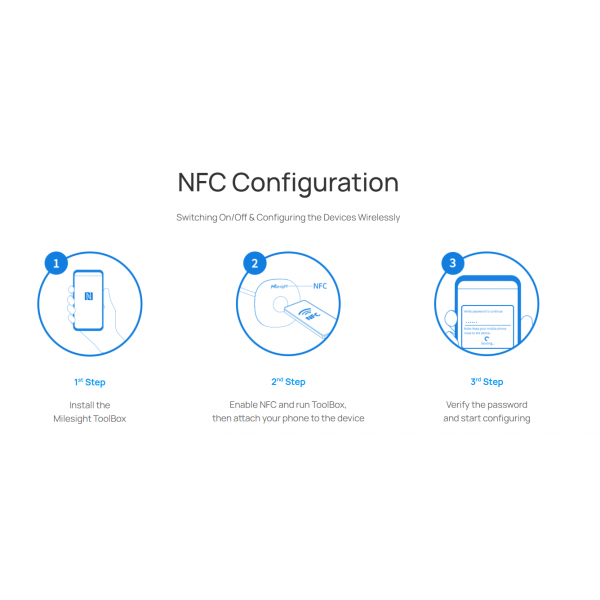

• Configuration: NFC Configuration via Mobile App
• Advanced Feature: Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm

Physical Characteristics:

• Power Supply: 1x 4000 mAh ER18505 Li-SOCI2 Replaceable Battery
• Battery Life: 10 Years (1 Hour Report Interval, 25°C)
• Operating Temperature: -30°C ~ +70°C
• Relative Humidity: 0 ~ 95% (Non-condensing)
• Ingress Protection: IP67
• Impact Protection: IK10 (Transceiver)

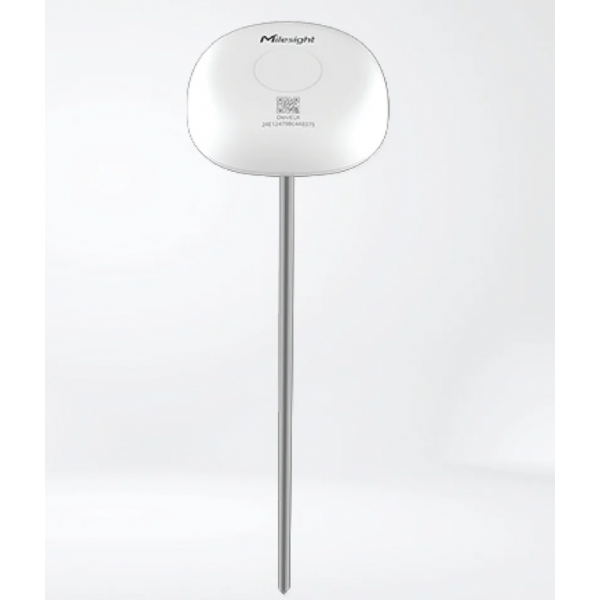

• Dimensi: Diameter 92 × 92 × 26 mm (Transceiver),  Diameter 7 × 400 mm (Sensor Probe)

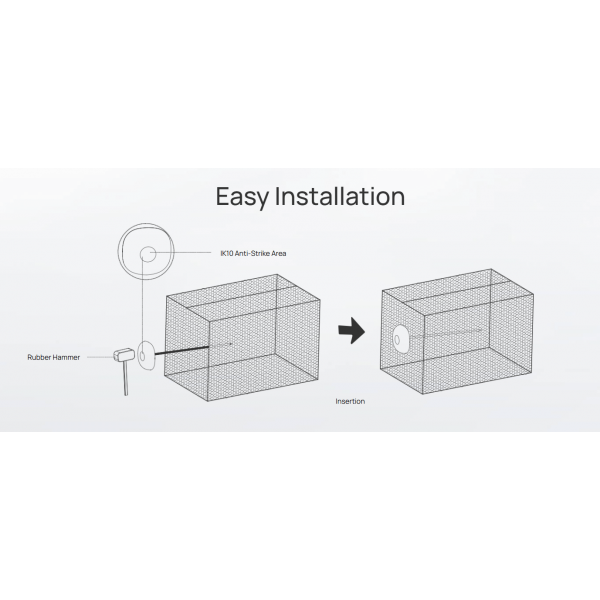

• Installation: Insert Installation

Dokumen:

1. Datasheet (Link)
2. User Guide (Link)
3. Payload Decoder (Link)
4. Firmware & SDK Download (Link)
