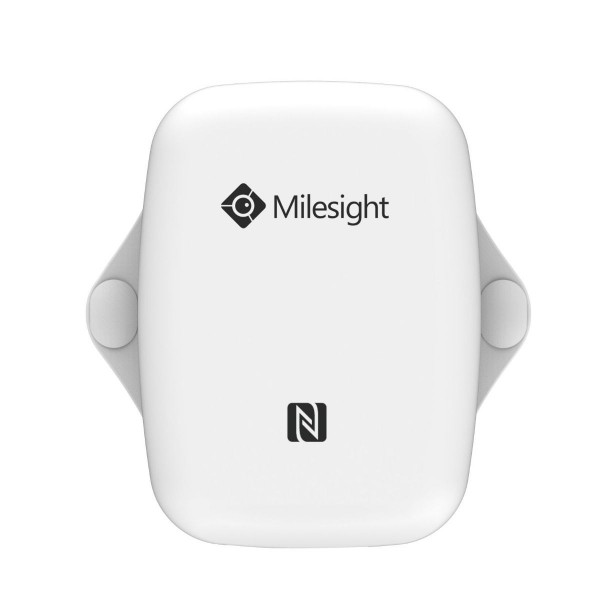

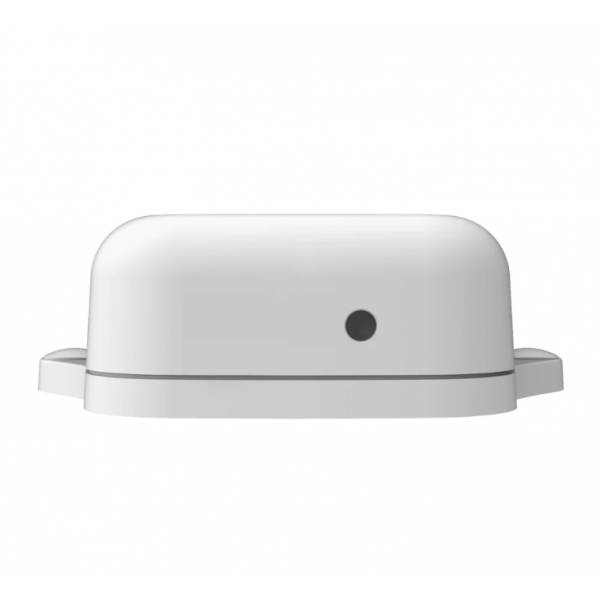

EM300-TH LoRaWAN Temperature Humidity Sensor

EM300-TH merupakan perangkat yang sudah built-in temperature sensor chip yang dapat digunakan untuk mengukur suhu dan kelembaban pada suatu lingkungan. Dilengkapi dengan teknologi LoRaWAN sehingga device ini dapat terhubung dengan jaringan LoRaWAN untuk pengelolaan data sensor maupun visualisasi data berbasis IoT.

Mengkonsumsi daya yang sangat rendah, EM300-TH dapat bertahan hingga sampai 5 tahun tanpa perlu pengecesan maupun penggantian baterai. Sudah tersertifikasi IP67 sehingga dapat digunakan pada lingkungan yang cukup ekstrem.

Fitur:

• Embeded with Sensirion High-Precision Sensor Chip
• IP67 Rated and UV Resistance
• Ultra-wide-distance Transmission Up to Line of Sight of 10km

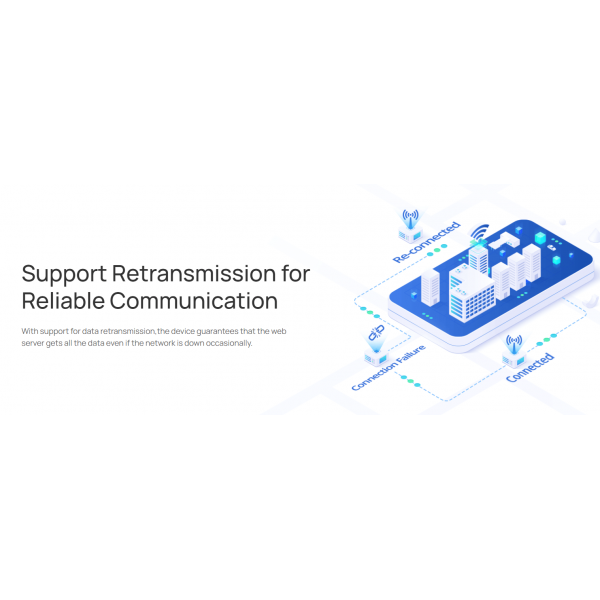

• Support Retransmission for Reliable Communication

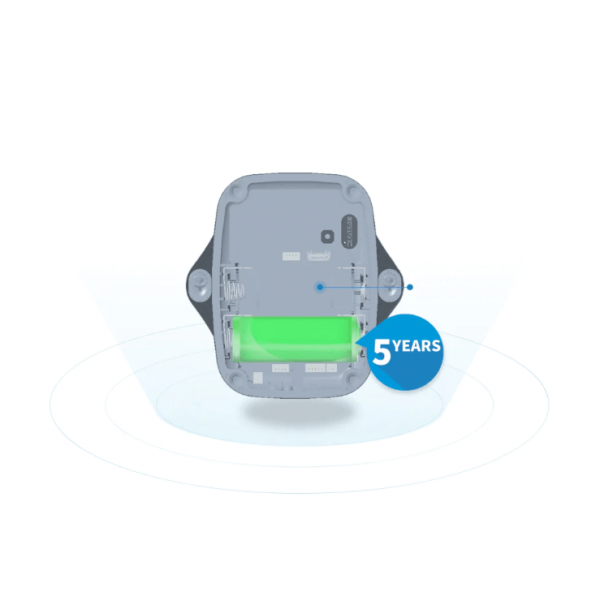

• Up to 5 Years Battery Life (Low Power)
• Detect Temperature and Humidity with Higher Accuracy
• Store Capacity with 2.800 Sets of Historical Data Records
• Equipped with NFC for Easily Configuration
• Certified for EN12830 Standard

Dapat digunakan pada lingkungan:

• Residence
• Office
• Lab
• Warehouse
• Greenhouse
• Cold Chain
• Food Preservation

Wireless Transmission:

• Teknologi: LoRaWAN
• Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1,2,3,4
• Tx Power: 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz)
• Sensitivity: -137dBm @300bps
• Mode: OTAA/ABP Class A

Measurement:

• Temperature Range: -30°C ~ +70°C
• Accuracy (Temperature): 0°C ~ +70°C (+/- 0.3°C), -30°C ~ 0°C (+/- 0.6°C)
• Resoution (Temperature): 0.1°C
• Humidity Range: 0% ~ 100% RH
• Accuracy (Humidity): 10% ~ 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
• Resolution (Humidity): 0.5% RH

Operation:

• Power On & Off: NFC, Power Button (Internal)

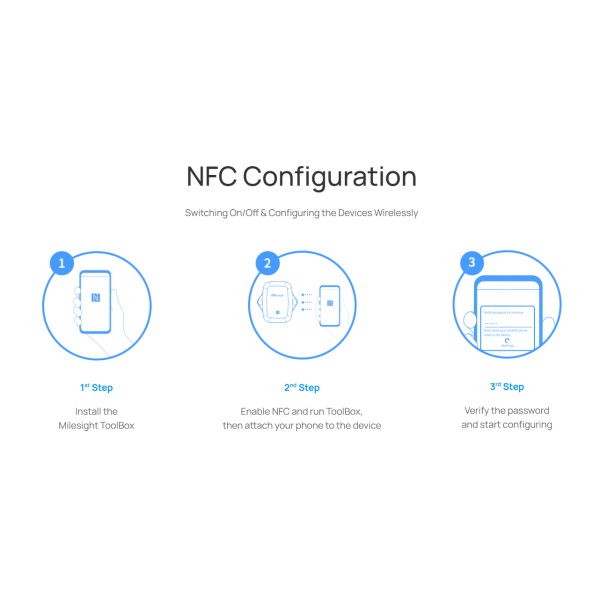

• Configuration: NFC Configuration via Mobile App
• Advanced Feature: Milesight D2D Controller, Data Storage, Data Retransmission

Physical Characteristics:

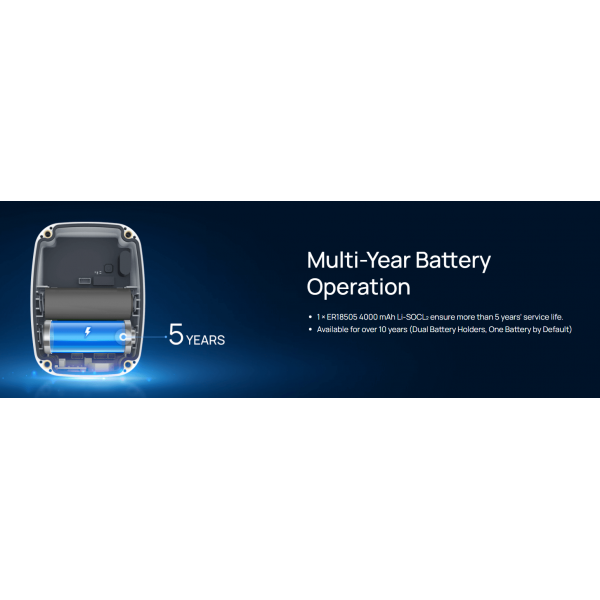

• Power Supply: 1x 4000 mAh ER18505 Li-SOCL2 Battery (Extendable to 2 Batteries)
• Battery Life: 10 Years (10 min interval)
• Operating Temperature: -30°C ~ +70°C
• Relative Humidity: 0% ~ 100% (non-condensing)
• Ingress Protection: IP67
• Dimensi: 88.5 x 85.3 x 27mm

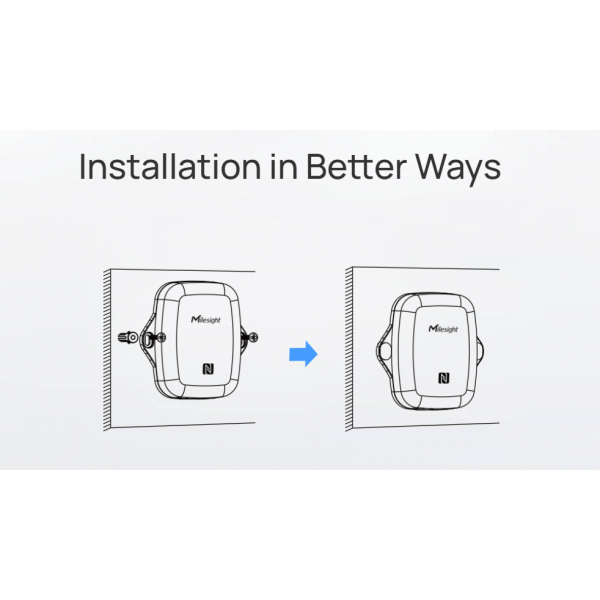

• Installation: Wall Mounting

Dokumen:

1. Datasheet (Link)
2. User Guide (Link)
3. Payload Decoder (Link)
4. Firmware & SDK Download (Link)
