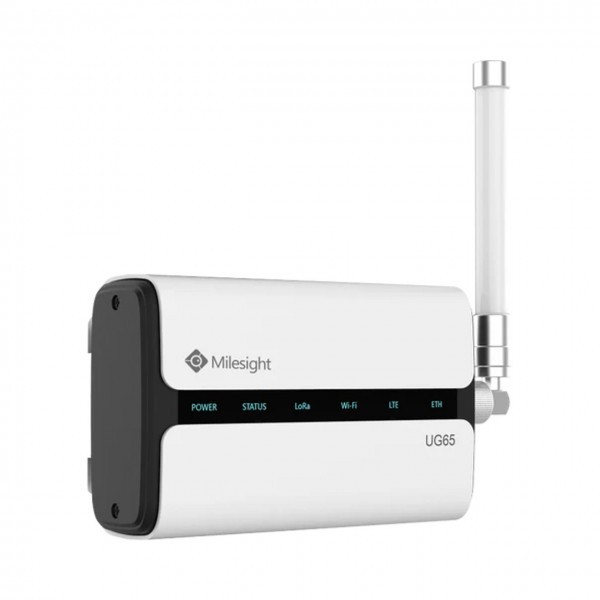

UG65 Semi-industrial LoRaWAN Gateway with Cellular 4G

UG65 merupakan gateway LoRaWAN indoor 8-channel yang dirancang untuk aplikasi IoT. Gateway ini menggunakan chip SX1302 dan sudah menggunakan prosesor Quad-core berkinerja tinggi. UG65 mampu mendukung koneksi lebih dari 2000 node secara bersamaan. Selain itu, juga support multiple backhaul: Ethernet dan WiFi.

Selain itu, gateway ini juga sudah support jaringan seluler 4G.

Fitur:

• IP65 Rating
• NXP Quad-Core Processor
• Semtech SX1302 LoRa Chip
• Multiple Backhaul Connectivities
• Support Seluler 4G
• Compatible with Multiple Network Servers
• Global LoRaWAN Frequency Plans

Hardware System:

• CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
• Memory: 512 MB DDR4 RAM
• Flash: 8GB eMMC

LoRaWAN:

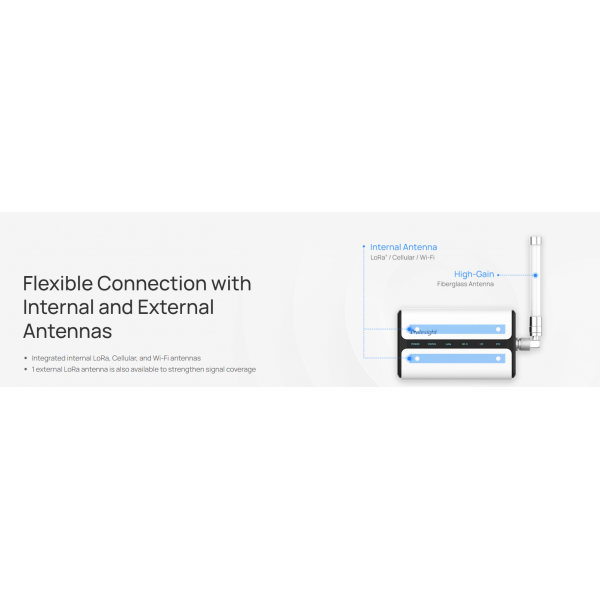

• Antenna: 2x Internal Antennas + 1x 50 Ohm N-Female External Connector
• Channel: 8 (Half/Full-duplex)
• Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1,2,3,4
• Sensitivity: -140 dBm Sensitivity @292 bps
• Output Power: 27 dBm Max
• Protocol: V1.0 Class A/Class B/ Class C and V1.0.2 Class A/Class B/Class C

Ethernet Interface:

• Port: 1x RJ45 (PoE PD Supported)
• Physical Layer: 10/100/1000 Base-T (IEEE 802.3)
• Data Rate: 10/100/1000 Mbps (Auto-Sensing)
• Interface: Auto MDI/MDIX
• Mode: Full or Half Duplex (Auto-Sensing)

WiFi Interface:

• Antenna: Internal Antenna
• Standards: IEEE 802.11 b/g/n, 2.4GHz
• Mode: AP or Client Mode
• Security: WPA/WPA2 Authentication, WEP/TKIP/AES Encryption
• Tx Power:
• 802.11b: 18 dBm +/- 2.0 dBm (11 Mbps)
• 802.11g: 15 dBm +/- 2.0 dBm (6 Mbps)
• 802.11n@2.4GHz: 14 dBm +/- 2.0 dBm (MCS0_HT20)
• 802.11n@2.4GHz: 14 dBm +/- 2.0 dBm (MCS7_HT20)
• 802.11n@2.4GHz: 13 dBm +/- 2.0 dBm (MCS0_HT40)
• 802.11n@2.4GHz: 13 dBm +/- 2.0 dBm (MCS7_HT40)

Cellular Interface:

• Supports: 2G, 3G, dan 4G
• Antenna: Internal Antenna
• SIM Slot: 1 (mini SIM-2FF)
• TX Power: Class 3 (23 dBm +- 2 dB)

Others:

• Reset Buttons: 1x RST
• Console Port: 1x Type-C
• LED Indicators:
• 1x POWER
• 1x STATUS
• 1x LoRa
• 1x Wi-Fi
• 1x LTE
• 1x ETH
• Built-in: Watchdog, RTC, Timer
• Power Connector: 1x DC Male Jack Connector

Software:

• Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus TCP, Modbus RTU over TCP, etc
• VPN Tunnel: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard
• Firewall: ACL/DMZ/Port Mapping/MAC Binding/URL Filter
• Management: Web, CLI, SMS, On-demand Dial Up, DeviceHub, Milesight IoT Cloud
• Reliability: WAN Failover
• App: Python SDK, Node-RED

Power Supply and Consumption:

• Power Input: DC Jack Connector for 9 ~ 24DC, 1x 802.3 af PoE Input
• Power Consumption: Typical 2.9W, Max 4.2W

Physical Characteristics:

• Ingress Protection: IP65
• Dimensi: 180 x 110 x 56.5 mm

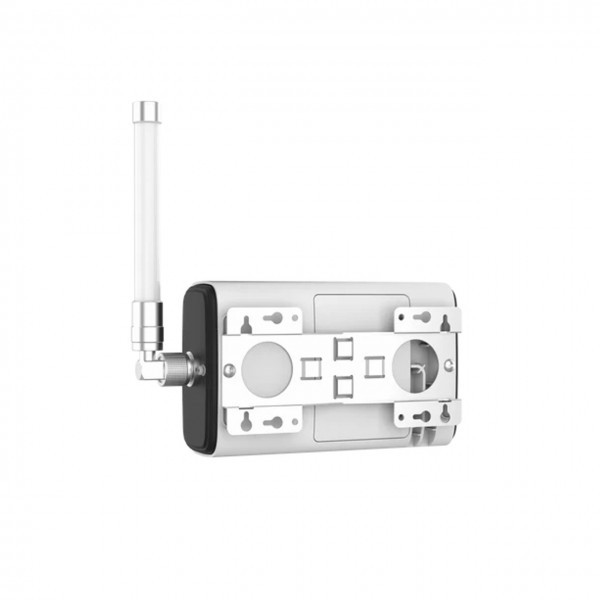

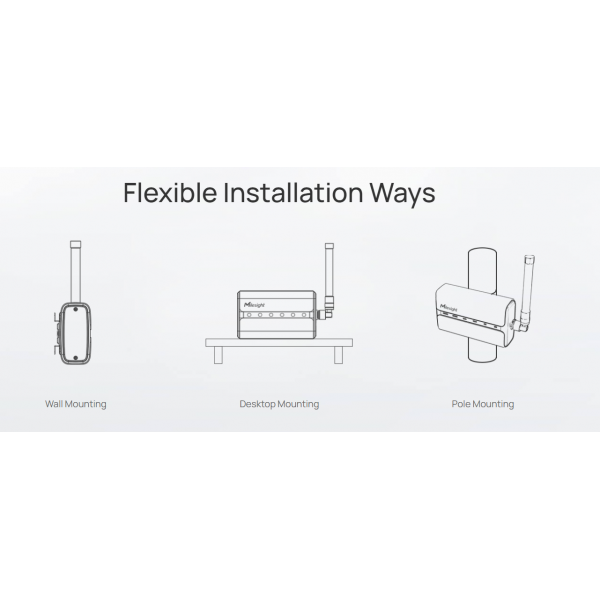

• Installation: Desktop, Wall or Pole Mounting

Environmental:

• Operating Temperature: -40°C ~ +70°C
