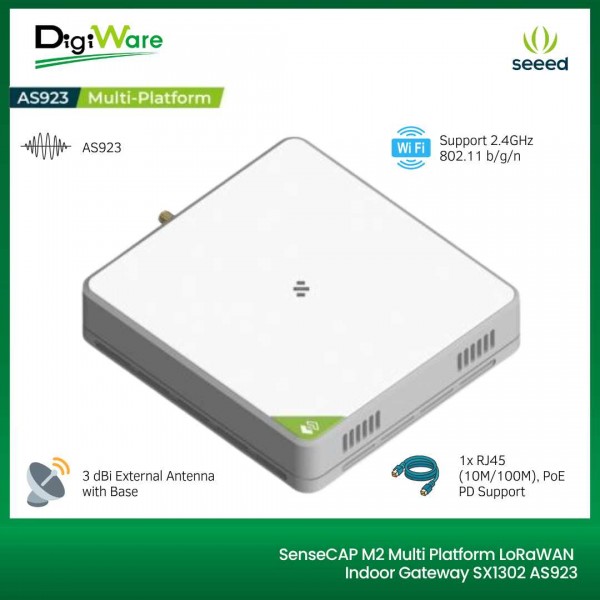

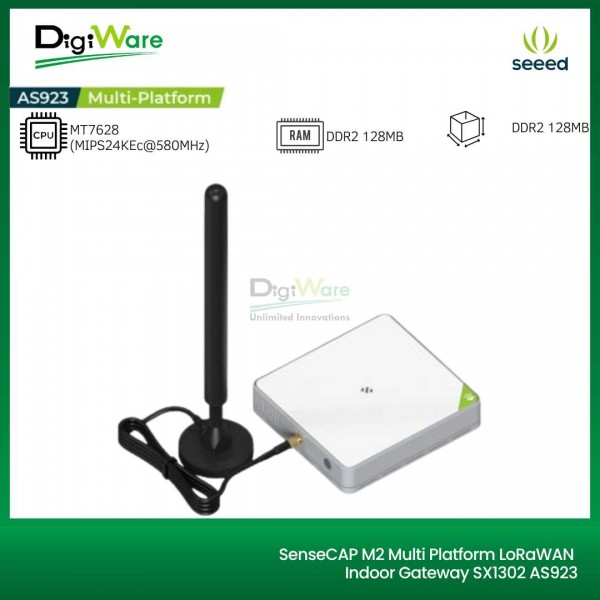

SenseCAP M2 Multi Platform LoRaWAN Indoor Gateway SX1302 AS923

SenseCAP M2 merupakan LoRaWAN gateway yang dibuat sesuai degan standar protokol LoRaWAN. Gateway ini kompatibel dengan platform-platform server LoRaWAN seperti AWS, TTN, ChirpStack, dan lain sebagainya.

SenseCAP M2 mendukung multi-platform server LoRaWAN, namun tidak mendukung untuk terhubung ke Helium Network sehingga tidak bisa dihubungkan dengan SenseCAP Hotspot APP dan SenseCAP Dashboard.

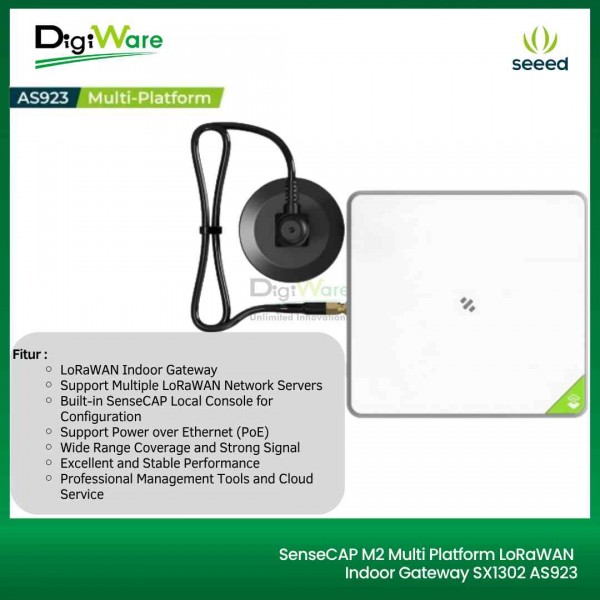

Fitur :

• LoRaWAN Indoor Gateway
• Support Multiple LoRaWAN Network Servers
• Built-in SenseCAP Local Console for Configuration
• Support Power over Ethernet (PoE)
• Wide Range Coverage and Strong Signal
• Excellent and Stable Performance
• Professional Management Tools and Cloud Services

Spesifikasi :

• Catu Daya : 12V 2A VDC dan 40V ~ 57VDC (PoE, IEE 802.3 af)
• Prosesor : MT7628 (MIPS24KEc@580MHz)
• RAM : DDR2 128MB
• Flash : 32MB
• Long Range Gateway Chip : SX1302
• Channel : 8
• LoRaWAN Protocol : V1.0.3 Class A/Class B/Class C
• Frekuensi : AS923
• Long Range Sensitivity : -125dBm @125KHz/SF7 dan -139dBm @125KHz/SF12
• Long Range TX Power : Up to 26 dBm
• Antenna : 3 dBi External Antenna with Base
• Impedansi Antena : 50 Ohm
• Wi-Fi : Support 2.4GHz 802.11 b/g/n
• Ethernet : 1x RJ45 (10M/100M), PoE PD Support
• Antarmuka : 1x RJ45, 1x RP-SMA Female Antenna Connector, 1x Micro SD Card Slot, 1x USB Type-C
• Management Software : Web
• Suhu Operasi : -20°C ~ +55°C
• Dimensi : 143.6x135x34mm (connector not included) dan 150.6x135x34mm (connector included)

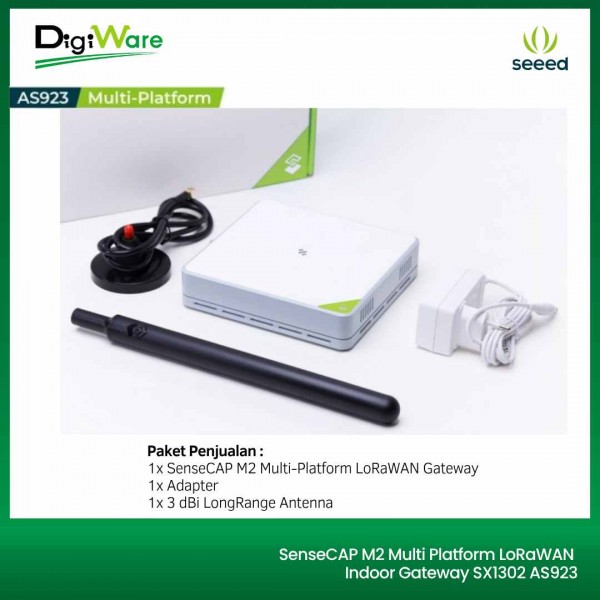

Paket Penjualan :

1x SenseCAP M2 Multi-Platform LoRaWAN Gateway
1x Adapter
1x 3 dBi LongRange Antenna

Dokumen :

1. Quick Start for SenseCAP Gateway & Sensor (Link)
2. Connect M2 Multi-Platform Gateway to The Things Network (Link)
3. Connect M2 Multi-Platform Gateway to AWS IoT (Link)
