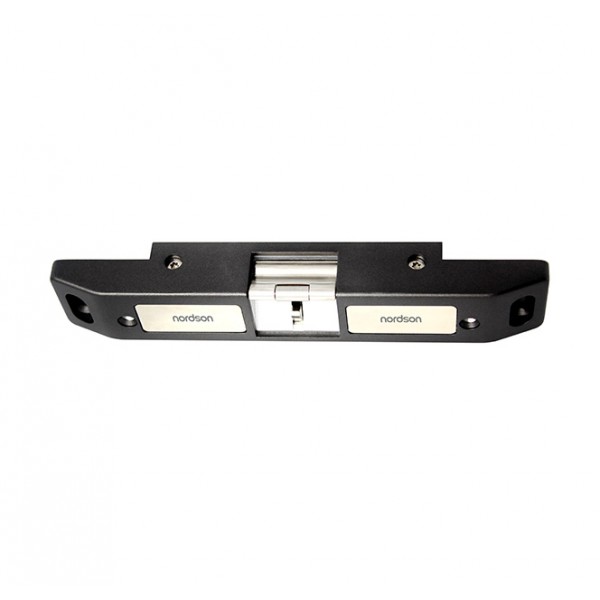

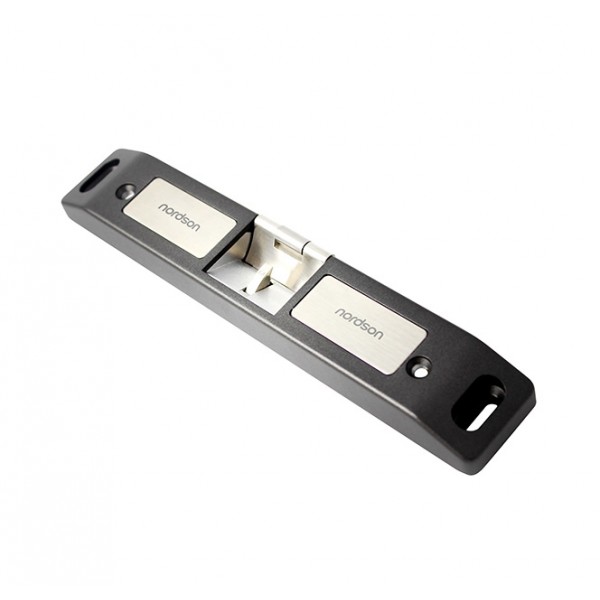

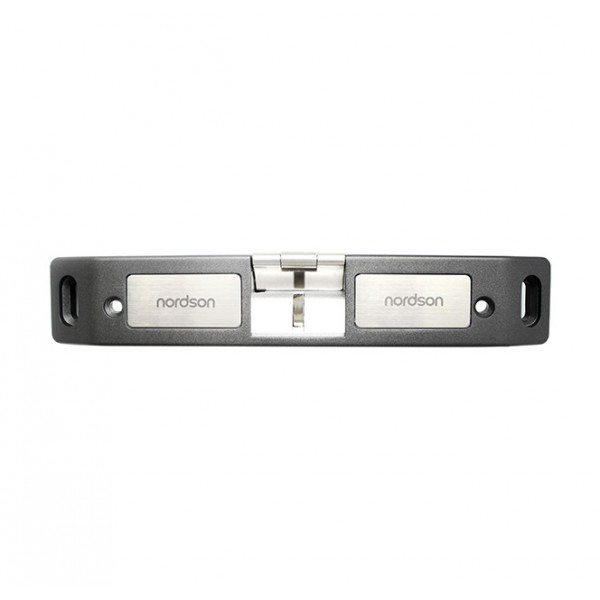

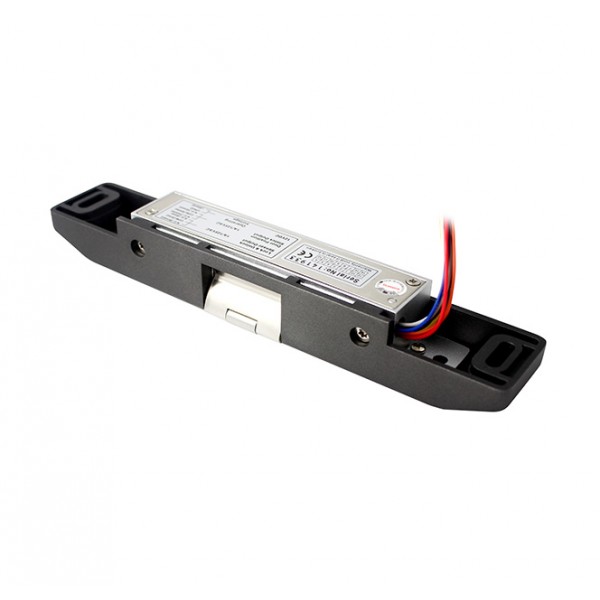

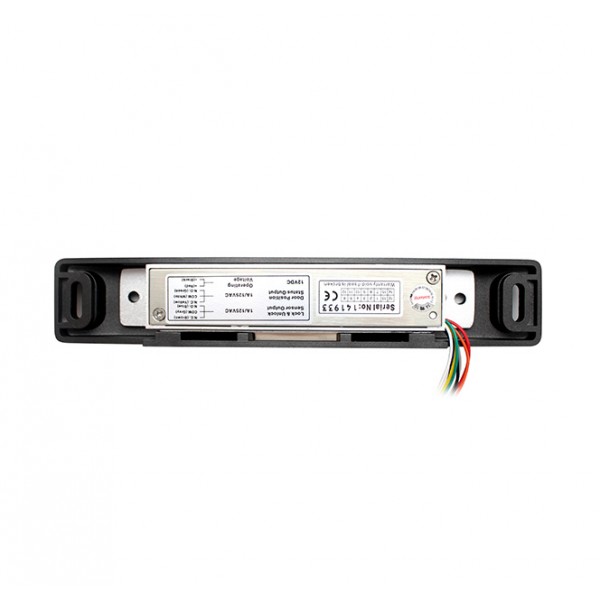

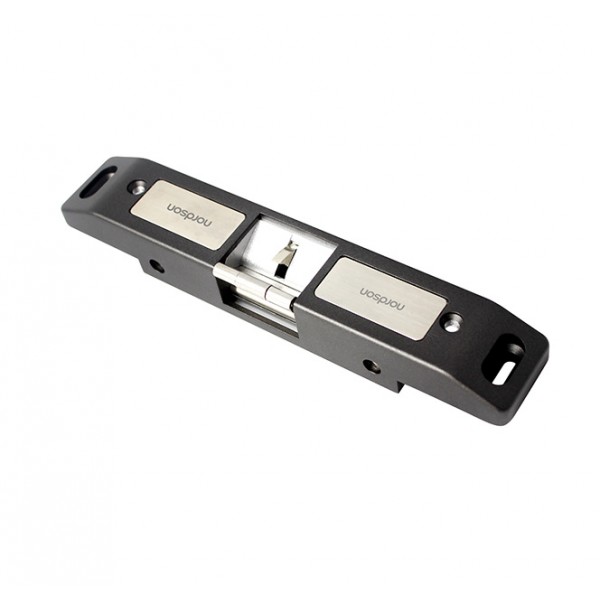

NJ-370A-S Electric Strike Hardware for Emergency Exit

NJ-370A-S merupakan eletric strike khusus untuk pintu emergency exit yang dirancang untuk bekerja dengan push bar/panic bar pada pintu darurat sehingga memungkinkan kontrol akses tanpa mengurangi fungsi evakuasi darurat.

Fitur:

• Mode Kerja Fleksibel support (Fail-safe, unlock saat listrik mati) dan (Fail-secure, lock saat listrik mati)
• Dua Mode Operasi (Power-to-open dan Power-to-lock)
• NO, NC, COM Signal Output
• Kompatibilitas Tinggi Cocok untuk berbagai Fire Push Bar Lock (multi-brand)

Aplikasi:

• Pintu Darurat
• Gedung Perkantoran, Mall, dan Rumah Sakit
• Sistem Keamanan Terintegrasi (Access Control System)

Spesifikasi:

• Version: NJ-370A-S: Fail-locked (the strike is locked when the current is off)
• Shear Strength: 2200Lbs (1000kg)

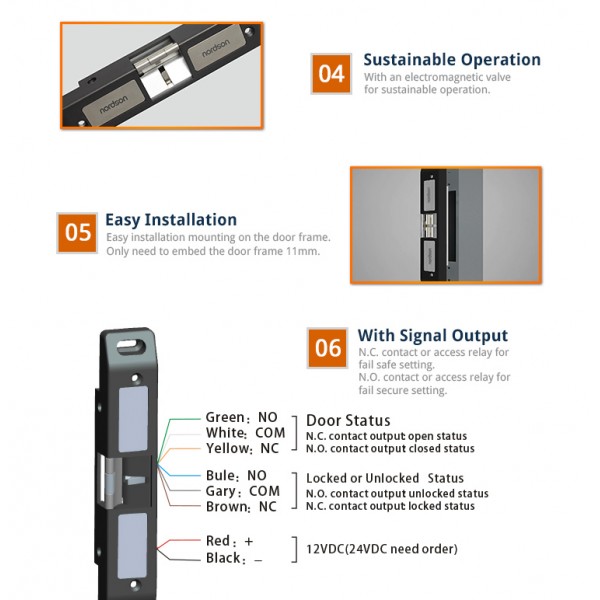

• Lock Status Sensors: Dry Contact NO, NC, COM
• Rated Operating Voltage: DC 12V/24V
• Standby Current: 12V/220mA atau 24V/110mA
• Face Place Material: High Aluminum
• Lock Tongue: 304 Stainless Steel
• Surface Temp: Low Temperature
• Ambient Temperature in C: -10°C - +55°C

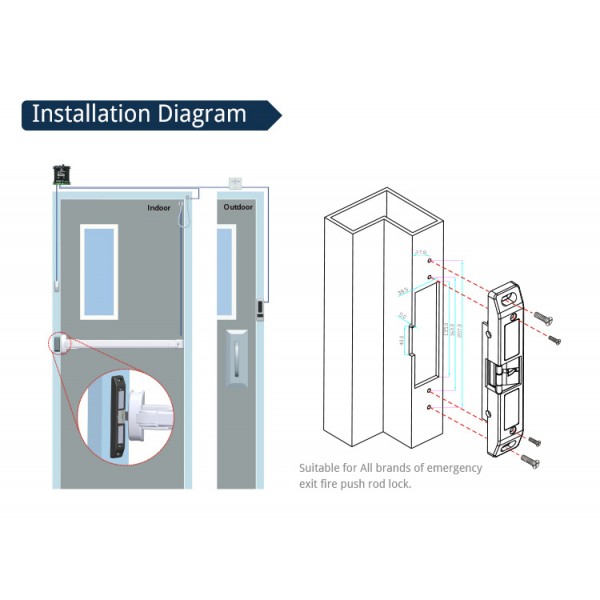

• Suitable for: All brands of emergency exit fire push rod lock
• CE-mark for Building: YES
• RoHS-mark for Building: YES

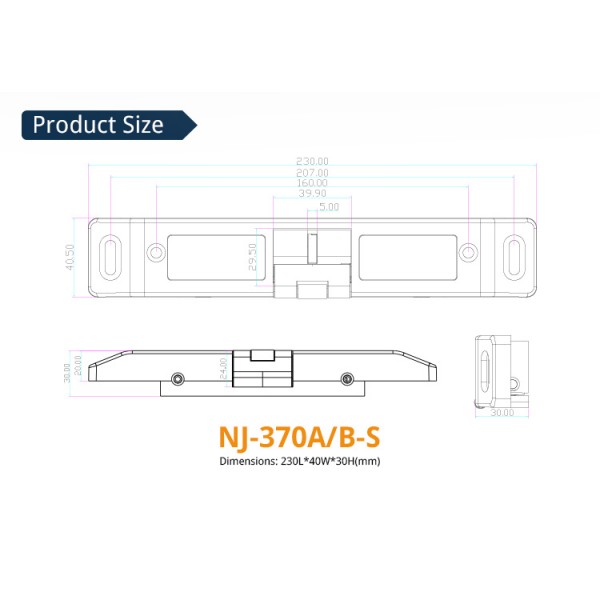

• Strike Plate Dimensiuns: 230 x 40 x 30 mm
