ESP32-S3 7 inch Display Development Board 800480 32-bit LX7 Dual-core Processor Up to 240MHz Frequency WiFi Bluetooth with Touc

432-488

Stok Produk
Surabaya3 pcs

Close

Rp 789.000

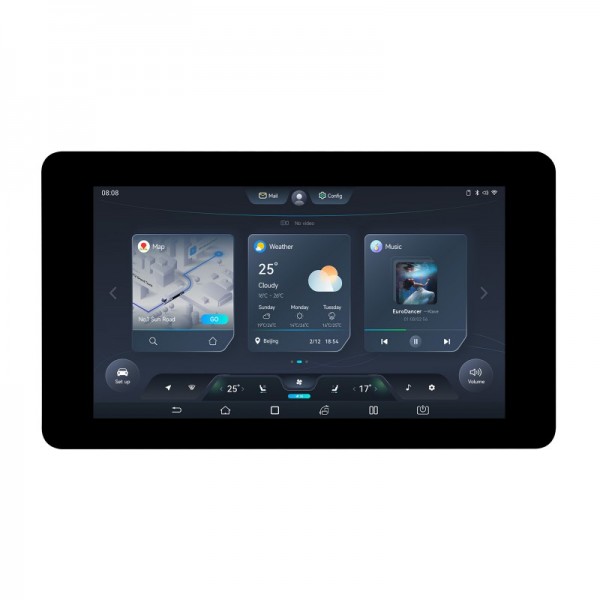

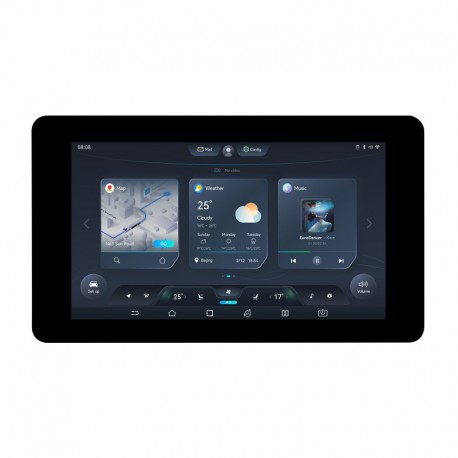

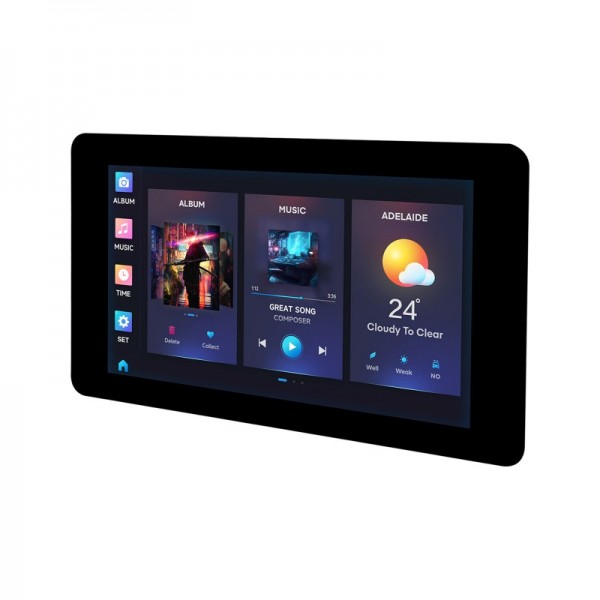

ESP32-S3 7 inch Display Development Board merupakan HMI (Human-machine Interface) berbasis ESP32-S3 yang sudah dilengkapi dengan LCD IPS 7 inch layar sentuh kapasitif. HMI ini sudah mendukung konektivitas nirkabel (WiFi dan Bluetooth) dan juga dilengkapi dengan antarmuka seperti CAN, RS485, I2C, SD-Card untuk dapat terhubung dengan banyak perangkat seperti sensor dan lain sebagainya.

Memiliki memori yang cukup besar dan mendukung LVGL untuk GUI builder membuat pengguna dapat berkreasi tanpa batas menggunakan perangkat ini. HMI ini sangat cocok digunakan untuk keperluan IoT, sistem kendali industri, dashboard smarthome, dan lain sebagainya.

Aplikasi:

    • Human-machine Interface
    • LVGL GUI Development

Fitur:

    • Equipped with Xtensa 32-bit LX7 Dual-core Processor up to 240MHz Main Frequency
    • Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with Onboard Antenna
    • Built in 512KB of SRAM and 384KB ROM, with Onboard 8MB PSRAM and 16MB Flash

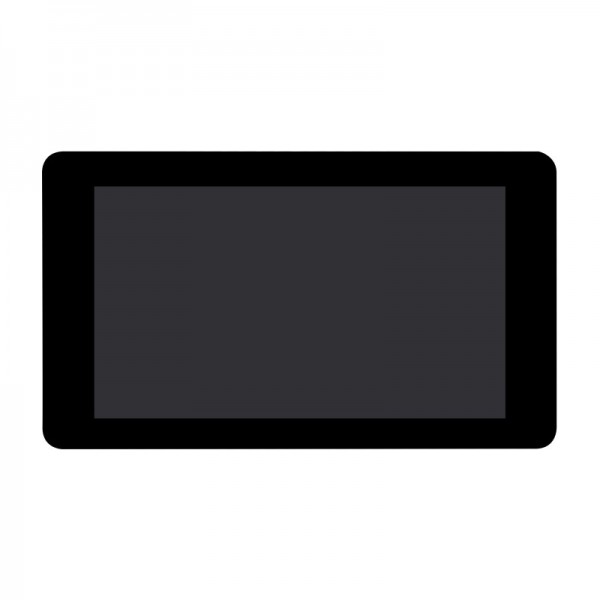

    • Onboard 7 inch LCD Display, 800x480 Resolution, 65K Color (Capacitive Touch Control)
    • Supports 5-Point Capacitive Touch Control via I2C Interface, with Interrupt support

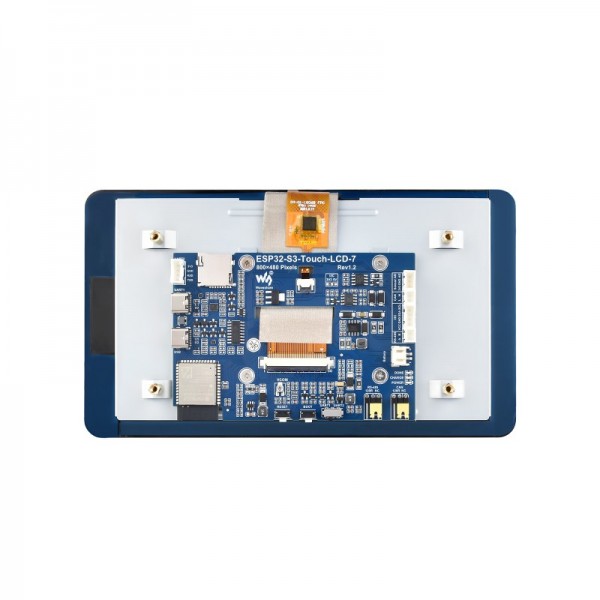

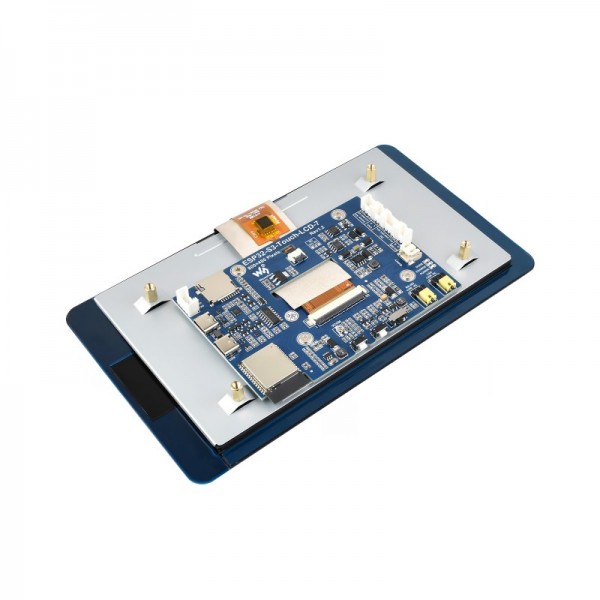

    • Onboard CAN, RS485, I2C Interface and TF Card Slot, Integrates Full-speed USB Port
    • Supports Flexible Clock, Module Power Supply Independent Setting, and Other Control to Realize Low Power Consumption in Different Scenarios

Spesifikasi;

    • Prosesor: ESP32 Xtensa 32-bit LX7 Dual-core Processor (240MHz Main Frequency)
    • Memory: 512KB (SRAM), 384KB (ROM), 8MB (PSRAM), dan 16MB (Flash)
    • LCD: 7 inch 800x480 (6K Color)
    • Touchscreen: 5-Point Capacitive Touch Control via I2C Interface
    • Antarmuka: CAN, RS485, I2C Interface, TF Card Slot, dan USB Port

Dokumen:

1. Panduan Penggunaan (Link)
