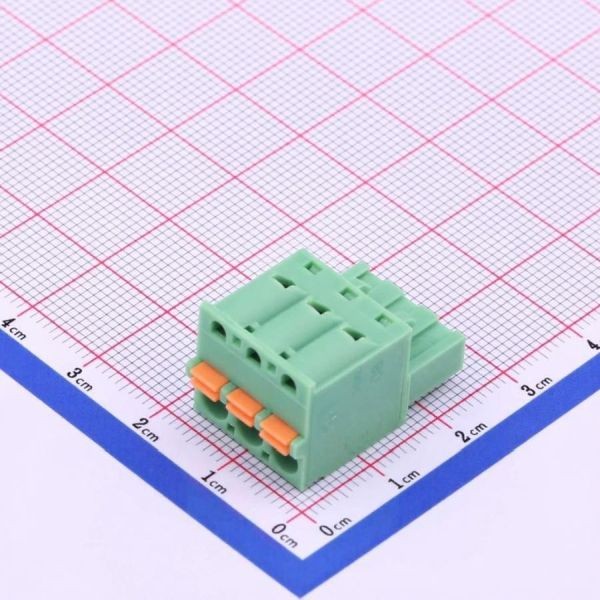

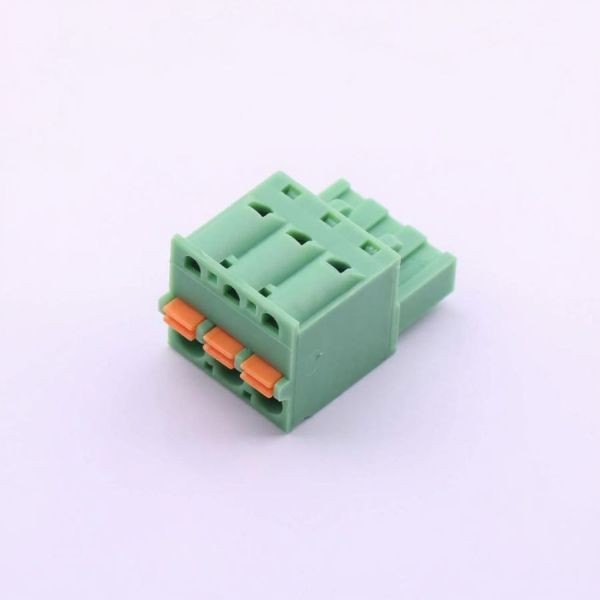

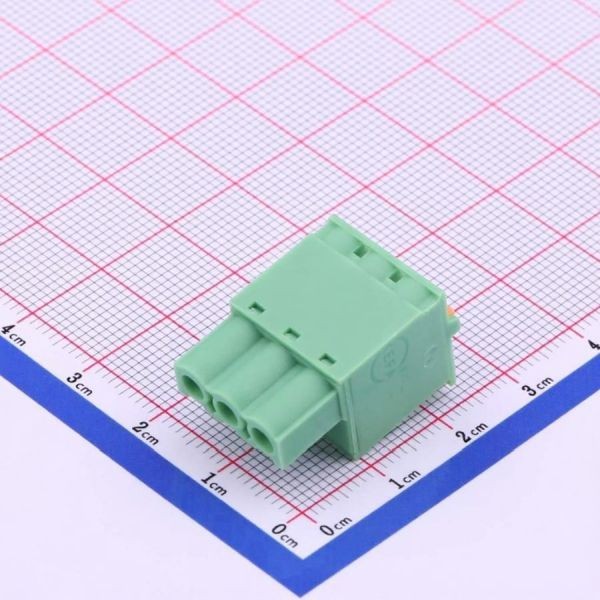

Terminal Block Pluggable KF2EDGKD 3 Pin Male 5.08mm Hijau

Terminal Block Pluggable KF2EDGKD Male 300V 15A 3 -40℃~+105℃ 2.5 1 12~24 5.08mm 1x3P P=5.08mm

Spesifikasi :

• Kategori: Konektor / Terminal Block Sistem Plug-in
• Tegangan Maksimum: 300V
• Arus Maksimum: 15A
• Jumlah Pin per Baris: 3
• Suhu Operasional: -40℃ ~ +105℃
• Jumlah Pin: 3P
• Luas Penampang Kabel (mm²): 2.5 mm²
• Jumlah Baris: 1
• Ukuran Kabel (AWG): 12 ~ 24 AWG
• Pitch: 5.08mm
• Jumlah Posisi/Pin: 1x3P
• Warna: Hijau
• Jenis Konektor: Plug
• Standar: ROHS

Dokumen :

• Datasheet [Link]
