reCamera 2002 64GB eMMC Open Source Tiny Size AI Camera

reCamera 2002 merupakan perangkat kamera yang sudah terintegrasi dengan AI yang dirancang untuk keperluan deteksi objek seperti orang, benda, dan lain sebagainya dengan performa sebesar 1 TOPS untuk format data Int8.

Memiliki desain yang kecil serta modular, sehingga reCamera ini dapat diinstal di rumah, kantor atau bahkan untuk keperluan di industri.

Fitur:

• Custom Sensor Compatibility
• 1 TOPS AI Performance (Int8)
• No-code Setup for AI
• Support AI Framework
• No-code Setup for AI
• Flexible Interface Expansion

Spesifikasi:

• Power Input: 5V 1A
• SoC: SG2002
• CPU: C906@1GHz + C906@700MHz
• MCU: 8051@8KB SRAM
• Memory: 256MB
• AI Performance: 1 TOPS @Int8
• Video Encode: 5MP @30Fps
• Camera Sensor: OV5647
• eMMC: 64GB
• Expansion: Removable TF Card (Up to 2TB, Not included)
• Ethernet: 100MBps
• Wireless: - (tidak ada)
• USB: USB Type-C (2.0)
• Button: 1 Reset Button, 1 Boot Button
• Mic: On-board Mic
• Dimensi: 40 x 40 x 36.5mm

Paket Penjualan:

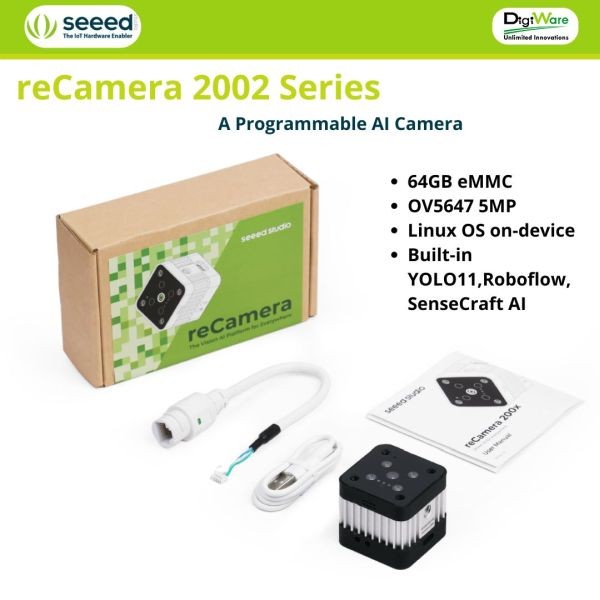

1x reCamera 2002 64GB
1x USB Type-C Cable
1x Ethernet Cable

Dokumen:

1. Panduan Penggunaan (Link)
2. Datasheet (Link)
3. reCamera Github (Link)

Produk Terkait:

1. reCamera 2002w 64GB eMMC Open Source Tiny Size AI Camera with 2.4GHz/5GHz WiFi and BLE 5.0
2. reCamera 2002w 8GB eMMC Open Source Tiny Size AI Camera with 2.4GHz/5GHz WiFi and BLE 5.0

reCamera Series Comparison

reCamera 2002 Series		reCamera 2002	reCamera 2002w
Processor System	Al Performance	1TOPS@Int8
	SOC	SG2002
	CPU	C906@1GHz + C906@700MHz
	MCU	8051@8KB SRAM
	Memory	256MB
	Video Encode	5MP @ 30Fps
Camera Sensor		OV5647
Storage	eMMC	8GB / 64GB
	Expansion	removable TF card (up to 2TB, not included)
I/O	Ethernet	100Mbps
	Wireless	/	WIFI2.4G/5G BT4.2/5.0
	USB	USB Type-C(2.0)
	Button	1 Reset Button, 1 Boot Button
	Fill Light	0.3w White Light
	Status Light	1 Power Indicator, 2 IO Programmable
Audio	Mic	On-board Mic
	Speaker	External Speaker
Dimension		40x40x36.5mm
Power		5V 1A
