Arducam 1080P Day/Night Vision USB Camera, 2MP Infrared Webcam with Automatic IR-Cut Switching and IR LEDs

Arducam 1080P Day/Night Vision USB Camera, 2MP Infrared Webcam with Automatic IR-Cut Switching and IR LEDs.

Aplikasi:

• Animal Monitoring
• Video Surveillance
• 3D Scanning and Metrology
• Home Surveillance System
• Dashcam
• Dan lain sebagainya

Fitur:

• Full HD 1080P: Based on the 1/2.7" OV2710 CMOS, delivering smooth 30fps@1080p video recording for unparalleled clarity and detail.
• Day/Night Vision USB Cam: Equipped with a photoresistor and 6pcs 850nm IR LEDs, experience superior visibility even in low-light scenarios, ensuring sharp and vivid imagery round the clock.
• Expansive Perspective with Wide-Angle Lens: Enjoy maximized light intake with the 105°(D) wide-angle starlight lens boasting an F1.6, enabling remarkable sensitivity and intricate detail capture across the entire frame.

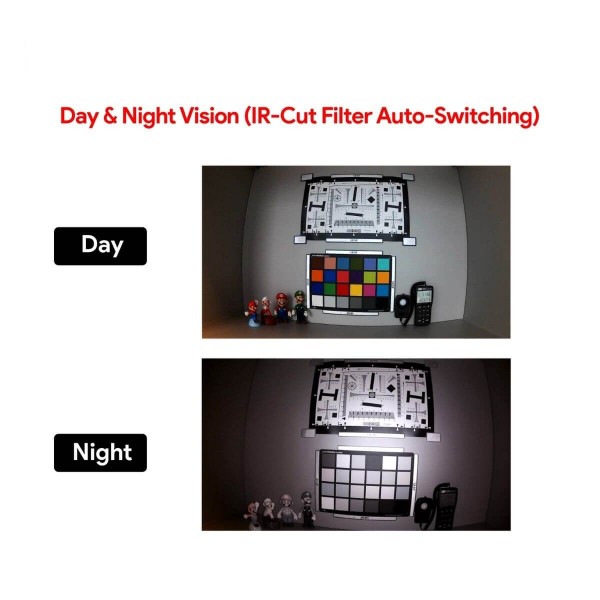

• Seamless Day-to-Night Transitions: Effortlessly adapt to changing light conditions with automatic IR-cut switching. Experience enhanced night vision without manual adjustments as the camera seamlessly activates its 850nm IR LEDs for unparalleled clarity.
• Hassle-Free Setup: Enjoy instant usability with plug-and-play convenience. Compliant with the UVC protocol, no additional drivers are needed. Simply connect via USB to your preferred device for versatile applications including security monitoring, home surveillance, dashcam, and more.

Spesifikasi:

Image Sensor:

• Sensor: OV2710
• Resolusi: 2 Megapixels
• Color Filter Type: Color
• Shutter Type: Rolling
• Optical Size: 1/2.7"
• Output Format: MJPG/YUY2
• Pixel Size: 3um x 3um
• Sensor Active Area: 1920 (H) x 1080 (V)
• Frame Rate: MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 YUY2: 30fps@320*240,352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960,1280*1024,1920*1080

Lens:

• Focus Type: Manual

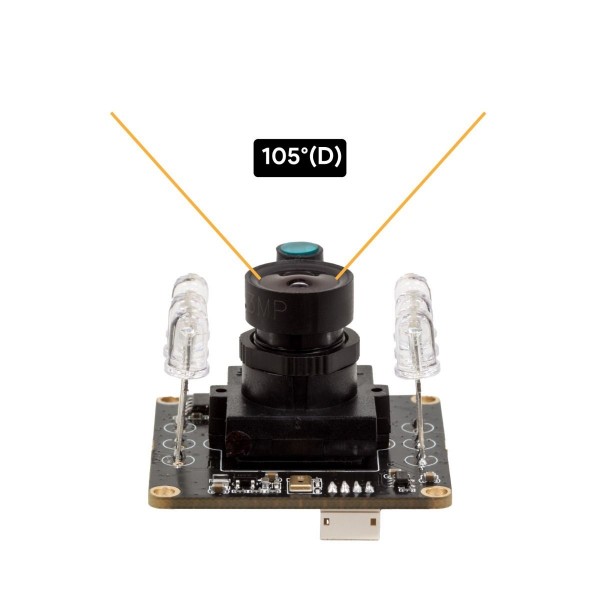

• FoV: 105°(D) x 92°(H) x 76°(V)
• Lens Mount: M12 (S-Mount)
• F.NO: F1.6 +- 10%
• E.F.L: 4.3 +- 5%
• IR Sensitivity: Integral IR-Cut Filter (Only sensitive to visible light during the day, sensitive to IR at night with 850 IR LEDs on)
• Default Focus Range: 2m - ∞

USB Interfaces:

• Default Focus Range: 2m - ∞
• Connector: B4B-ZR
• UVC Compliant: No Additional Drivers Required

Electrical and Mechanical:

• Operating Voltage: 5V +/- 5%
• Operating Temperature: 0°C ~ 70°C
• Power Requirements: 2W (Maks)

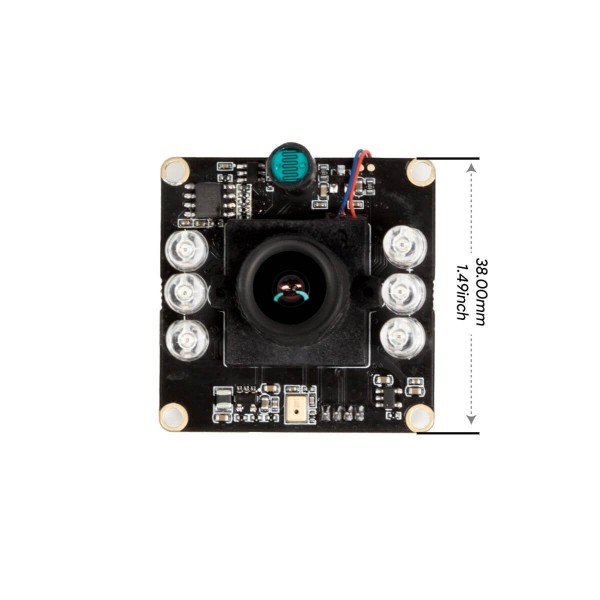

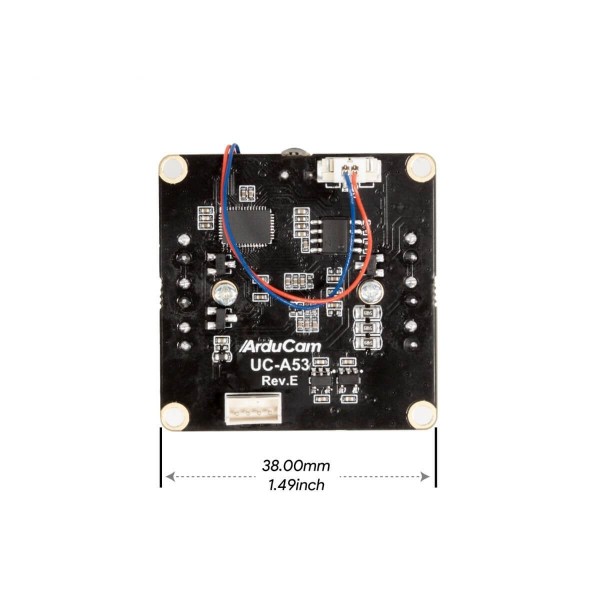

• Camera Board Size: 38x38mm

Functionality and Compatibility

• Audio: Single Microphone

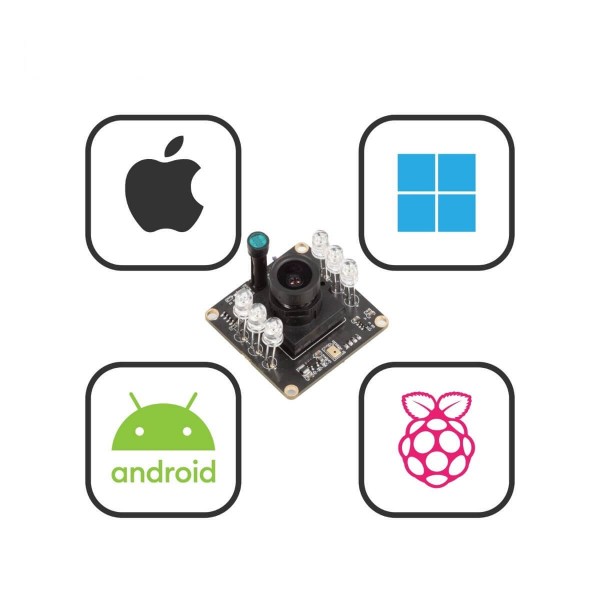

• Supported OS: Windows, Linux, Android, and Mac OS
• Recommended Sample Application: Amcap for Windows
• UVC Controls: Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto)

Paket Penjualan:

1x Ov2710 USB 2.0 Camera
1x 1m USB 2.0 Cable

Dokumen:

1. Datasheet (Link)
2. Quick Start Guide (Link)
3. 3D Drawing (Link)
