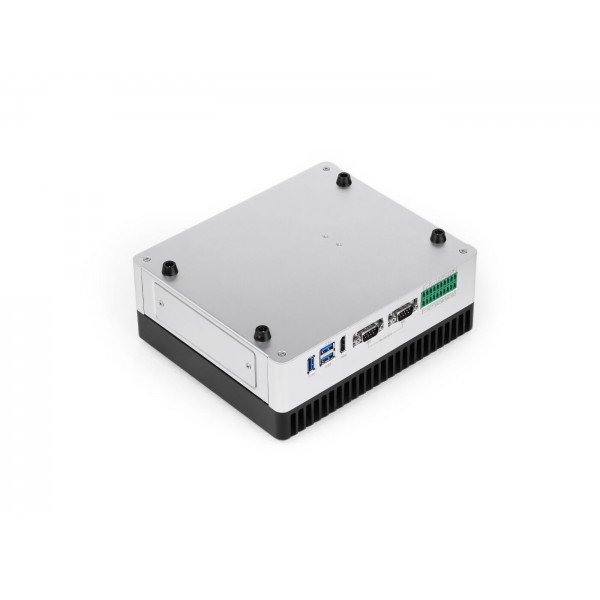

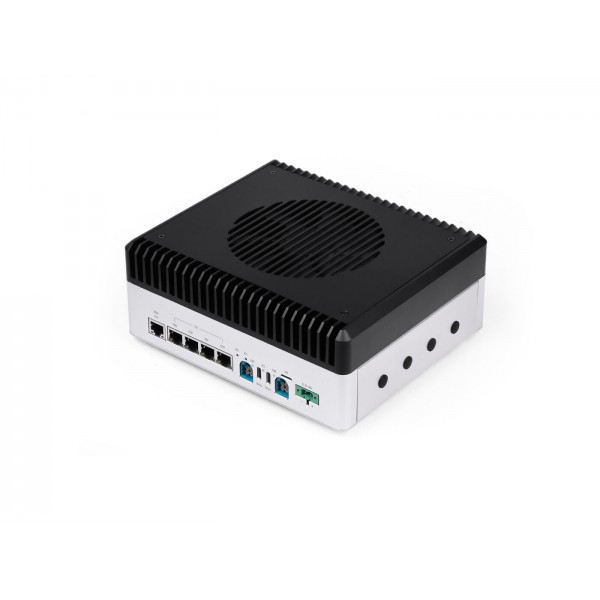

reComputer Robotics J5011 with GMSL Ultra Advanced Edge AI Computer with NVIDIA Jetson AGX Orin 32GB

reComputer J5011 merupakan edge AI computer kelas industri yang dirancang khusus sebagai "otak robot" untuk sistem robotika canggih dan autonomous system.  Ditenagai oleh NVIDIA Jetson AGX Orin 32GB, perangkat ini mampu menjalankan:

• Computer Vision Real-time
• Sensor Fusion
• Autonomous Navigation
• AI Decision-making

Fitur:

• Performa AI Tinggi up to 200 TOPS
• Support Multi-camera
• Vision AI + GMSL: support hingga 8 kamera GMSL
• Konektivitas Super Lengkap: Networking, Inudstrial Interface, Peripheral & Expansion
• Storage & Expansion Fleksibel: 2x M.2 Key M (NVMe SSD), 1x M.2 Key E (WiFi/Bluetooth), dan 1x M.2 Key B (4G/5G)

Aplikasi:

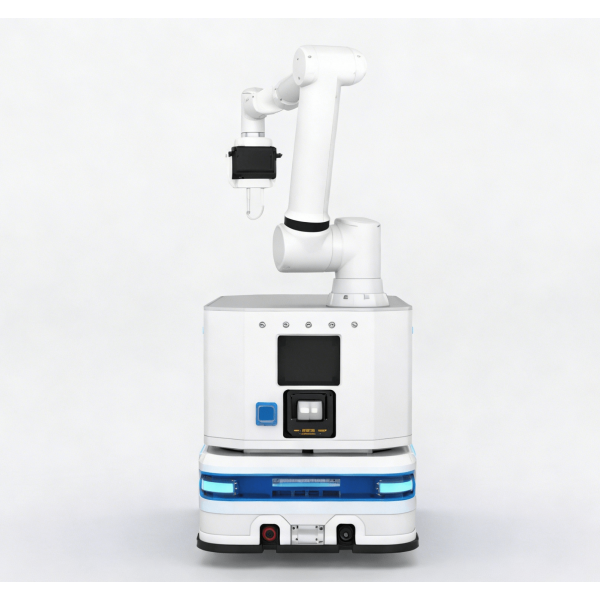

• Autonomous Mobile Robot
• AI Robot Development

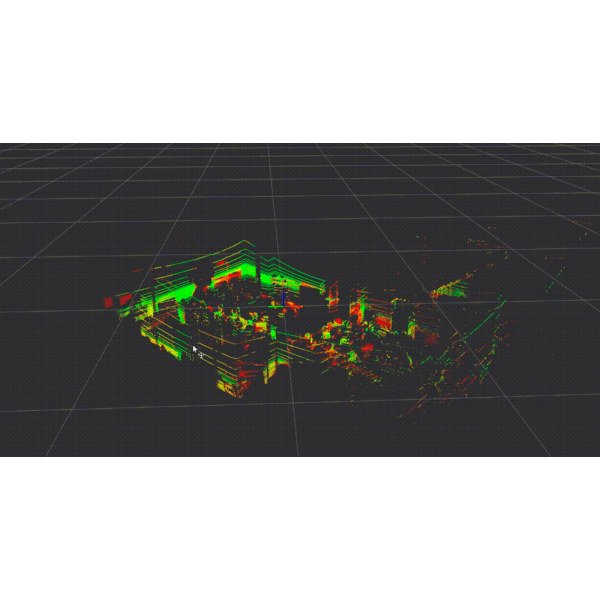

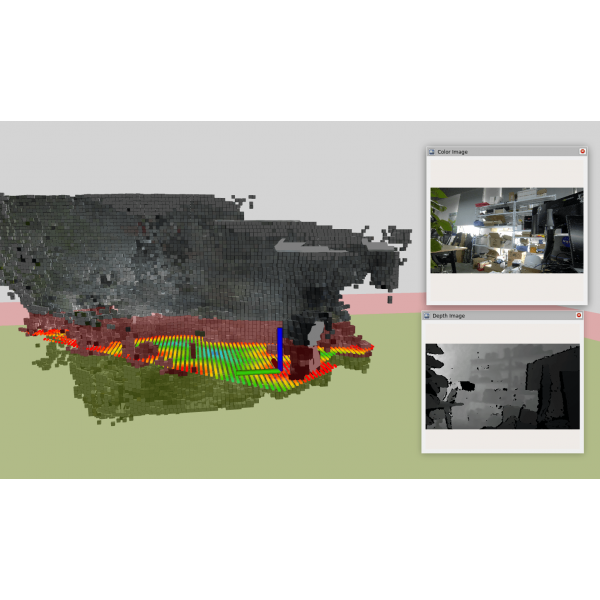

• Multi-sensor Fusion for Autonomous Mapping & Navigation
• Designed for Demanding AI Applications

Spesifikasi:

• Product: reComputer Robotics J5011 with GMSL Extension
• Storage: 2x M.2 Key M slot (1x 128G SSD included)
• Networking: 1x M.2 Key E slot for WiFi/Bluetooth module dan 1x M.2 Key B slot for 4G/5G module
• I/O:
• USB: 3x USB 3.0 Type-A (5Gbps); 1x USB 3.0 Type-C (Recovery); 1x USB 2.0 Type-C (Debug);

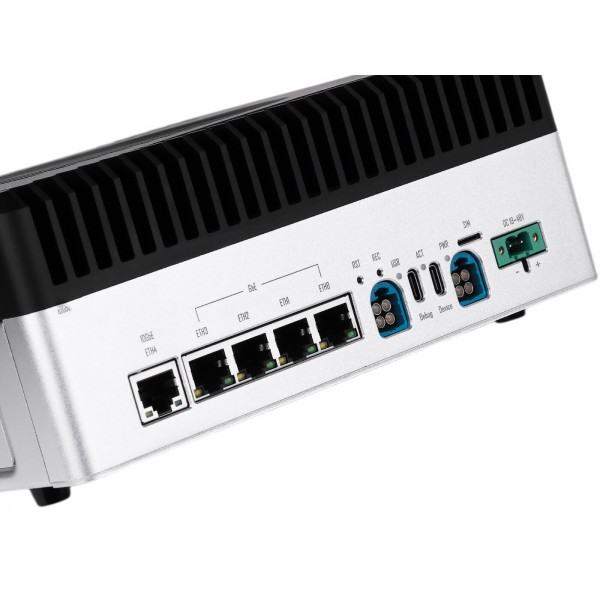

• RJ45: 4x 1G Ethernet, 1x 10G Ethernet
• GMSL: 8x GMSL2 (MAX96712 as deserializer)
• CAN: 4x CAN （CAN-FD supported)

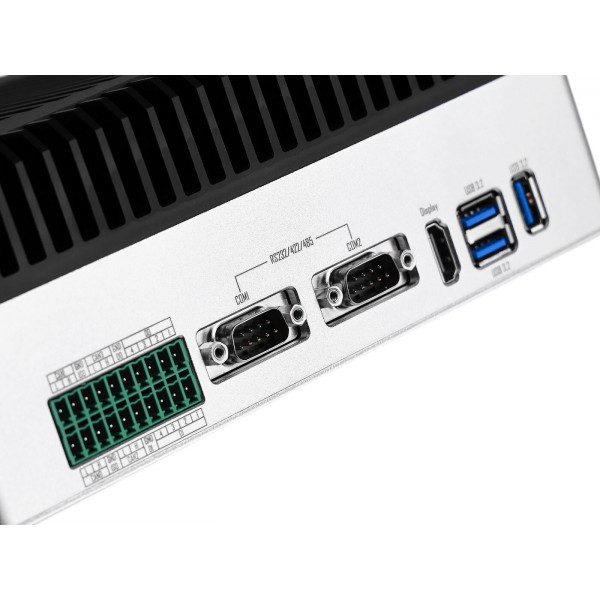

• Serial: 2x RS-232/422/485
• DI/DO: 4x DI 4x DO
• IO: 1x SPI 1x I2C 1x I2S
• Display: 1x HDMI 2.1

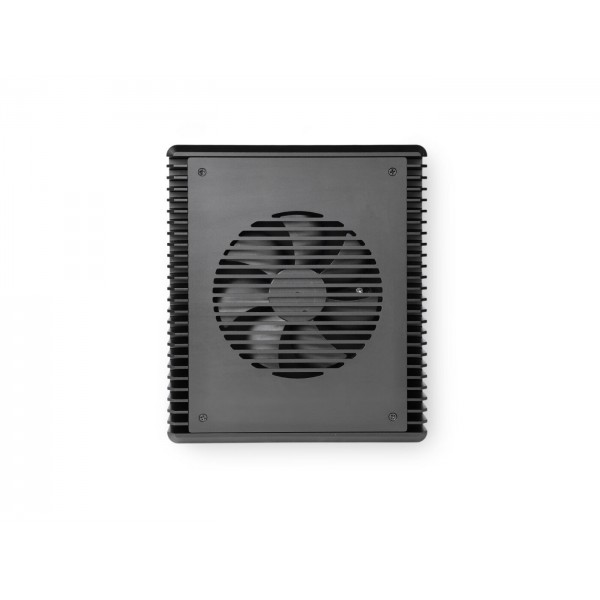

• Fan: 1x 4-pin Fan Connector (12V PWM)
• Button: 1x Reset Button; 1x Recovery Button
• RTC: 1x RTC 2-pin 1x RTC socket
• Power: DC 19V ~ 48V Terminal Block 2-pin
• Operating Temperature: -10°C ~ +60°C
• Installation: Desk, Wall-Mounting

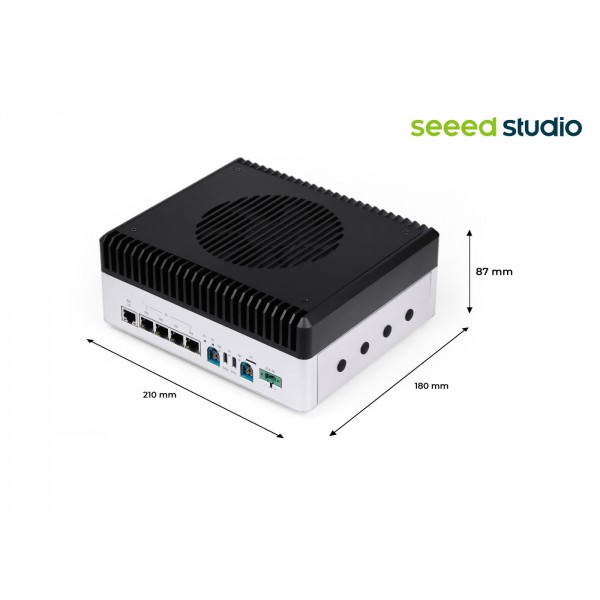

• Dimensi: 210 x 180 x 87mm (with stands)

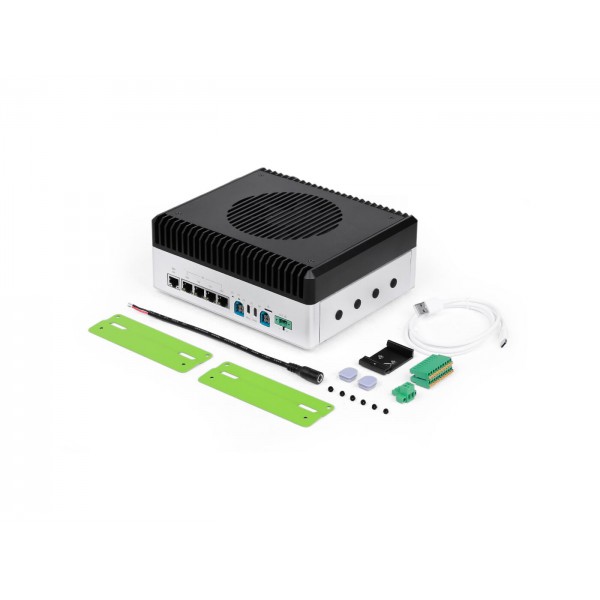

Paket Penjualan:

1x reComputer Robotics J501
1x AGX Orin 32GB
1x 128GB SSD
1x Terminal Block to DC Power Cable
1x USB Type-C to Type-A Cable
2x Panel Mount
1x DIN Rail

Dokumen:

1. Datasheet (Link)
2. Flash BSP for Jetso (Link)
3. NVIDIA Jetson Comparison (Link)
4. [Wiki] Robotics J501 Hardware and Getting Started (Link)
