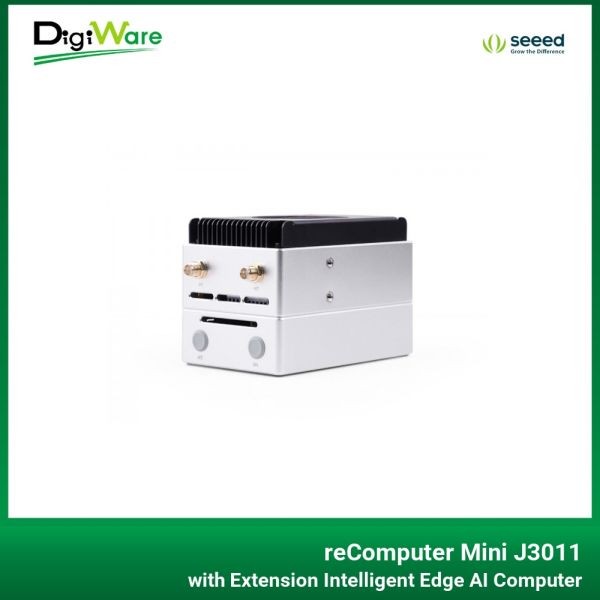

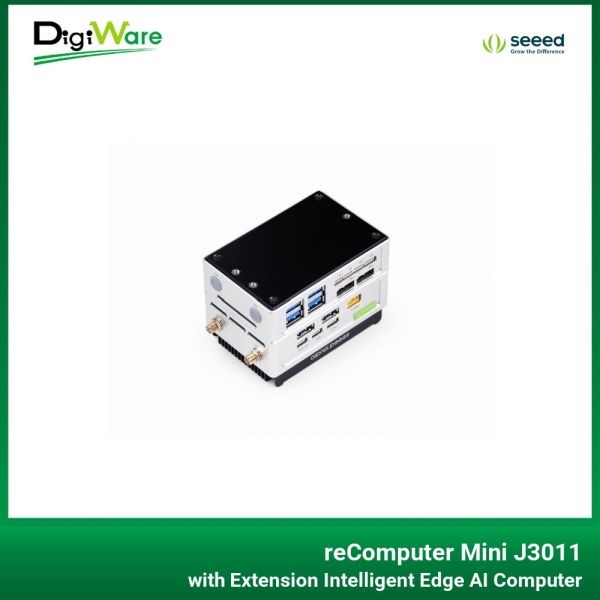

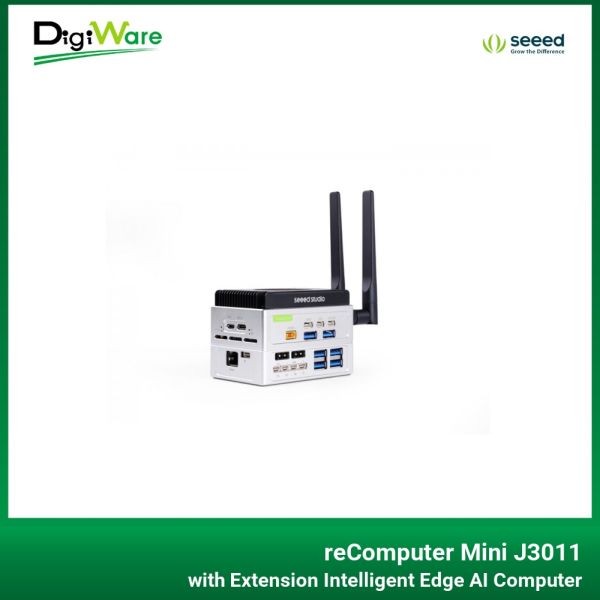

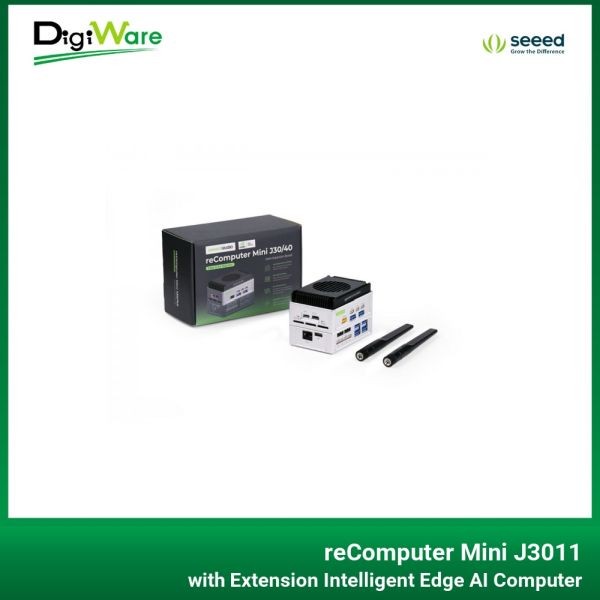

reComputer Mini J3011 with Extension Intelligent Edge AI Computer with NVIDIA Jetson Orin Nano 8GB

reComputer Mini J3011 with Extension Intelligent Edge AI Computer merupakan komputer mini AI yang dirancang untuk kebutuhusan sistem embedded dan mesin otonom berbasis AI.

Komputer ini ditenagai oleh NVIDIA Jetson Orin Nano yang memiliki performa AI hingga 40 TOPS dan memori data runtime (RAM) sebesar 8GB. Perangkat ini sangat cocok diintegrasikan pada sistem otonom seperti drone, robot pengantar, dan mesin otonom lainnya.

Fitur:

• Brilliant AI Performance for Production
• Hand-Size Edge AI Device
• Expandable with Rich I/O
• Accelerate Solutions to Market: Pre-installed JetPack 6.0 on 128GB NVMe SSD
• Scale to Deply: support OTA, remote management services
• Flexible Customization

Aplikasi:

• Robotic Control
• Capable of Bringing Generative AI to the Edge

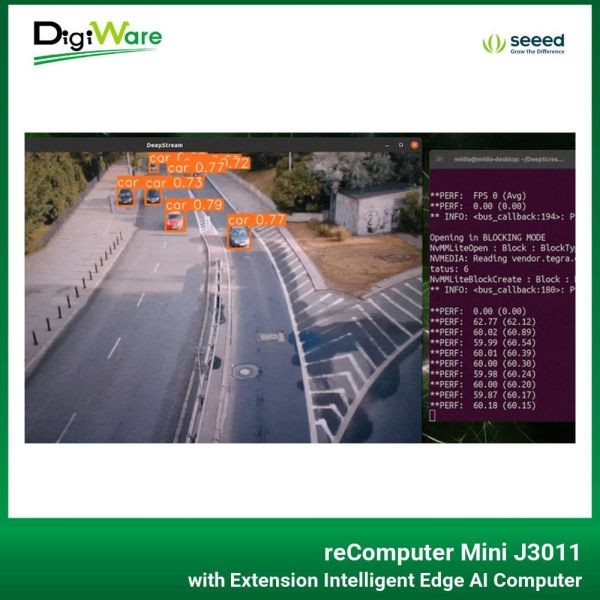

• Build Multi-streams AI Video Analytics
• Fastest Way to Deploy Generative AI and Computer Vision Models

Spesifikasi:

Jetson Orin System on Module:

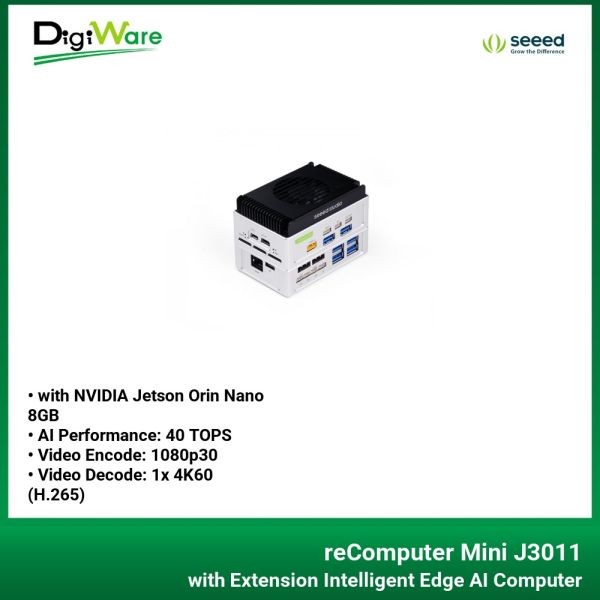

• AI Performance: reComputer Mini J3011 - Orin Nano 8GB - 40 TOPS
• GPU: 1024-core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
• CPU: 6-core ARM Cortex-A78AE (Orin Nano 8GB)
• Memory: 8GB 128-bit LPDDR5
• Video Encode: 1080p30 Supported by 1-2 CPU Cores
• Video Decode: 1x 4K60 (H.265), 2x 4K30 (H.265), 5x 1080p60 (H.265), 11x 1080p30 (H.265)

Carrier Board:

• Storage: 1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128GB Included)
• Networking: 1x M.2 Key E for WiFi/Bluetooth Module

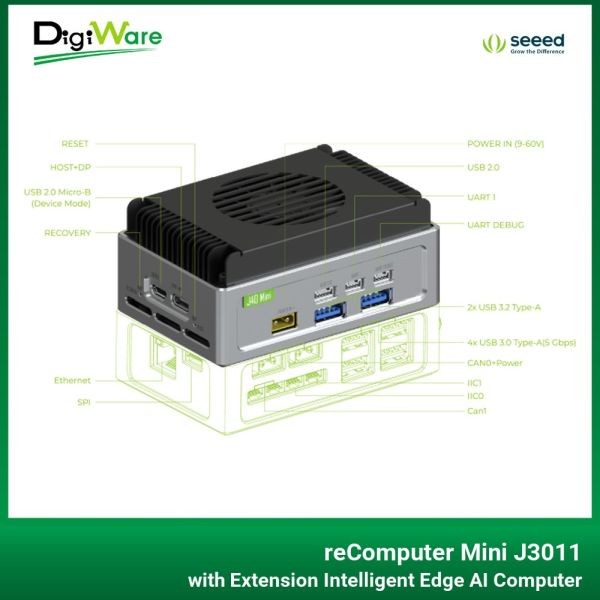

• I/O:
• USB: 2x USB 3.2 Type-A (10 Gbps), 1x USB 2.0 Micro-B (Device Mode), 1x USB 3.2 Type-C (Host Mode), 1x USB 2.0 JST-5pin (Host Mode)
• UART: 1x UART, 1x Debug UART
• Display: 1x DP 1.4
• Fan: 1x 4pin Fan Connector (5V PWM)
• Button: 1x Reset Button, 1x Recovery Button
• Extension Port: 2x 60pin High Speed Connector (For Extension Board), 1x 10pin Power Connector (For Extension Board)
• RC: 1x RTC 2-pin
• Power: 1x XT30 Connector (12-54VDC)

Extension Board:

• Networking:
• Ethernet: 1x RJ-45 Gigabit Ethernet (10/100/1000M)
• I/O:
• USB: 4x USB 3.0 Type-A (5 Gbps)
• CAN (Providing Power): 2x XT30 (2+2) (CAN0), 2x JST (CAN1)
• FAN: 1x4pin Fan Connector (5V PWM)
• I2C: 2x I2C JST 4pin (3.3V)
• SPI: 1x SPI JST 6pin (3.3V)
• Operating Temperature: -10°C ~ +50°C
• Installation: Desk, Wall-Mounting
• Mechanical: 63 x 95 x 66.7mm

Dokumen:

1. Datasheet (Link)
2. [Wiki] Getting Started with reComputer Mini (Link)
3. [Wiki] reComputer Mini Hardware and Interface Usage (Link)
