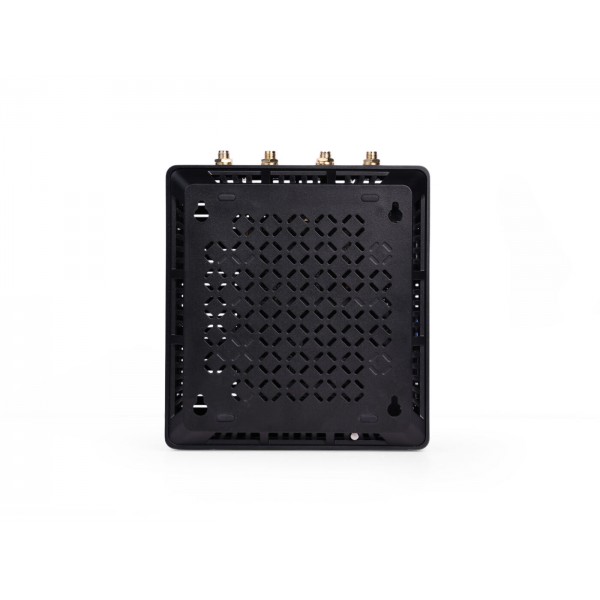

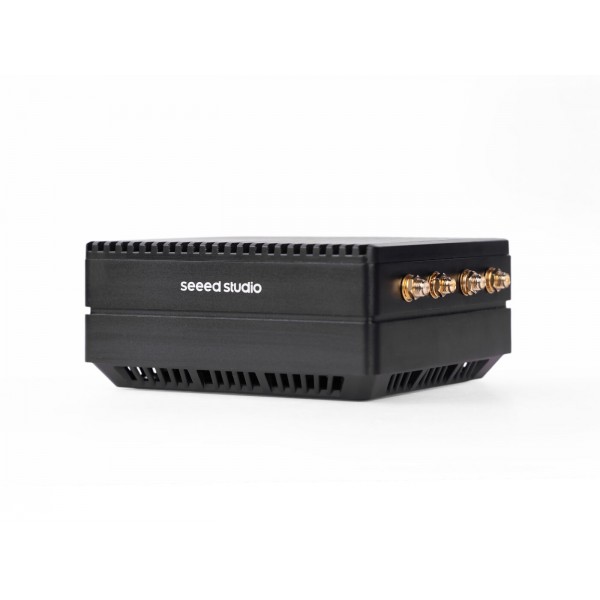

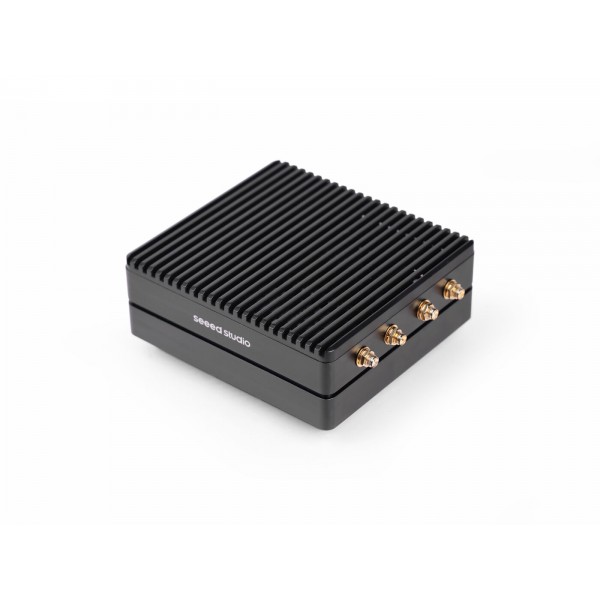

reComputer J4011B Edge AI Device NVIDIA Jetson Orin NX 8GB Module Pre-installed JetPack on 128GB NVMe SSD WiFi BT LTE

reComputer J4011B merupakan perangkat komputer mini berbasis NVIDIA Jetson Orin NX 16GB yang dirancang untuk pengembangan AI Edge Computing. Perangkat ini mengombinasikan performa komputasi AI tinggi dengan form fact kompak, ideal untuk aplikasi embedded vision, robotika, dan IoT cerdas.

Fitur Utama:

• Performa AI Tinggi hingga sampai 100 TOPS (INT8)
• GPU 1024-core NVIDIA Ampere dengan 16 Tensor Cores
• Design for Both Development and Production
• Support WiFi, BT, LTE
• Pre-installed JetPack 5.1.3
• Rich Interfaces: 2x USB 3.2, HDMI, Ethernet, M.2 Key M, M.2 Key E, mini-PCIe, 40 Pin GPIO, etc

Aplikasi:

• Smart Lamppost
• EV Battery Swapping/Charging System
• Visi Komputer
• Generative AI (LLM)
• Smart Recycling Center
• Robotics

Spesifikas Umum:

• Product Series: reComputer J4011B
• Power Supply: DC 9 ~ 19V Via 5525 DC Jack
• Module: Jetson Orin NX 8GB
• AI Performance: 70 TOPS
• GPU: 1024-core NVIDIA Ampere Architectire GPU with 16 Tensor Cores
• GPU Max Frequency: 765 MHz
• CPU: 6-core ARM Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
• CPU Max Frequency: 2 GHz
• Memory: 8GB 128-bit LPDDR5 102.4 GB/s
• DL Accelerator: 1x NVDLA v2
• DLA Max Frequency: 614 MHz
• Vision Accelerator: 1x PVA v2
• Storage: Pre-installed 128GB NVMe SSD
• Video Encoder: 1x 4K60 (H.265), 3x 4K30 (H.265), 6x 1080p60 (H.265), 12x 1080p30 (H.265)
• Display: 1x HDMI 2.1

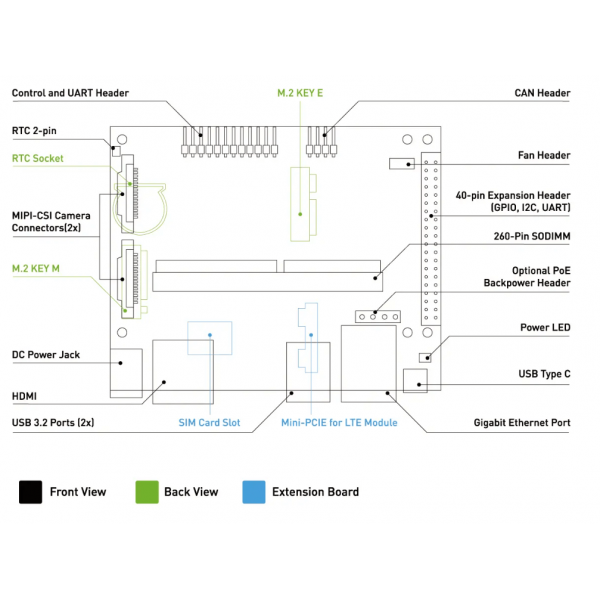

Spesifikasi Interfaces:

• CSI: 2x CSI (2-lane 15 pin)
• Networking: 1x Gigabit Ethernet (10/100/1000M)
• USB: 2x USB 3.2 Type-A (10 Gbps); 1x USB 2.0 Type-C (Device Mode)
• M.2 Key M: 1x M.2 Ket M for SSD
• M.2 Key E: 1x M.2 Key E for WiFi Module
• mini-PCIe: 1x minic-PCIe for LTE Module
• Fan: 1x JTS 4 pin Fan Connector (5V PWM)
• CAN: 1x CAN
• Multifunctional Port: 1x 40 Pin Expansion Header
• RTC: RTC 2-pin, RTC socket (supports CR1220)

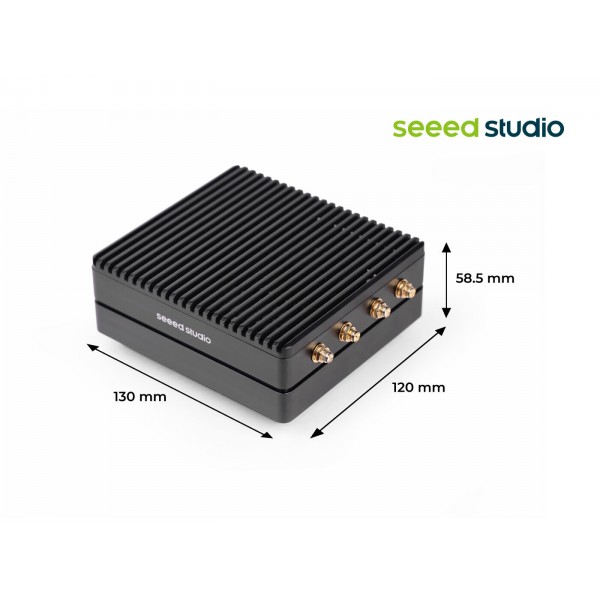

• Dimensi: 130 x 120 x 58.5mm

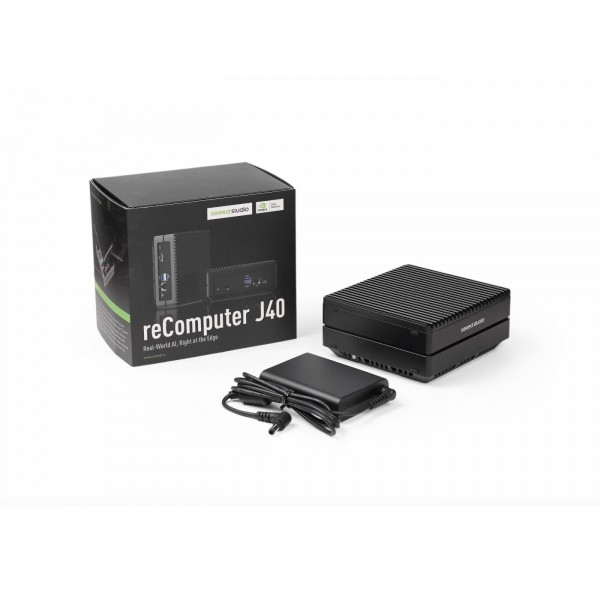

Paket Penjualan:

1x NVIDIA Jetson Orin Module

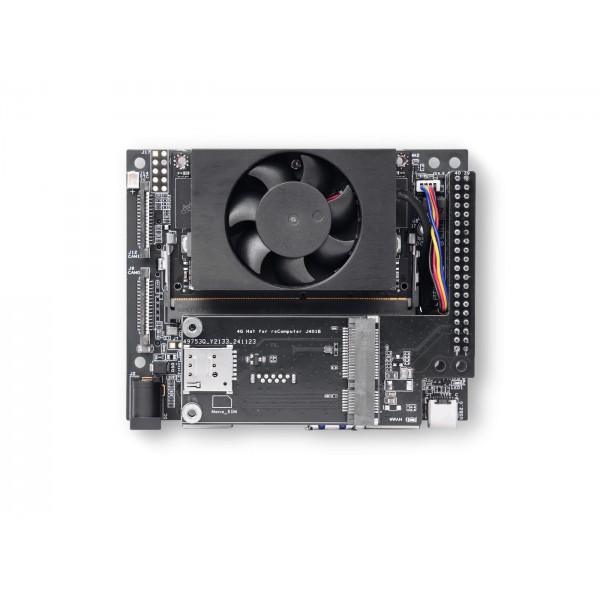

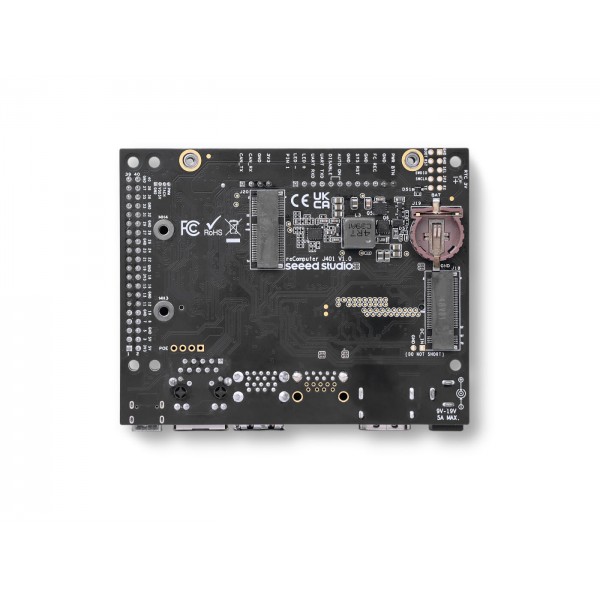

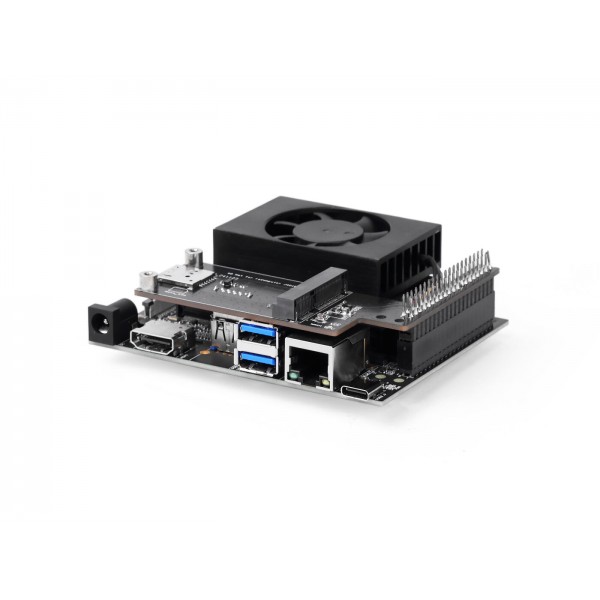

1x Seeed Carrier Board
1x 128GB NVMe SSD
1x Aluminum Heatsink with Fan

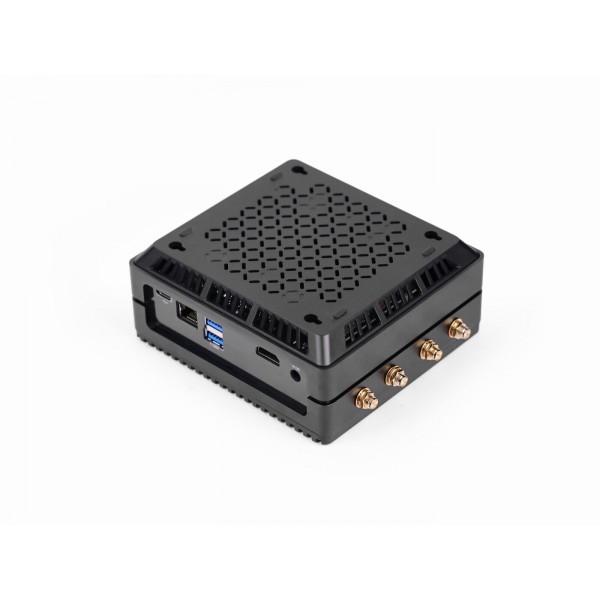

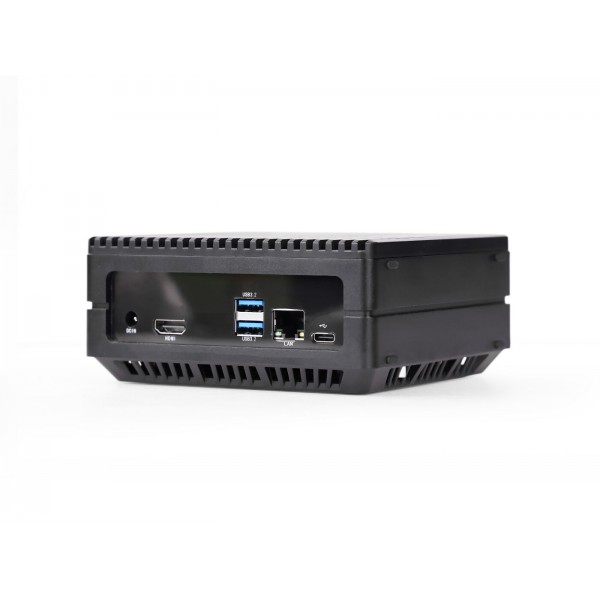

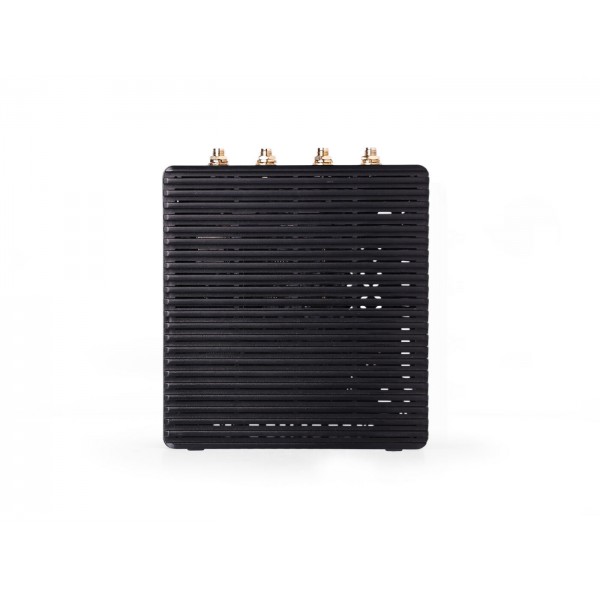

1x Aluminum Case (Black)
1x Power Adapter (12V/5A)

Perhatian:  Tidak termasuk modul WiFi dan LTE.

Dokumen:

1. Datasheet (Link)
2. [Wiki] Getting Start with reComputer J401B (Link)
2. [Wiki] J401B Interfaces Usage (Link)
