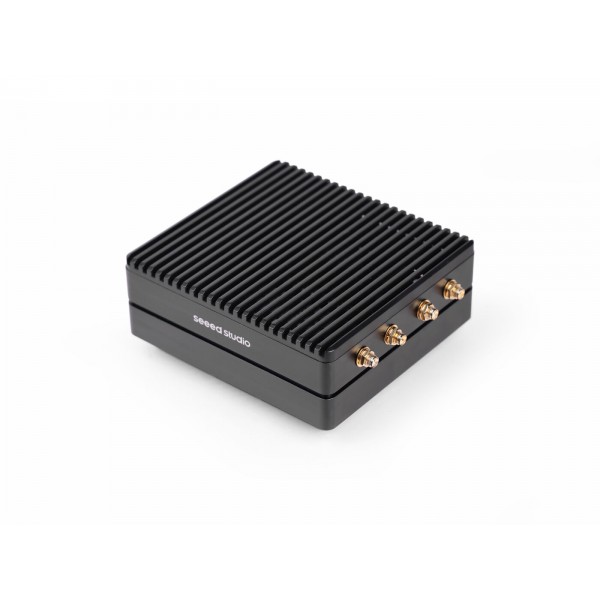

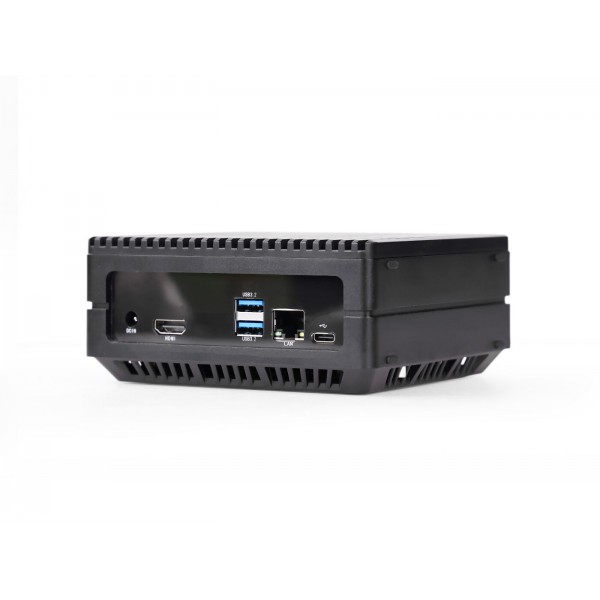

reComputer J3011B Edge AI Device NVIDIA Jetson Orin Nano 8GB 128RAM NVMe SSD WiFi BT LTE Aluminum Case

reCompyer J3011B merupakan komputer mini berbasis NVIDIA Jetson Orin Nano 8GB yang dirancang khusus untuk pengembangan AI Edge Computing dan aplikasi IoT cerdas. Perangkat ini memiliki performa komputasi AI yang kuat dengan konsumsi daya rendah.

Fitur Utama:

• Performa AI Tinggi hingga sampai 67 TOPS
• GPU 1024-core NVIDIA Ampere dengan 16 Tensor Cores
• Design for Both Development and Production
• Support WiFi, BT, LTE
• Pre-installed JetPack 5.1.3
• Rich Interfaces: 2x USB 3.2, HDMI, Ethernet, M.2 Key M, M.2 Key E, mini-PCIe, 40 Pin GPIO, etc

Aplikasi:

• Smart Lamppost
• EV Battery Swapping/Charging System
• Visi Komputer
• Generative AI (LLM)
• Smart Recycling Center
• Robotics

Spesifikasi Umum:

• Product Series: reComputer J3011B
• Power Supply: DC 9 ~ 19V via 5525 DC Jack
• Module: Jetson orin Nano 8GB
• AI Performance: Up to 67 TOPS (Under Super Mode)
• GPU: 1024-core NVIDIA Ampere Architecture GPU with 16 Tensor Cores
• GPU Max Frequency: 625 MHz
• CPU: 6-core ARM Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
• CPU Max Frequency: 1.5GHz
• Memory: 8GB 128-bit LPDDR5 68 GB/s
• Storage: Pre-installed 128GB NVMe SSD
• Video Encoder: 1080p30 Supported by 1-2 CPU Cores
• Video Decoder: 1x 4K60 (H.265), 2x 4K30 (H.265), 5x 1080p60 (H.265), 11x 1080o30 (H.265)

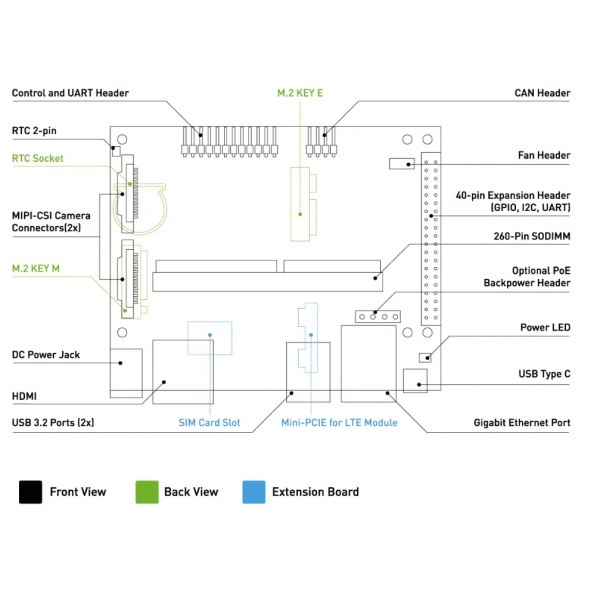

Spesifikasi Interfaces:

• Display: 1x HDMI 2.1
• CSI: 2x CSI (2-lane 15pin)
• Networking: 1x Gigabit Ethernet (10/100/1000M)
• USB: 2x USB 3.2 Type-A (10Gbps); 1x USB 2.0 Type-C (Device Mode)
• M.2 Key: 1x M.2 Key M for SSD, 1x M.2 Key E for WiFi Module
• mini-PCIe: 1x mini-PCIe for LTE Module
• Fan: 1x JST 4pin Fan Connectors (5V PWM)
• CAN: 1x CAN
• Multifunctional Port: 1x 40-pin Expansion Header; 1x 12-pin Contgrol and UAR Header
• RTC: RTC-2pin, RTC Socket (supports CR1220)

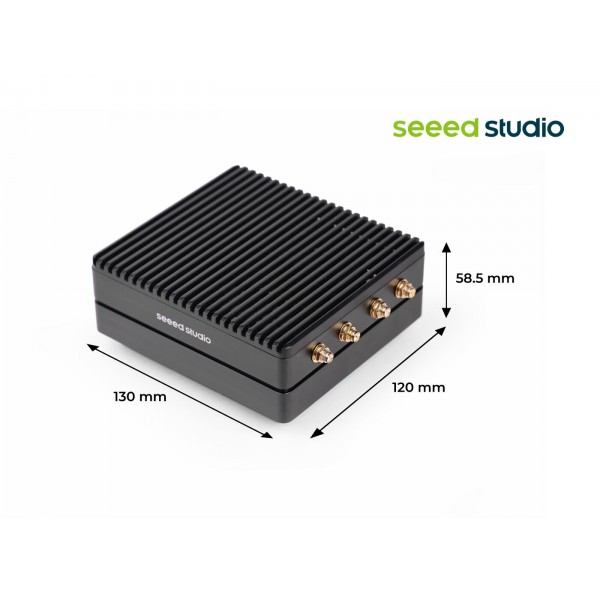

• Dimensi: 130 x 120 x 58.5mm

Paket Penjualan:

1x NVIDIA Jetson Orin Module

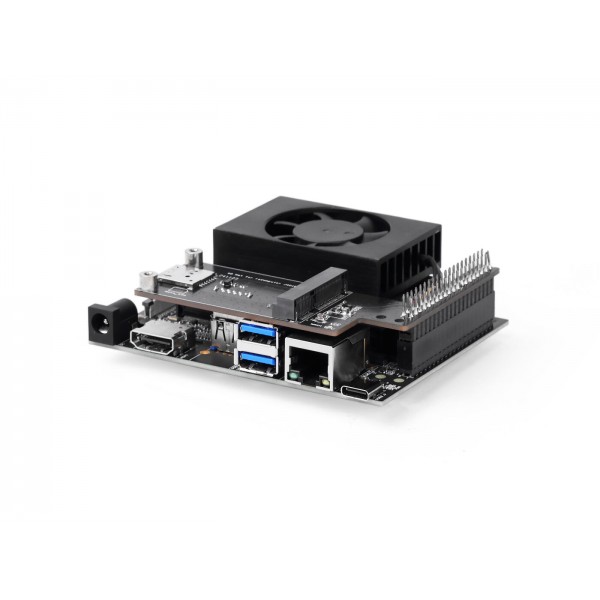

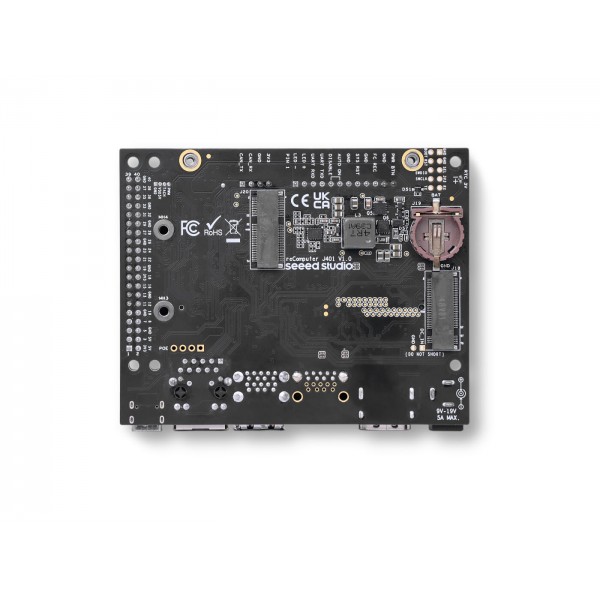

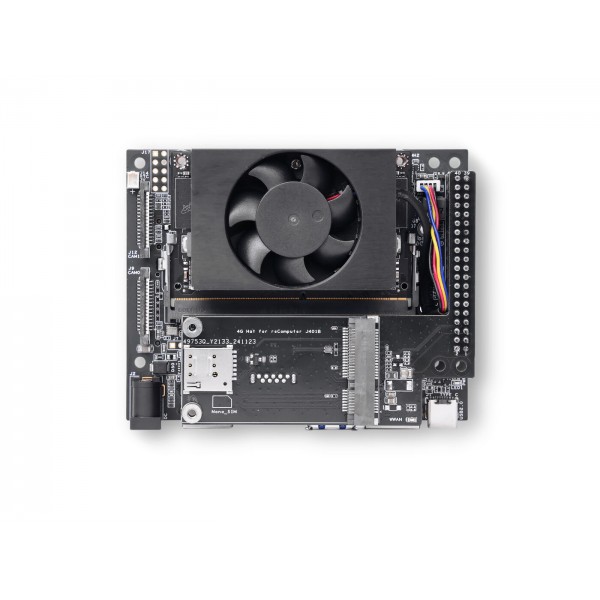

1x Seeed Carrier Board
1x 128GB NVMe SSD
1x Aluminum Heatsink with Fan

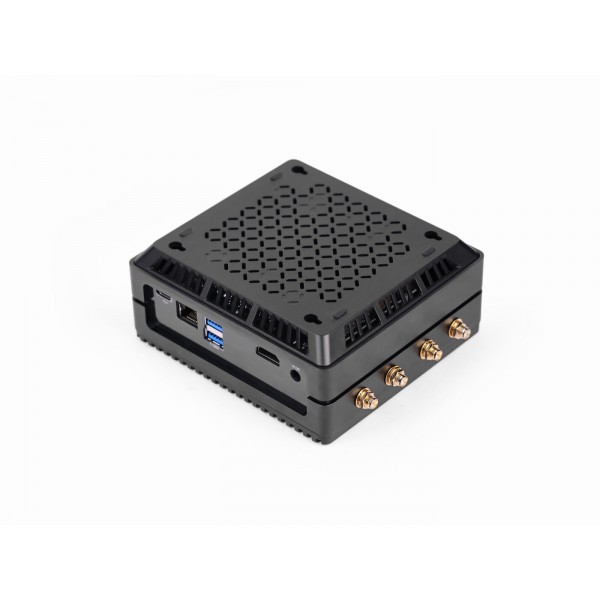

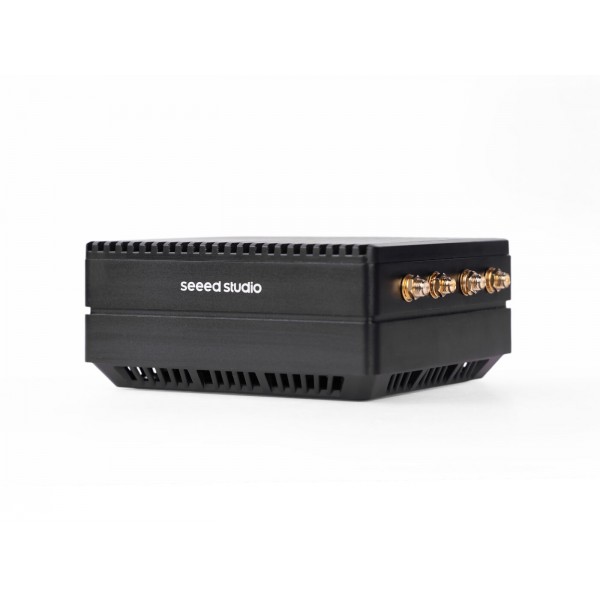

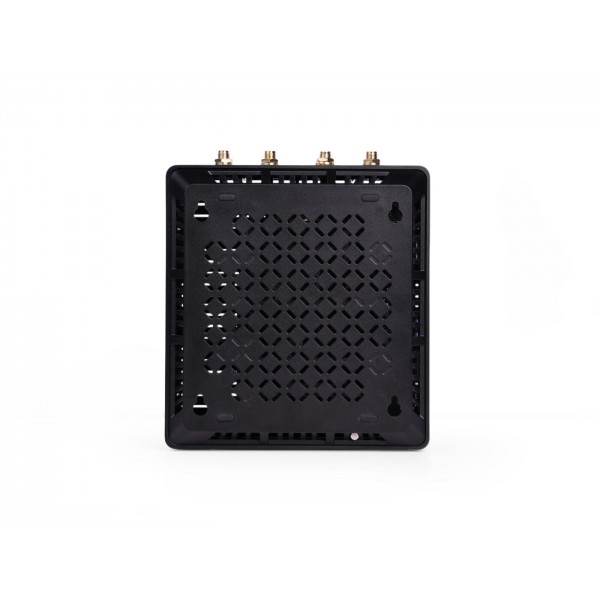

1x Aluminum Case (Black)
1x Power Adapter (12V/5A)

Perhatian: Tidak termasuk modul WiFi dan LTE.

Dokumen:

1. Datasheet (Link)
2. [Wiki] J401B Interfaces Usage (Link)
3. [Wiki] Getting Start with reComputer J401B (Link)
