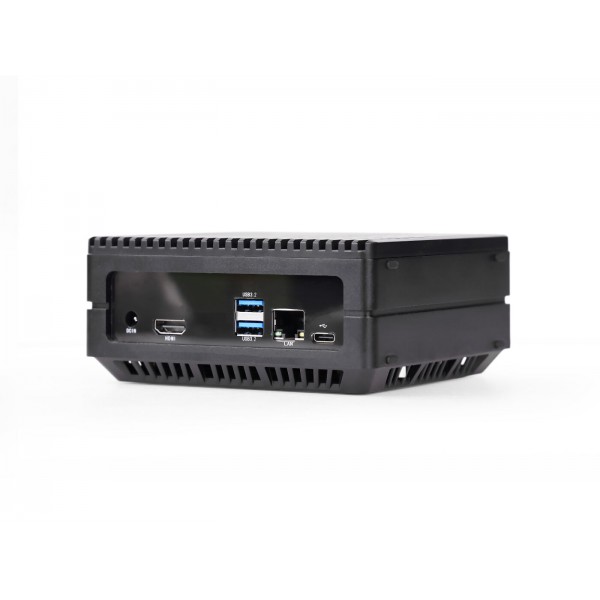

reComputer J3010B Edge AI Device NVIDIA Jetson Orin Nano 4GB RAM 128GB NVMe SSD WiFi BT LTE Aluminum Case

reComputer J3010B merupakan komputer mini berbasis NVIDIA Jetson Orin Nano 4GB yang dirancang untuk pengembangan AI Edge Computing dan aplikasi IoT cerdas dengan harga terjangkau.

Fitur Utama:

• Pre-installed JetPack 5.1.3
• GPU 512-core NVIDIA Ampere dengan 16 Tensor Cores
• Performa AI Tinggi hingga 34 TOPS (Under Super Mode)
• Design for Both Development and Production
• Support WiFi, BT, LTE
• Rich Interfaces: 2x USB 3.2, HDMI, Ethernet, M.2 Key M, M.2 Key E, mini-PCIe, 40 Pin GPIO, etc

Aplikasi:

• Smart Lamppost
• EV Battery Swapping/Charging System
• Visi Komputer
• Generative AI (LLM)
• Smart Recycling Center
• Robotics

Spesifikasi Umum:

• Product Series: reComputer J3010B
• Power Supply: DC 9 ~ 19V via 5525 DC Jack
• Module: Jetson Orin Nano 4GB
• AI Performance: 34 TOPS (Under Super Mode)
• GPU: 512-core NVIDIA Ampere Architecture GPU with 16 Tensor Cores
• GPU Max Frequency: 625 MHz
• CPU: 6-core ARM Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
• CPU Max Frequency: 1.5GHz
• Memory: 4GB 64-bit LPDDR5 34 GB/s
• Storage: Pre-installed 128GB NVMe SSD
• Video Encoder: 1080p30 supported by 1-2 CPU Cores
• Video Decoder: 1x 4K60 (H.265), 2x 4K30 (H.265), 5x 1080p60 (H.265), 11x 1080p30 (H.265)

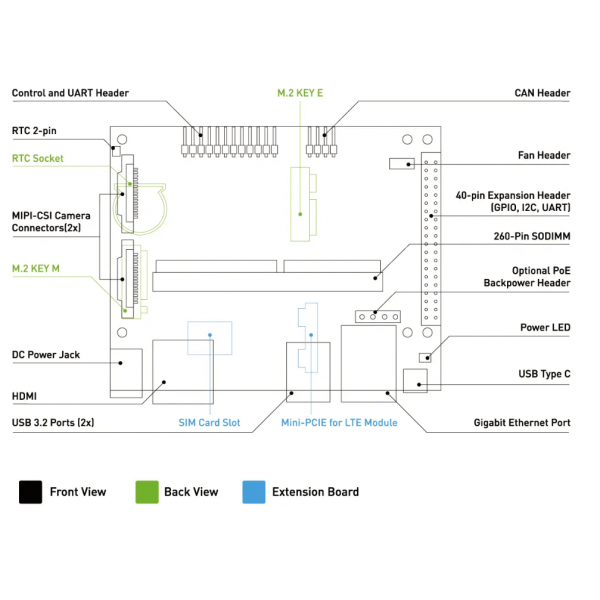

Spesifikasi Interfaces:

• Display: 1x HDMI 2.1
• CSI: 2x CSI (2-lane 15pin)
• Networking: 1x Gigabit Ethernet (10/100/1000M)
• USB: 2x USB 3.2 Type-A (10Gbps); 1x USB 2.0 Type-C (Device Mode)
• M.2 Key M: 1x M.2 Key M for SSD
• M.2 Key E: 1x M.2 Key E for Wifi-Module
• mini-PCIe: 1x mini-PCIe for LTE Module
• Fan: 1x JST 4pin Fan Connector (5V PWM)
• CAN: 1x CAN
• Multifunctional Port: 1x 40-pin Expansion Header, 1x 12-pint Control and UART Header
• RTC: RTC 2-pin, RTC Socket (supports CR1220)

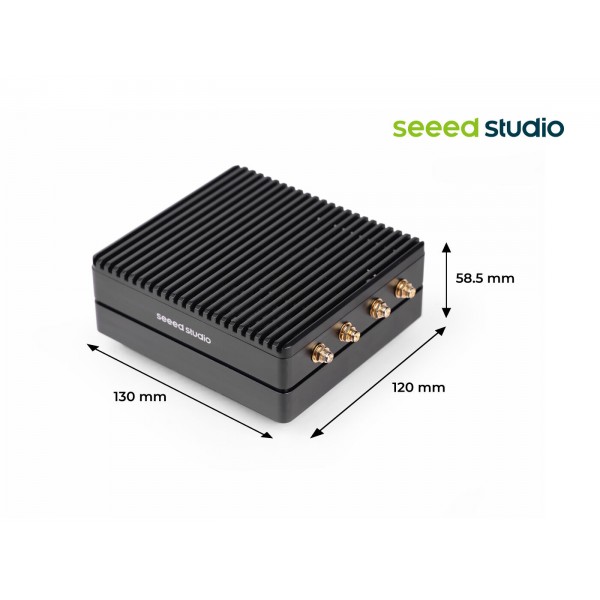

• Dimensi: 130 x 120 x 58.5mm

Paket Penjualan:

1x NVIDIA Jetson Orin Module

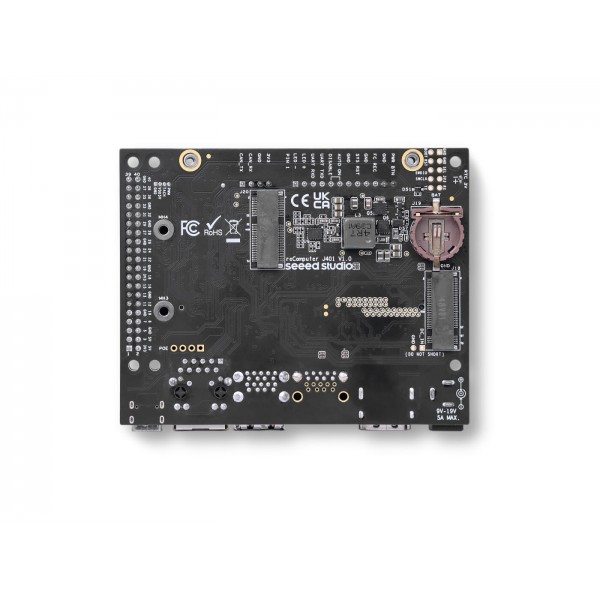

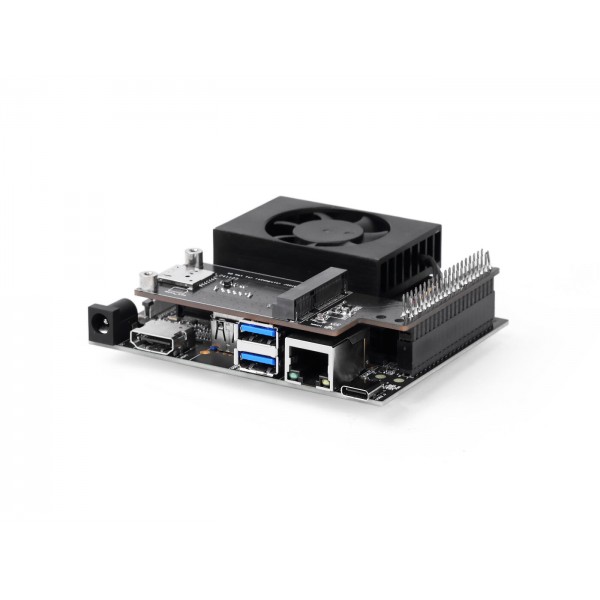

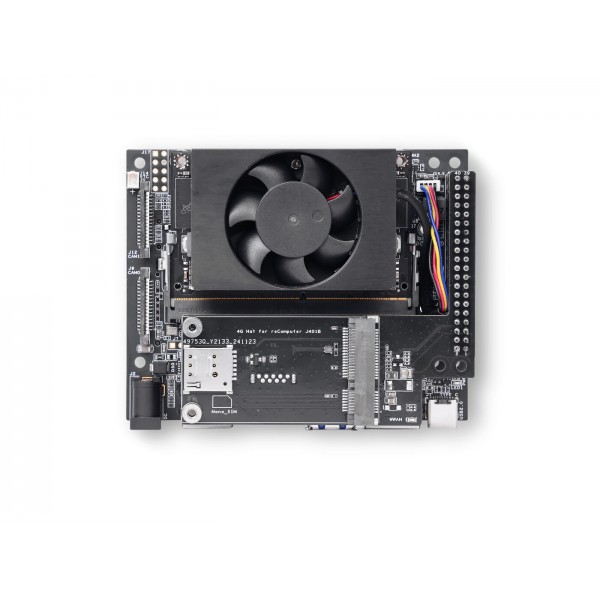

1x Seeed Carrier Board
1x 128GB NVMe SSD
1x Aluminum Heatsink with Fan
1x Aluminum Case (Black)
1x Power Adapter (12V/5A)

Perhatian: Belum termasuk modul WiFi dan LTE.

Dokumen:

1. Datasheet (Link)
2. [Wiki] J401B Interfaces Usage (Link)
3. [Wiki] Getting Start with reComputer J401B (Link)
