SenseCAP Watcher for XiaoZhi

SenseCAP Watcher for XiaoZhi merupakan perangkat asisten pintar interaktif berbasis AI dari Seeed Studio. Perangkat ini mampu melihat, mendengar, dan berbicara, memanfaatkan model Large Language Models (LLM) dan teknologi AI untuk memahami konteks, mendeteksi lingkungan serta berinteraksi secara natural dengan penggunanya.

Fitur:

• 20+ Global Language Support

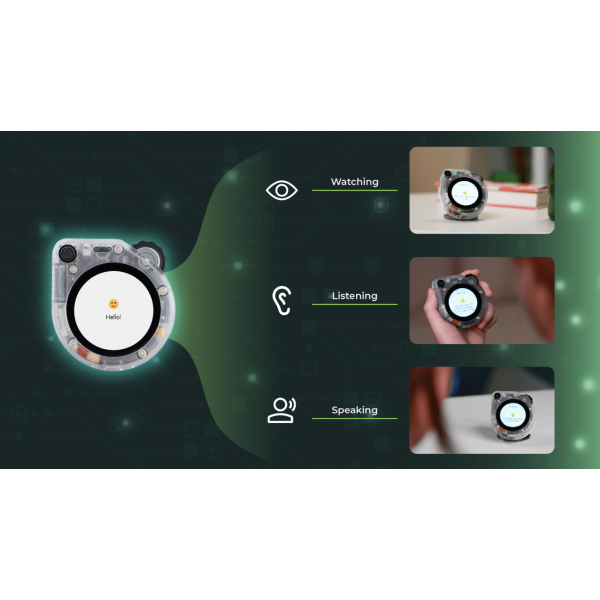

• Visual Auditory Speech Interaction
• MCP (Model Context Protocol) Integration
• Smart Space Assistant
• Open Interfaces Limitless Exploration
• Support Various Mounting Methods

Aplikasi:

• Smart Home Automation
• Education & Tutoring
• Business & Customer Interaction
• Daily Chatbot Companion
• Dan lain sebagainya

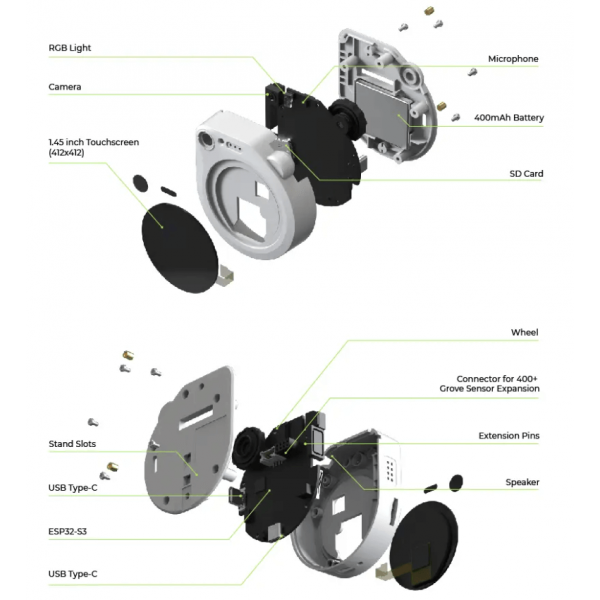

Spesifikasi:

• Mikrokontroler: ESP32-S3 @240MHz 8MB PSRAM
• Built-in AI Processor: Himax HX6538 (Cortex M55 + Ethos-U55)
• Camera: OV5647 120° FOV (Fixed Focal 3 meters)
• WiFi: IEEE 802.11b/g/n-compliant 2.4GHz Band
• Bluetooth LE: Bluetooth 5
• Antenna: Built-in WiFi and BLE antenna

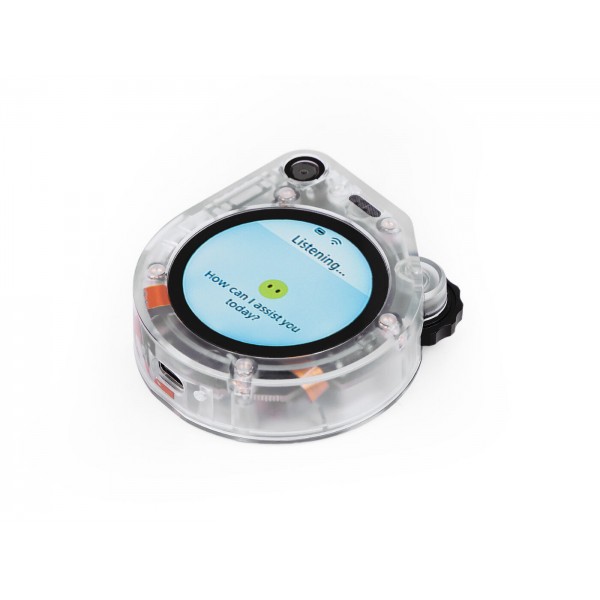

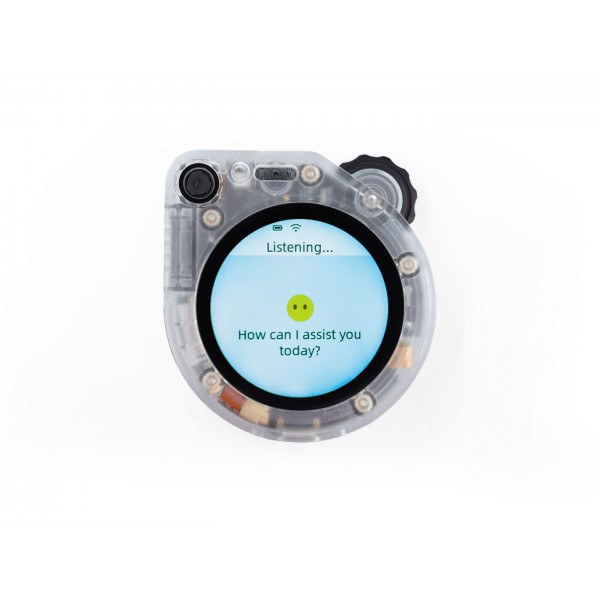

• Display: Touchscreen with 1.45 inch, 412 x 412 Resolution
• Microphone: Single Microphone
• Speaker: 1W Speaker Output
• Wheel: Supports scrolling Up & Down and Button
• LED: 1xRGB Light for Indication
• microSD Card Slot: Supports up to 32GB FAT32 microSD card
• Flash: 32MB Flash for ESP32-S3. 16MB Flash for Himax HX6548

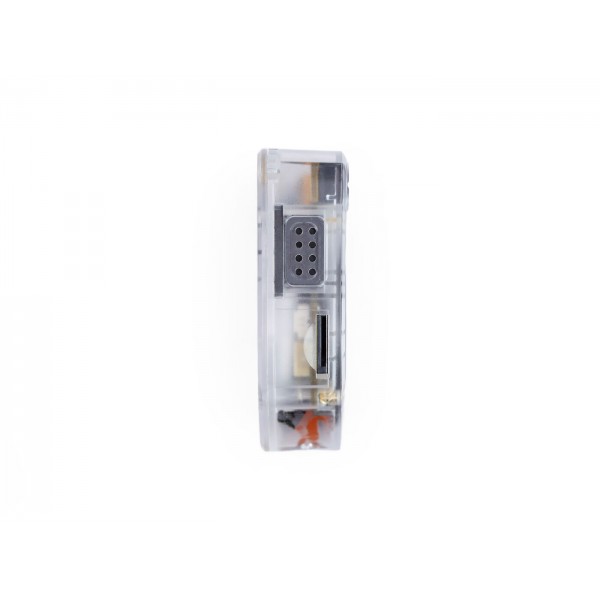

• Extension Interface: 1x Grove IIC Interface, 2x4 Female Header (1x IIC, 2x GPIO, 2x GND, 1x3.3V_OUT, 1x5V_IN)

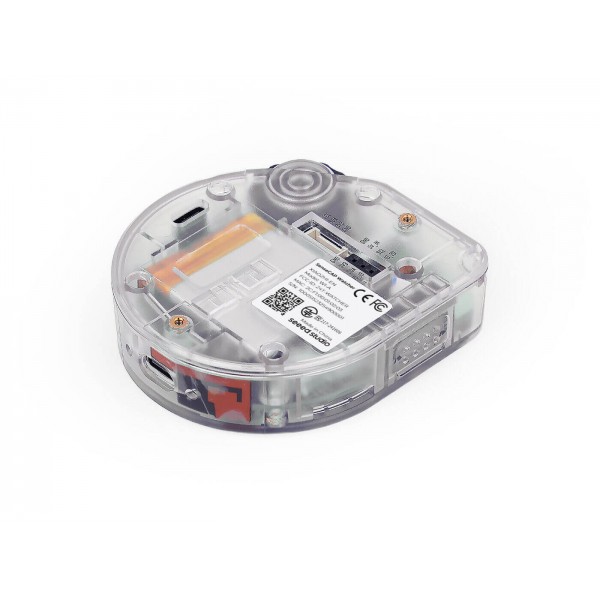

• USB-C: 1x USB-C on the back (Power Supply Only), 1x USB-C on the bottom (Power Supply and Programming)
• Reset Button: 1x RST Button in the bottom hole
• Power Supply: 5V DC Power
• Battery: 3.7V 400mAh Li-ion Battery as backup power
• Operating Temperature: 0 ~ 45°C

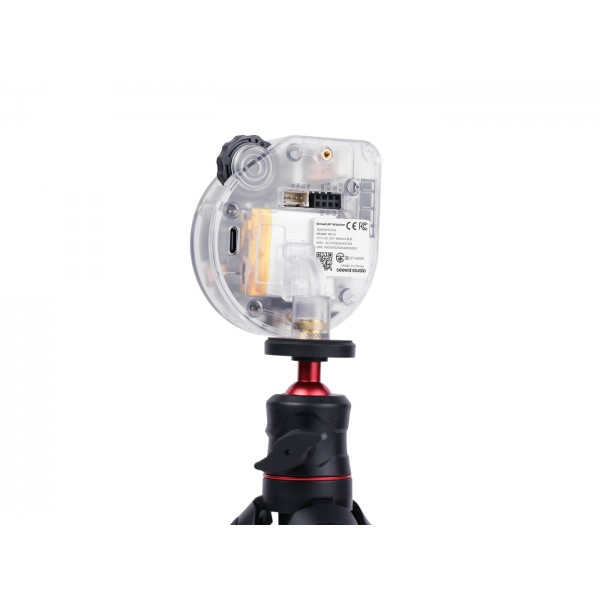

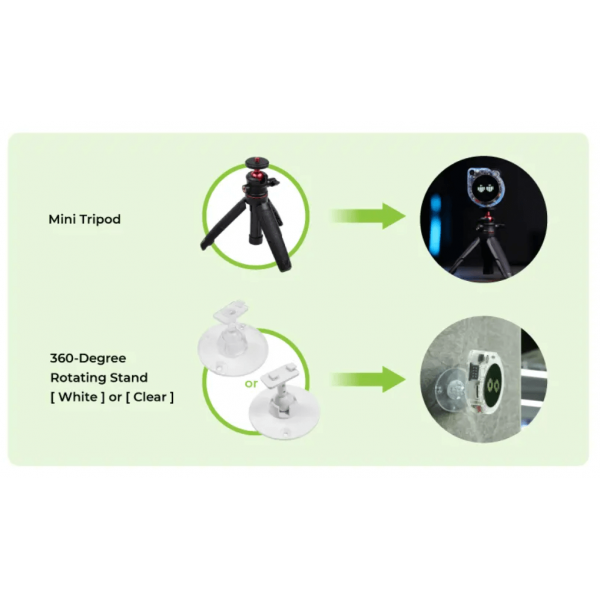

• Mounting Bracket:

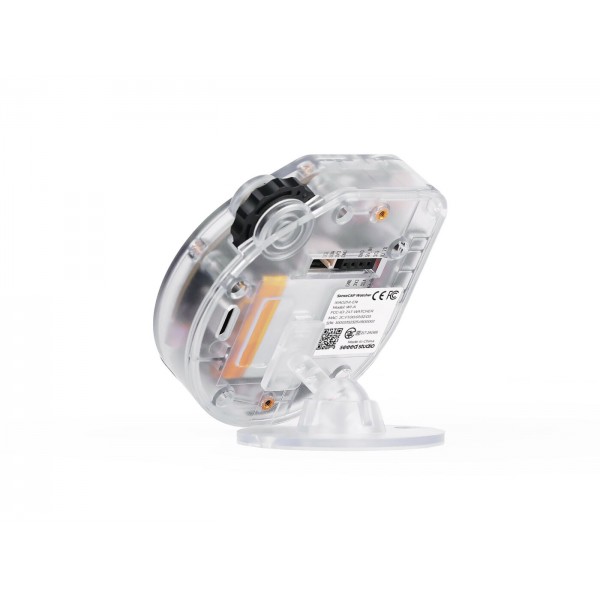

• Supports wall, desktop and bracket installation
• 1x Universal wheel and base plate with adhesive
• 1x 1/4" Female adapter set

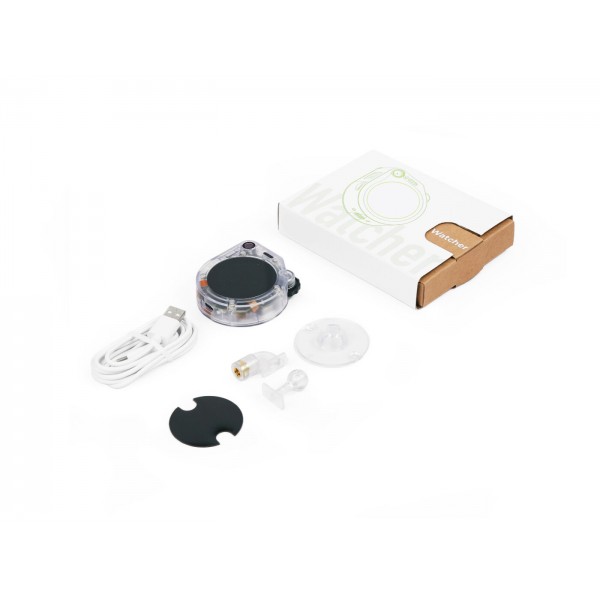

Paket Penjualan:

1x Watcher
1x Universal wheel and base plate with adhesive
1x 1/4" Female adapter set
1x USB Type-C Cable
2x 3*10mm screw

Dokumen:

1. [Wiki] Device Network Setup Guide
